76 M’Ax User Guide
Issue Number: 4
Appendix A Signal Connectors
Isolation
All the signal connections are isolated from the
powercircuits by basic insulation only. Ensure that all
external control circuits are separated from human
contact by at least one layer of insulation rated for use
at the AC supply voltage.
A.1 Cables and connectors
RJ45 connectors
For connection to the following connectors on the Drive...
•SLM
•MC
• MULTIDROP OUT
• MULTIDROP IN/PC
... use the following:
Cables
Up to four twisted-pairs having an overall braided shield (unused
wires must not be connected to pins at the other end)
Maximum length: 50m (165ft)
Maximum diameter: 5.7mm (
7
/
32
in)
Characteristic impedance (recommended): 100
Ω ±15%
Static installations: for example, use BICC type
S-FTP patch,four
twisted pairs, 5.33mm diameter
Dynamic installations: for example, use Intercond type
3MBM 26P
02P,
2 twisted pairs, 5.5mm diameter
Connectors
Shielded 8-way RJ45 plugs (e.g. Stewart Connectors 36 series)

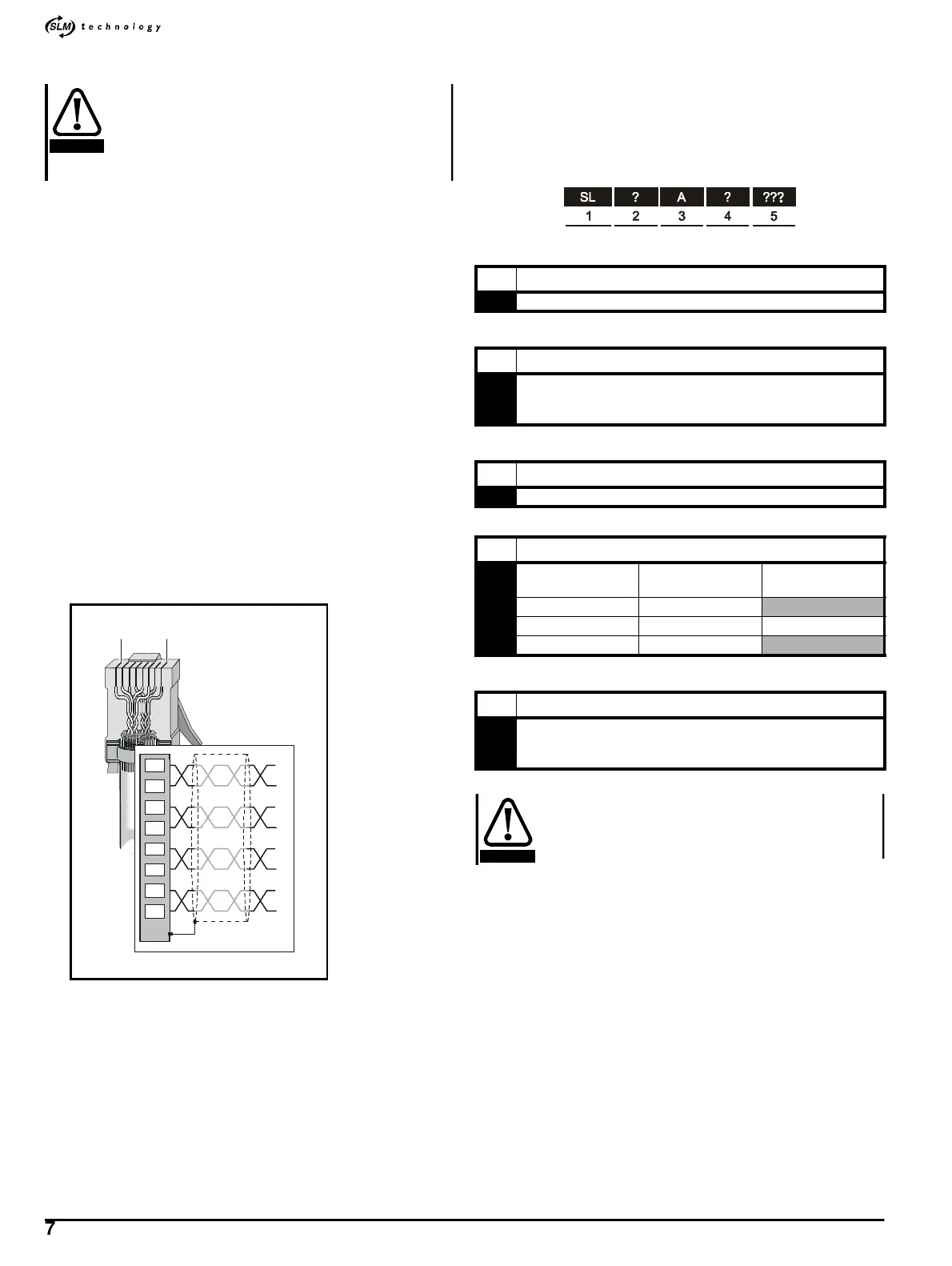

Connect the pins in
pairsasshown.
Comb out the
braided shield, fold
the strands back
andtrapthem
under the cable
clamp to ensure
good electrical
contact with the
clamp.
Ordering signal cables
Cables of the required lengths and fitted with RJ45 connectors as
required are supplied by Control Techniques Dynamics Ltd. For
ordering, create the required order code (see below) and contact the
supplier of the Drive.
The order code is constructed as follows:
Details of the code are shown below.
Wait 30 seconds after removing power to the Drive
before inserting or removing control cables as ‘hot
plugging’ cables can result in damage to the Drive or
SLM.
WARNING
1
2
3
4
5
6
7
8
18
1Typeofcable
SL Two twisted pairs in overall shield
2Typeofsheath
B
PUR
Use for dynamic applications (motor mounted on a moving
structure) - increased oil resistance
3 Options
A Standard
4 Cable terminations
F RJ45 plug
5-way DIN
connector
DrivetoSLM
G RJ45 plug Cut end
K RJ45 plug RJ45 plug Drive to Drive
X Cut end Cut end
5 Cable length
Specify length in meters
Minimum: 003 (3 meters)
Maximum: 050 (50 meters)
CAUTION
