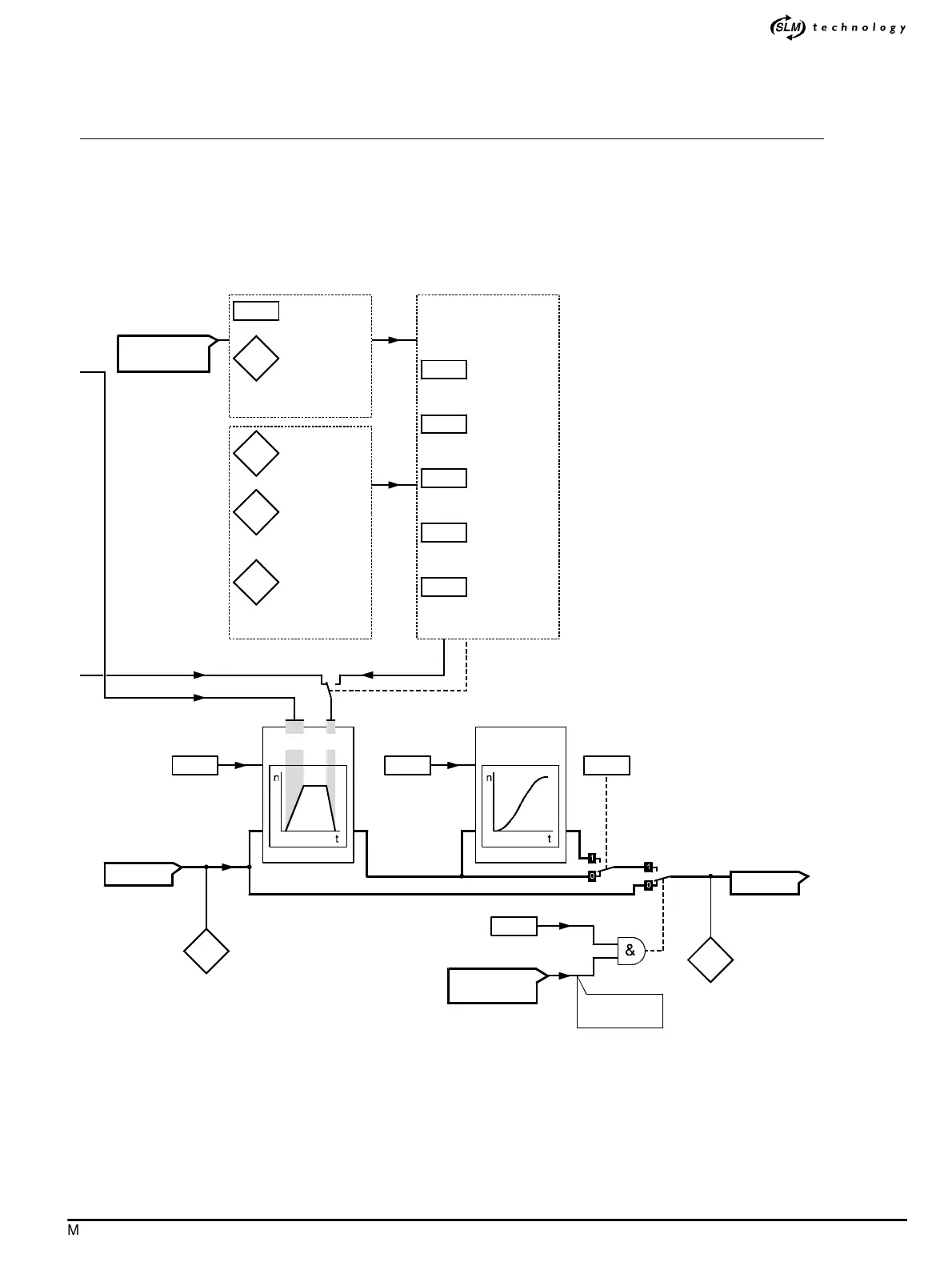

M’Ax User Guide 57
Issue Number: 4
Fast ramp
select
2.04
Stop-control
proportional-gain
2.46
Stop-control
integral-gain
2.47
Ramp controller
DC-bus level
6.48
Controlled-
stop enable
indicator
6.49
DC-bus voltage5.05
Internal
braking-resistor
overload alarm
10.12
Internal
braking-resistor
overload
accumulator
10.39
Sequencer
(Menu 6)
1.03
Pre-ramp speed
reference
2.01
Post-ramp
reference
Ramp
enable
2.02
Menu 1
Menu 3
Ramp enable
over-ride
Ramp hold
enable
2.03
S-ramp
S-ramp
enable
2.06
S-ramp
acceleration
limit
2.07
Sequencer
(Menu 6)
Ramp control
Braking-control
proportional gain
2.48
Braking-control
integral gain
2.49
