CONVAID USER’S GUIDE
9

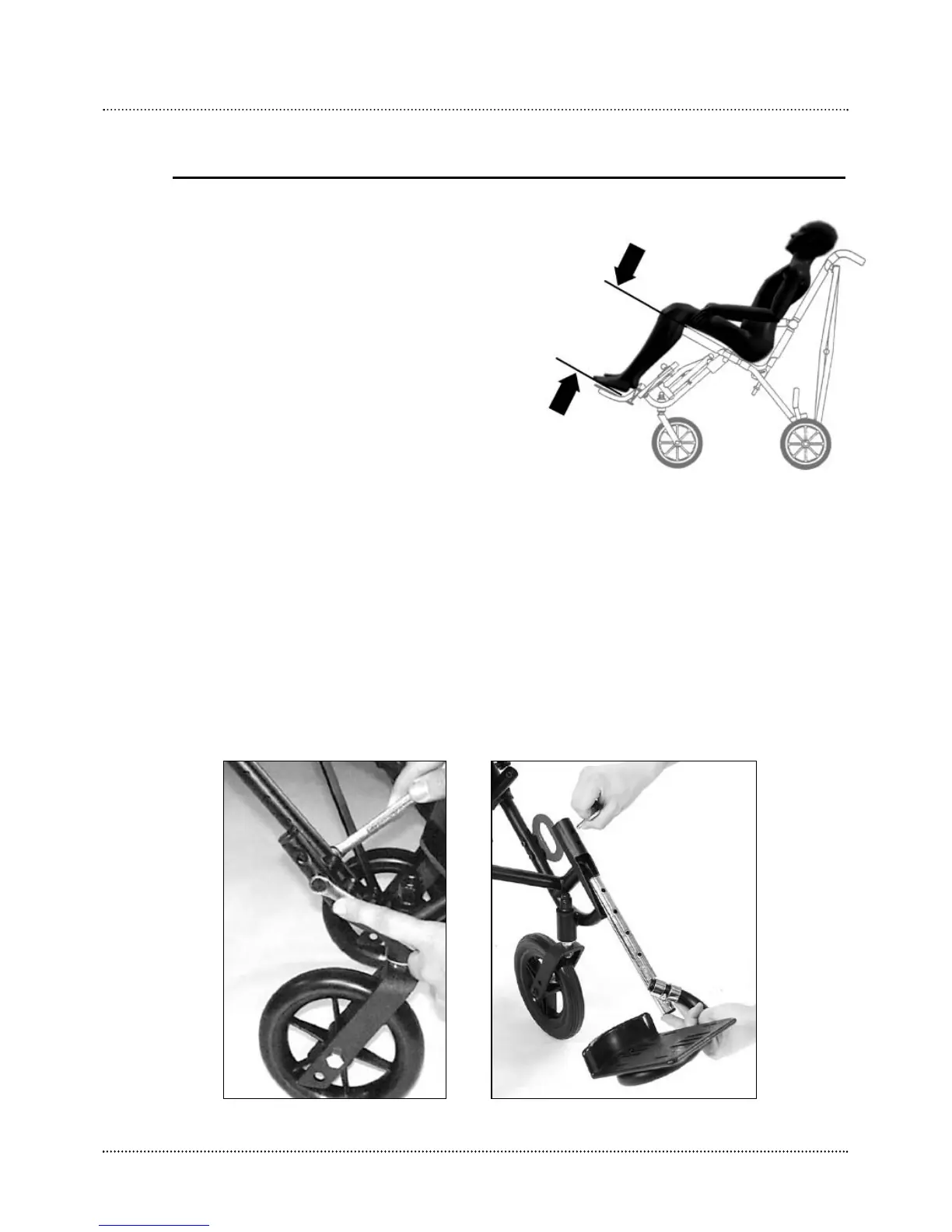

Footplate Height Adjustment
Fig.27
Fig.29
Fig.28
Seat-to-footplate height is measured from the back of the knee to the
bottom of the heel. Feet or heels should rest comfortably on top of
footplate. Fig. 27
All Convaid footplates are
height adjustable. Based on your
type of chair, see appropriate
adjustment. Fig. 28 & 29
Footplates swing away for
access or folding.
For Safari Tilt footplate adjustment,
see page 27.
For Metro 12, 14, 16,
and CruisAire:
Unbolt footplate bracket,
move footplate up or down,
reattach bracket in desired
position Fig.28
For Cruiser, Metro 18,
Convertible, Scout and all
EZ Rider models:
Pull on ring to remove metal
pin holding footplate in place.
Move footplate up or down,
realign holes and replace pin
through holes in tube. Fig.29
Footplate
height
