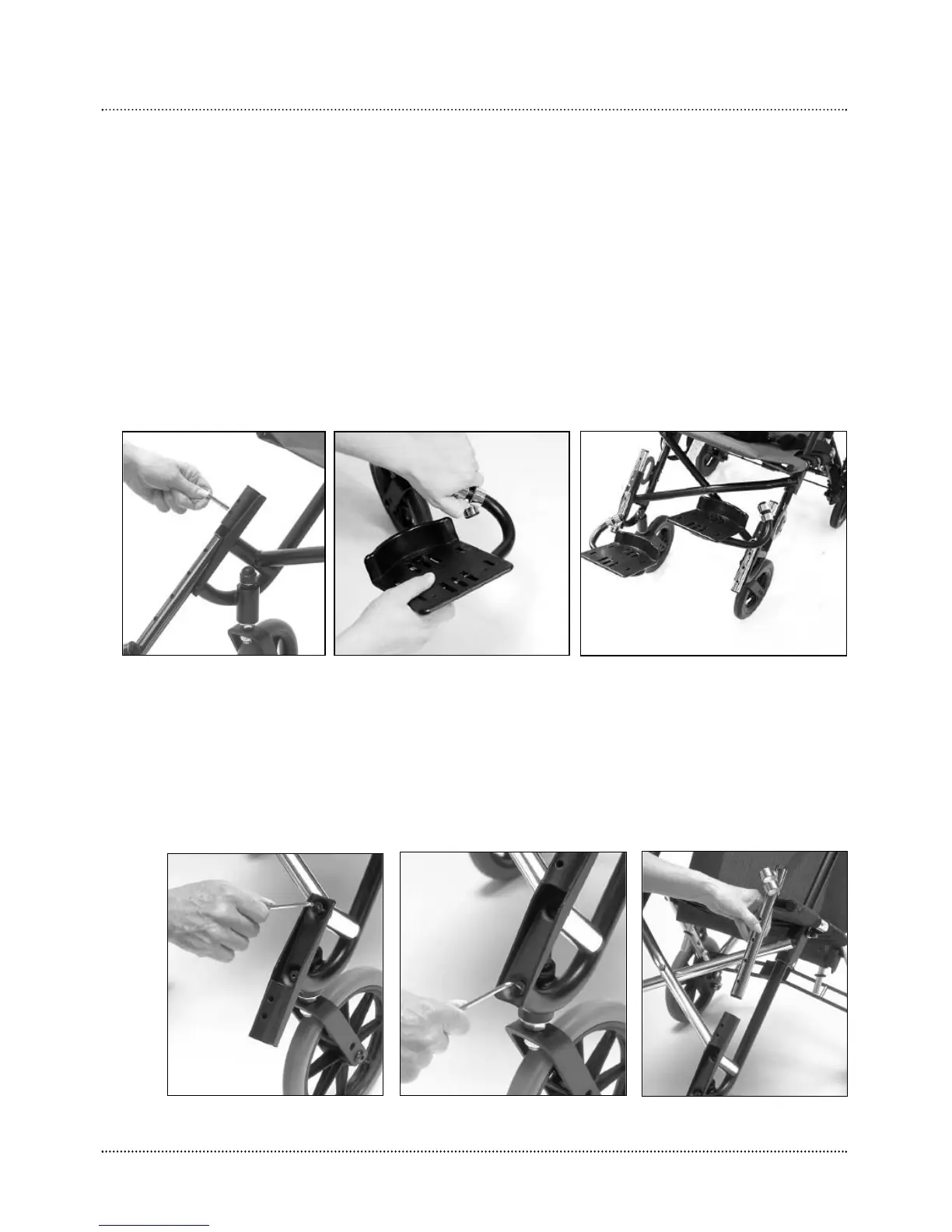

Additional Footplate Height Adjustment
In the event that the footplate height adjustment described on the
previous page is inadequate, additional adjustments can be made.
(For Metro 18, Cruiser, Convertible, Scout, EZ Rider and
Lite Rider only)
1. Pull out metal pin and remove the footplate extension tube
from the frame. Fig. 30
2. Press the detent button, then pull the footplate assembly apart.
Fig. 31
3. Insert the footplate into the opposite end of the footplate extension
and re-assemble. Fig. 32
10
Fig.31
Fig.30
Fig.32
FITTING GUIDE
For additional range:
4. Using a hex wrench (included), remove both bolts from the housing
bracket on the frame. Flip the bracket upside down and replace
bolts.
Fig. 33 & 34
5. Return the footplate extension tube to the housing bracket
and secure with metal pin. Fig. 35
Fig.33
Fig.34
Fig.35
