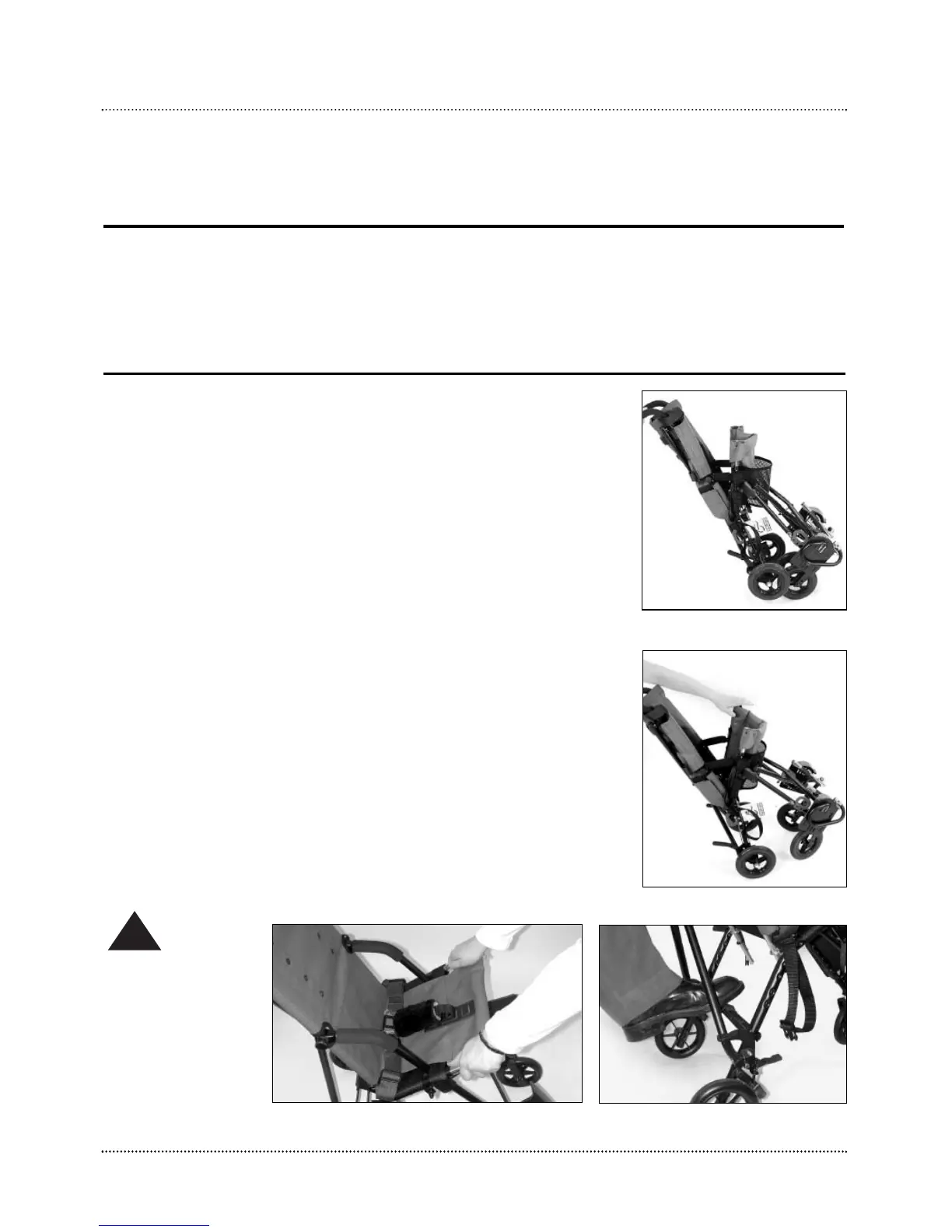

Unfolding Cruiser and EZ Rider Models
CONVAID USER’S GUIDE
1. Unbuckle closer strap (for EZ Rider models, undo locking
bar).
2. Stand chair on front casters.
Fig. 1
3. Grasp one handle and push down on the opposite seat tube.
Fig. 2
4. Press down firmly on seat tubes to ensure the chair is
completely unfolded. Fig. 3
5. Lock rear lock brace.
For all Cruiser Models: Use foot and push down on lower rear
brace until it locks into a straight position. Fig. 4
For all EZ Rider Models: Pull up on lock brace located behind
the seat back and slide tube over until centered between the
2 push pins. Fig. 5a & 5b (For EZ14/16/18 & CV14/16/18,
push brace downward until it locks into place. Fig. 6a & 6b)
6. Engage wheel locks. For Convertibles, install large rear
wheels.
• For Convertible Large Wheel installation, see page 2.
• For Safari Tilt instructions, see page 24.
• For Planar Seat and Back installation & instruction, see
page 29.
1
Setting Up
Unpacking the Chair
Fig.1
Fig.2
Fig.3
Fig.4
Check to see that the following items are included with the chair:
• Left and right footplates
• Accessories as ordered
• Hex wrench (5/32)
Caution:
Keep
fingers
free of
folding
mechanism.
