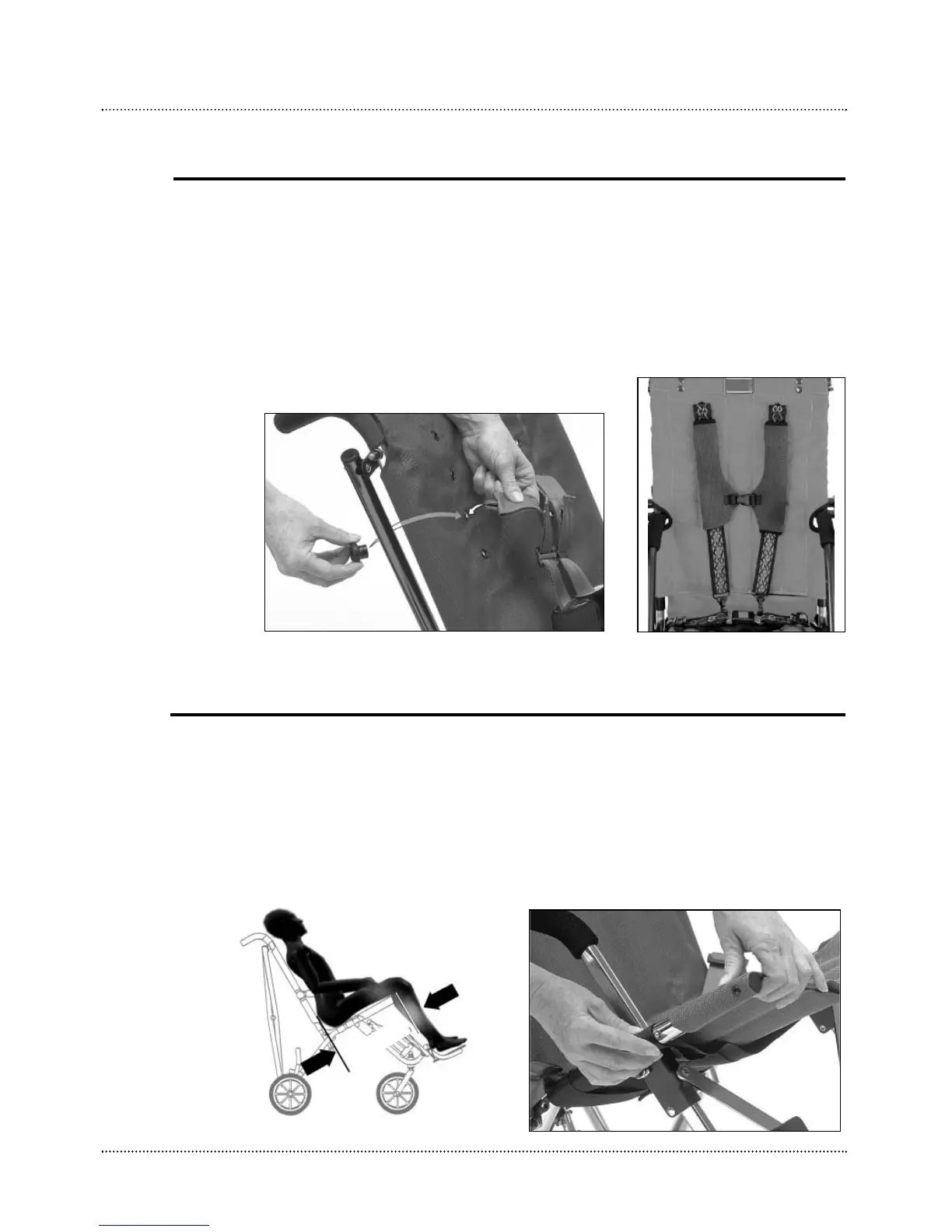

Convaid Cruiser - H-Harness with Padded Covers; Seat Depth Adjustment

6
Seat Depth
FITTING GUIDE
Fig.16
Fig.19
Fig.17
H-harness shoulder straps help the user
retain upright trunk position. To adjust,
insert the bolt at the end of the strap
through the grommet hole in the seat
back. Grommet choice should be level
with or higher than the top of the shoul-
ders. Choose a hole that will keep the
user secure without the strap rubbing
against the face or neck. Secure the
strap with the threaded knob.
Fig. 16
Shoulder pads for the H-
harness are standard. The
pads come equipped with
Velcro® for easy attach-
ment. Fig. 17
Measure from the most
posterior portion of the
buttocks to the back of
the knee. Subtract from
that measurement 1-2” to
allow adequate clearance
between the seat and the
back of the knee. Fig. 18
To change seat depth, partially fold
the chair to relieve fabric tension.
Undo the velcro back panel of the two
piece seat. Grasp end of seat tube,
depress spring button and move seat
tube until spring button relocates into
the desired hole. Repeat for other side
of seat. Fig. 19
Seat depth
Fig.18
H-Harness with Padded Covers
