SAFARI TILT
24

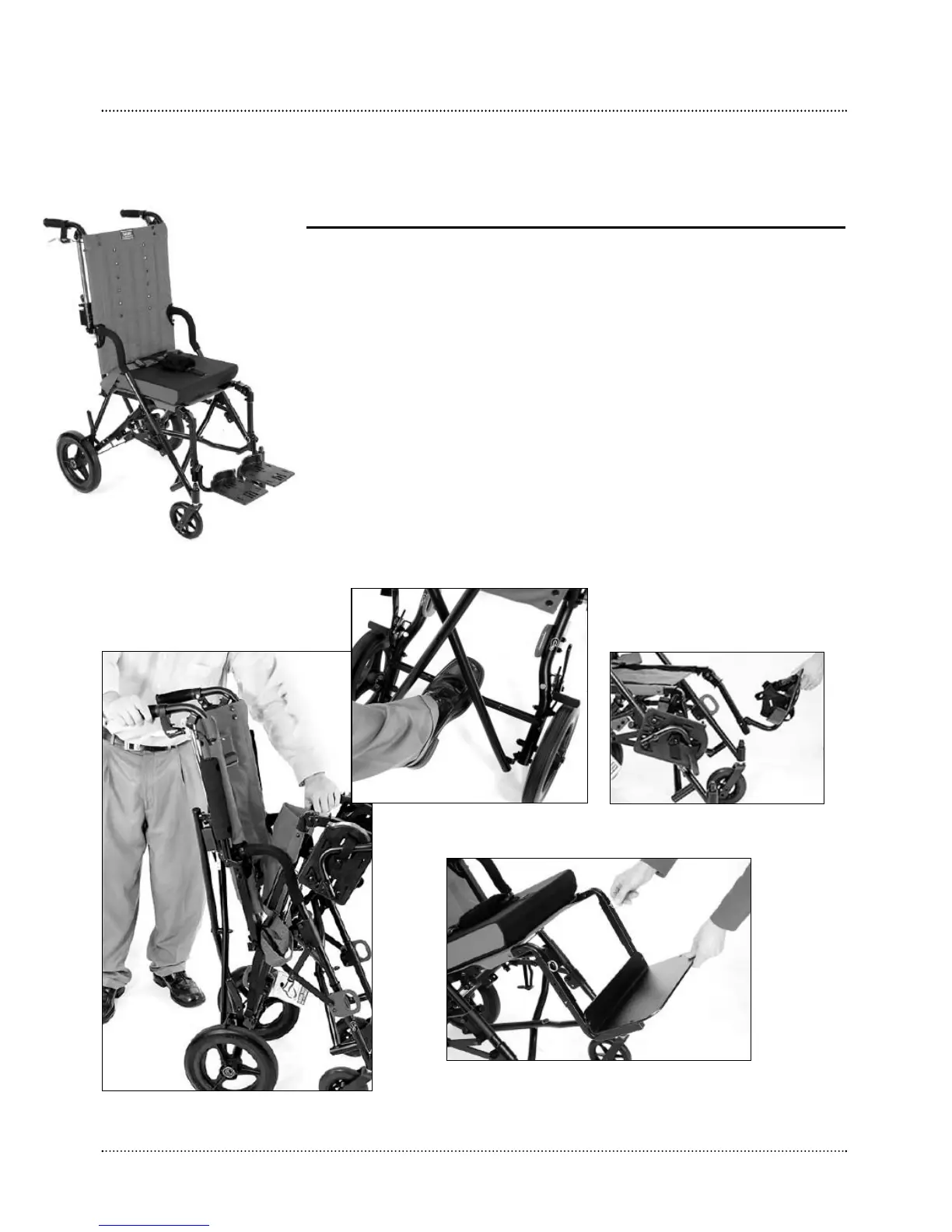

Safari Tilt
Unfolding
Fig.84
Fig.85
Fig.86
Fig.86b
1. Release closure strap.
2. Raise legrests until they click into position.
3. Stand chair on wheels. Grasp one handle and push down on
the opposite seat tube.
Fig. 84
4. Press down firmly on seat tubes to ensure the chair is
completely unfolded.
5. Use foot to lock the rear brace into a straight position. Fig. 85
6. Swing footrests forward. Fig. 86 (Note: For chairs with a
one-piece footplate, attach footplate with pins. Fig. 86b)
7. Install seat cushion by pushing firmly into back of seat,
then pressing down onto Velcro®.
