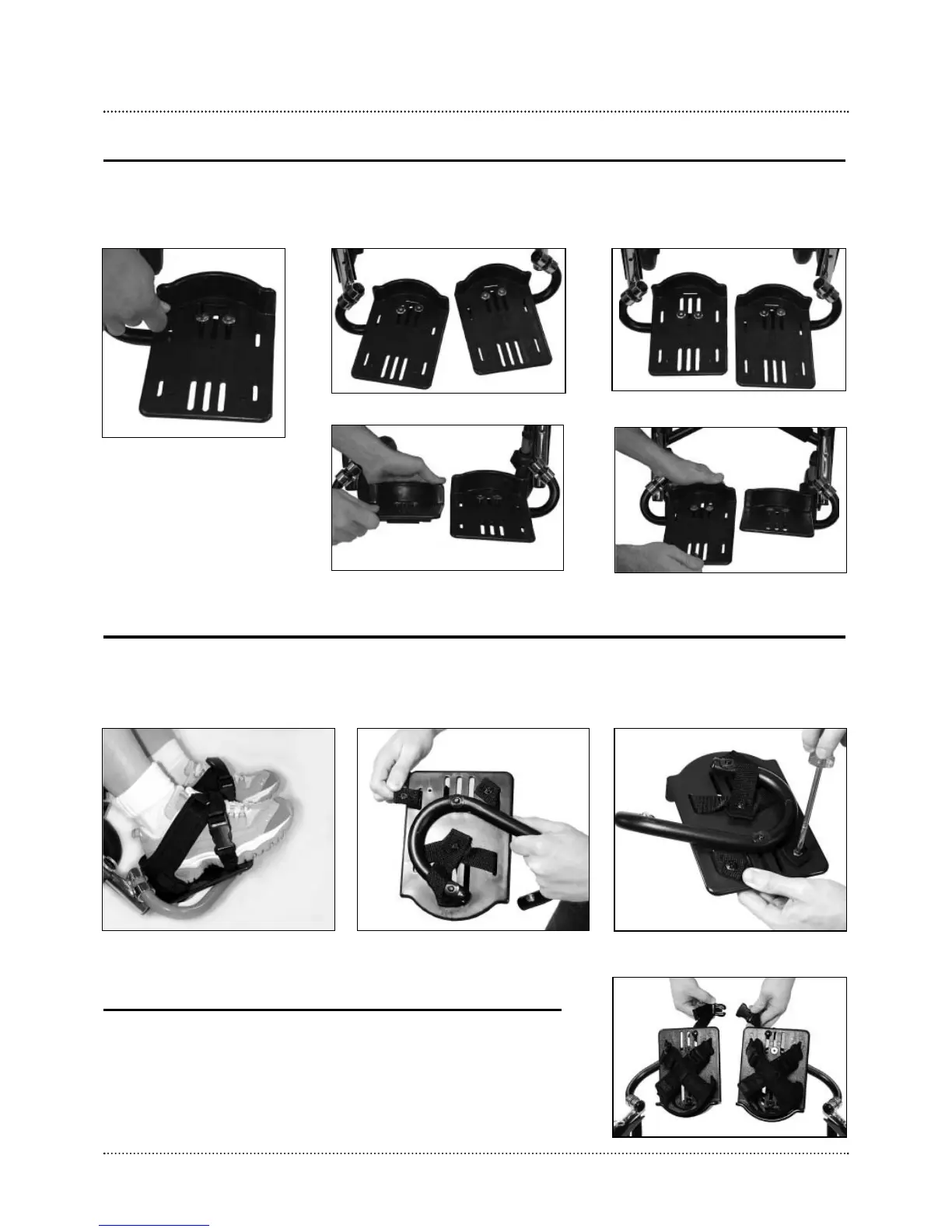

Foot Positioners
Foot Positioners may be criss-crossed over the foot to secure the whole foot Fig. 60 or
can be converted into simple ankle straps. To attach foot positioner, thread strap through
footplate as shown in
Fig. 61 & 62, then bolt strap to underside of footplate.
Footplate Securement Strap
The securement strap holds individual footplates
together to prevent them from flipping up and down. To
secure the footplates, buckle the left and right strap
together. Fig 63
Fig.61
Fig.62
Foot Positioner Fig.60
16
Angle Adjustable Footplates
Angle adjustable footplates can be moved fore and aft, sideways, and rotated vertically
and horizontally. To adjust the angle, loosen the bolts on the footplate and move to desired
position. Retighten the bolts. Fig. 55 - Fig. 59
FITTING GUIDE
Fig.56
Fig.55
Fig.57
Fig.58
Fig.59
Fig.63
