CONVAID USER’S GUIDE

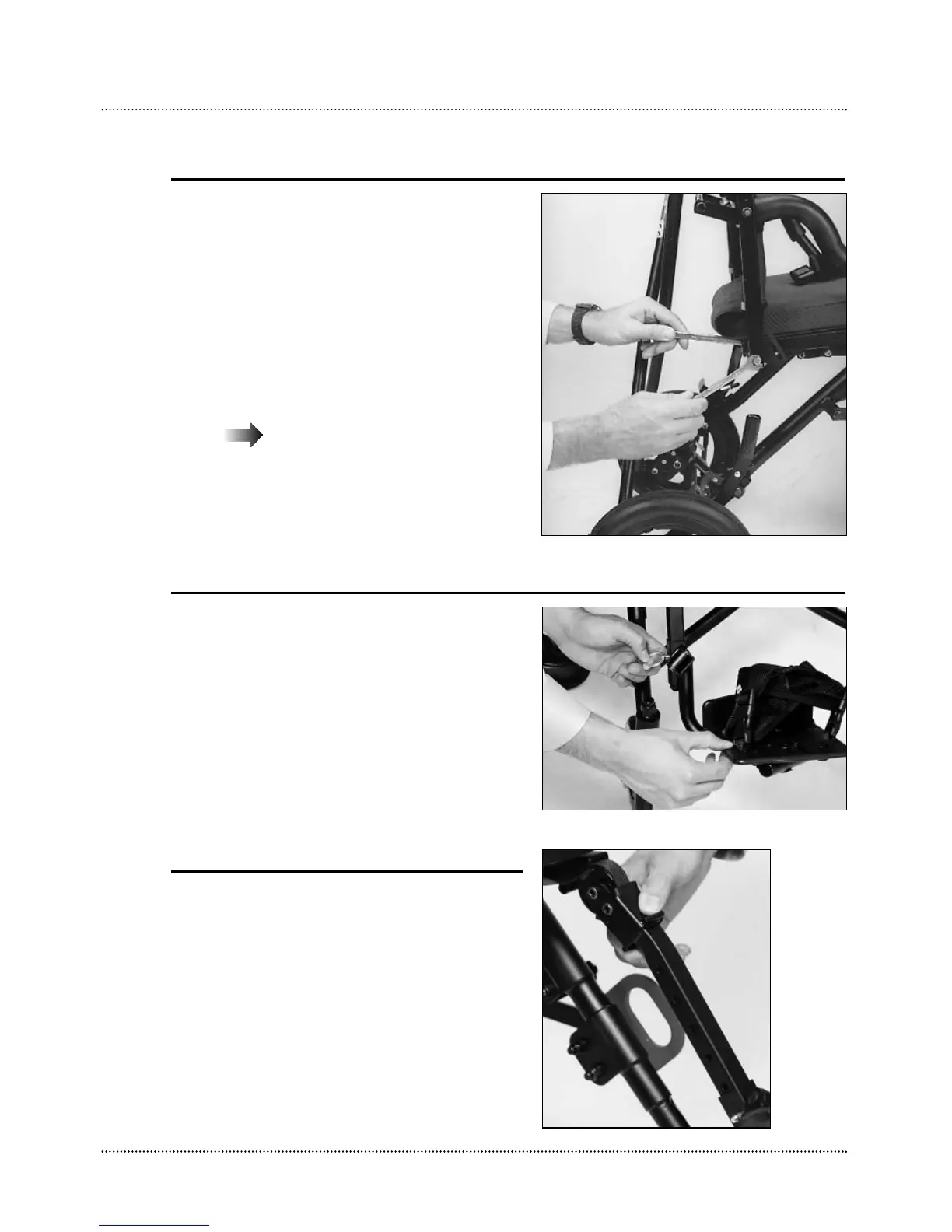

Seat-to-Back Angle Adjustment
Seat-to-Footplate Height Adjustment
Partially fold the chair to
relieve fabric tension.
To change, remove bolt and
remount the seat tube using
the hole provided in the seat
back tube.
90°- lower hole
95°- upper hole
Fig. 94
Pull out metal pin. Slide foot
support to desired height.
Return pin to locked position.
Fig. 95
Fig. 96
Legrest Adjustment
Pull down on slide lock.
Rotate legrest to a desired
position. Release slide lock.
Ensure that the lock is
engaged. Fig. 96
Fig.94
Note: Be sure to replace the
bolt, washers and nut in the
same order as removed.
Fig.95
