Convaid Cruiser - Attaching Planar Back to Chair

30
PLANAR SEAT AND BACK
Attaching Planar Back
Leaving the fabric back in
place, attach the planar
back to the chair frame
using the Velcro straps.
Fig. 108

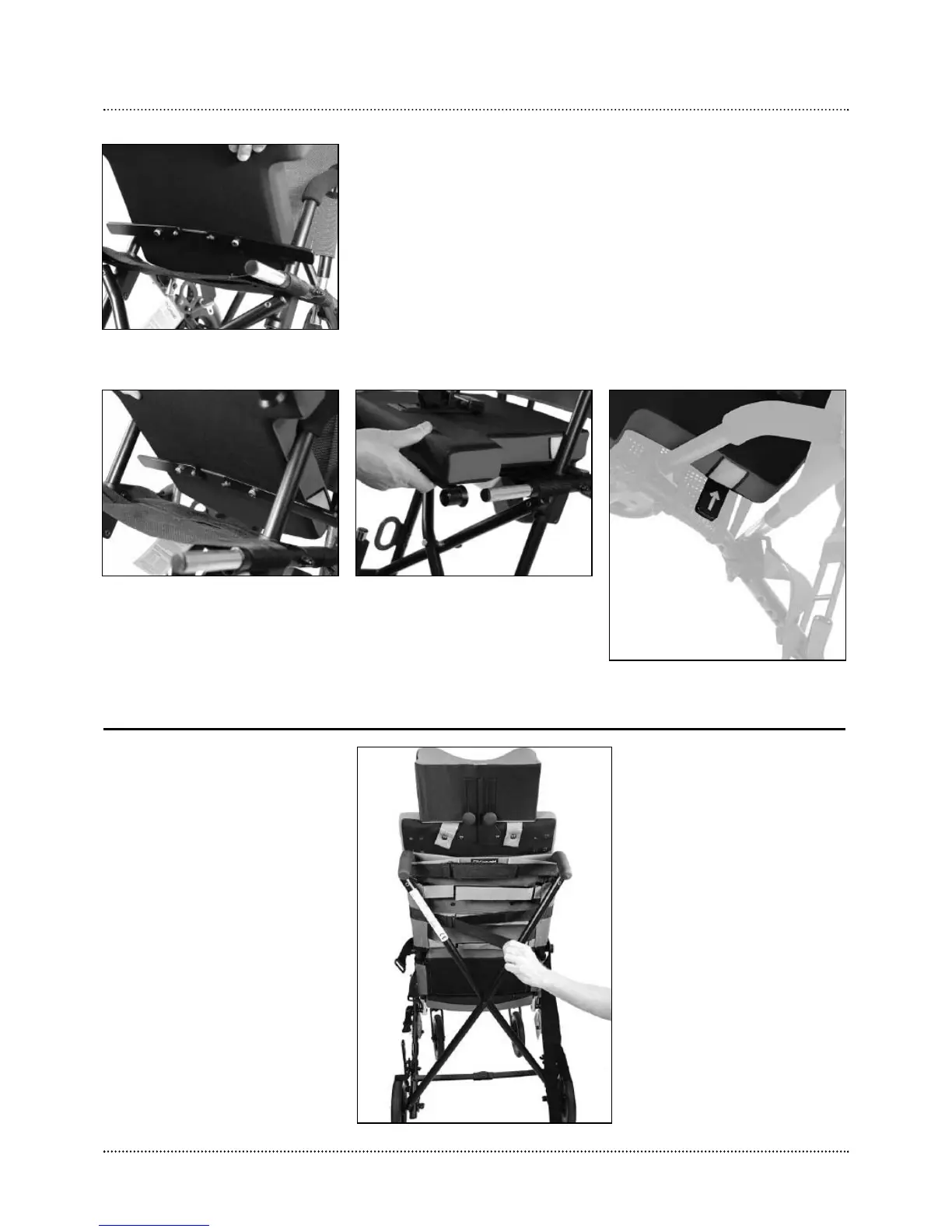

5. Facing the chair, tip the planar seat down at a 45-degree
angle toward the seat back, with the support bars
touching the frame of the chair. Fig. 104
6. Push gently until the support bars go beyond the frame
of the chair as shown. Fig. 105
7. Lower the seat to a horizontal position and push the end
caps/brackets onto the telescoping tubes until you
hear a “click”. Fig. 106
8. Make sure that the arrows on the support bars are lined up
with the green patch on each side of the cushion. Fig. 107
Fig.108
Fig.104
Fig.105
Fig.106
Fig.107
