2C9
2-3-18

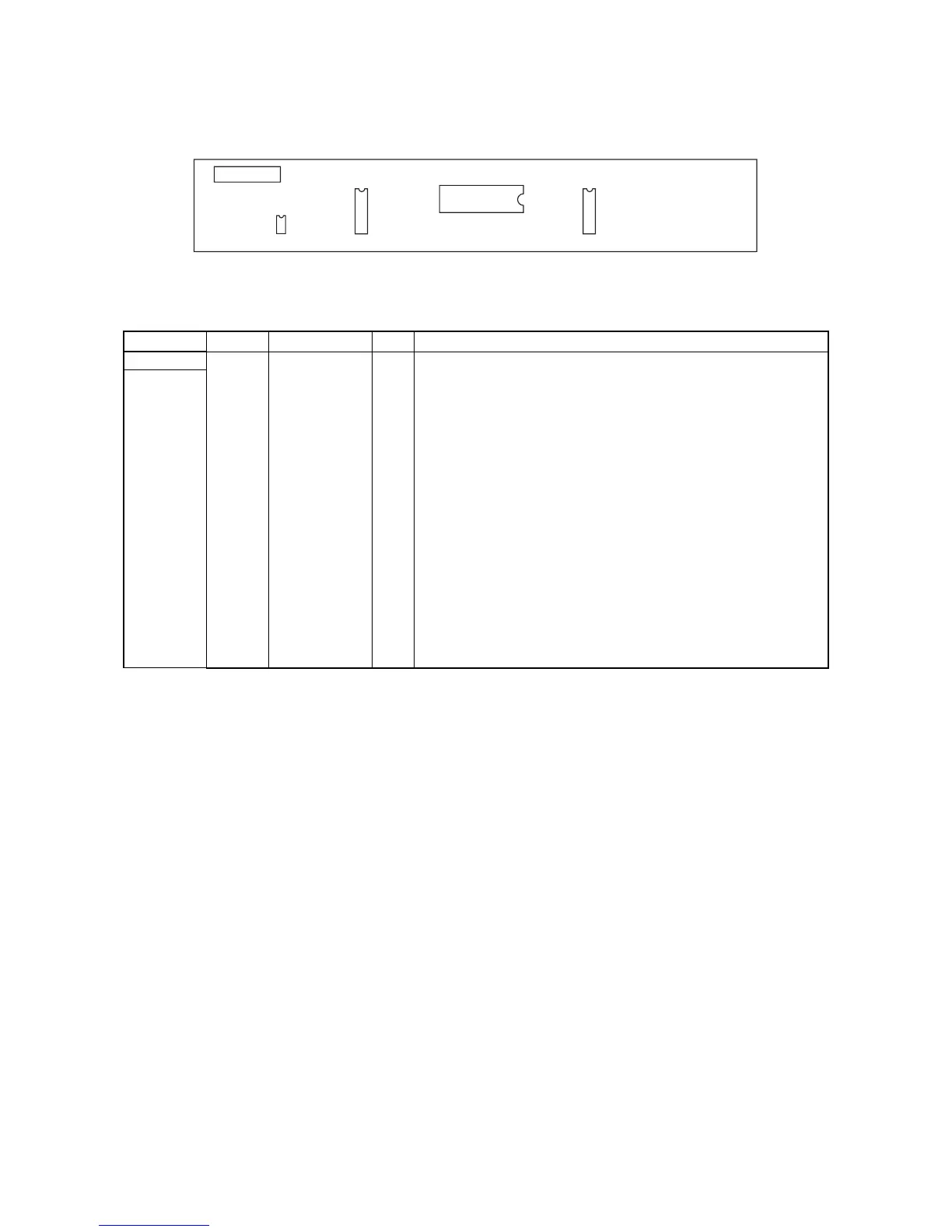

Figure 2-3-10CCD PCB silk-screen diagram
Connector Pin No. Signal I/O Description
YC1 1 S.GND - Ground
Connected
to the main
PCB
2 SH I MPCB SH signal
3 S.GND - Ground
4 CP I MPCB CP signal
5 S.GND - Ground
6 RS I MPCB RS signal
7 S.GND - Ground
8 CCDCLKN I CCDCLKN signal
9 S.GND - Ground
10 CCDCLK I CCDCLK signal
11 S.GND - Ground
12 +12 V I 12 V DC power supply from MPCB
13 S.GND - Ground
14 +5 V I 5 V DC power supply from MPCB
15 CCDEN - Ground
16 CCDE O CCDPCB image scanning signal
17 CCDON - Ground
18 CCDO O CCDPCB image scanning signal
U1
U2
U3
U4
YC1
