22. Before starting the machine, the operator must pay close attention to the warnings
of the adhesive labels affixed to the equipment.
23. Disconnecting the pneumatic supply, both due to non-use or to maintenance of the
machine or the pneumatic system of the workshop, can leave pneumatic actuators
under pressure. Discharge the machine pneumatic system using the controls on the
actuators.
24. Use a lifting device if the wheel weighs more than 10 kg, with a
lifting frequency of more than 20 wheels/hour.

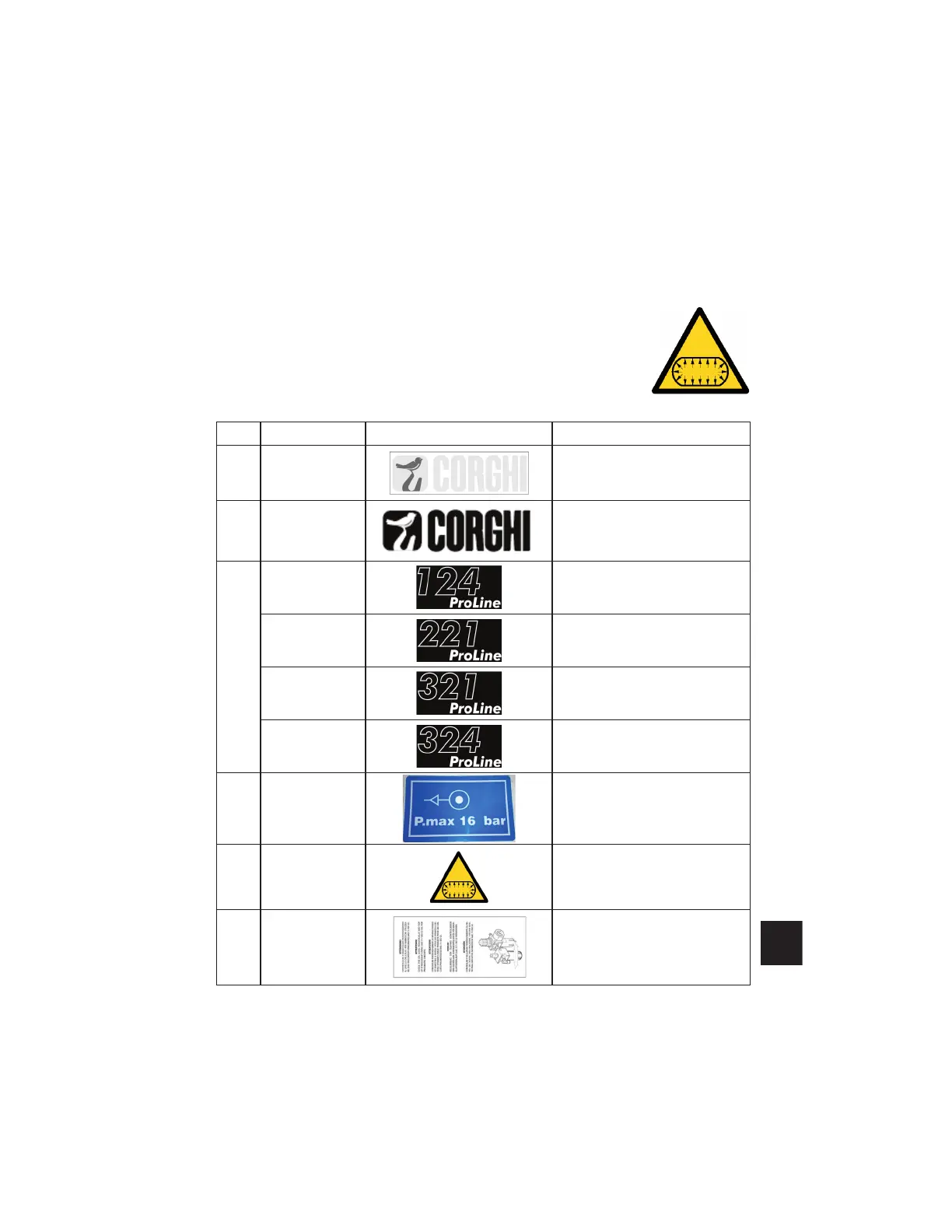

1.2.b. LABELS PLACEMENT
No. Part Number Drawing Description
1 4-136038
LABEL, CORGHI LOGO
FRONT
2 461236
LABEL, CORGHI LOGO
LATERAL
3
4-135683
LABEL, PROLINE 124
4-135682
LABEL, PROLINE 221
4-135681
LABEL, PROLINE 321
4-135680
LABEL, PROLINE 324
4 446429
LABEL, OPERATING PRESSURE
5 446442
LABEL, DANGER - PRESSUR-
ISED CONTAINER
6 4-113355 LABEL, FILTER
