Corghi ProLine 124 - Description of the Machine

ProLine 124-221-321-324 Operator manual 109
UK

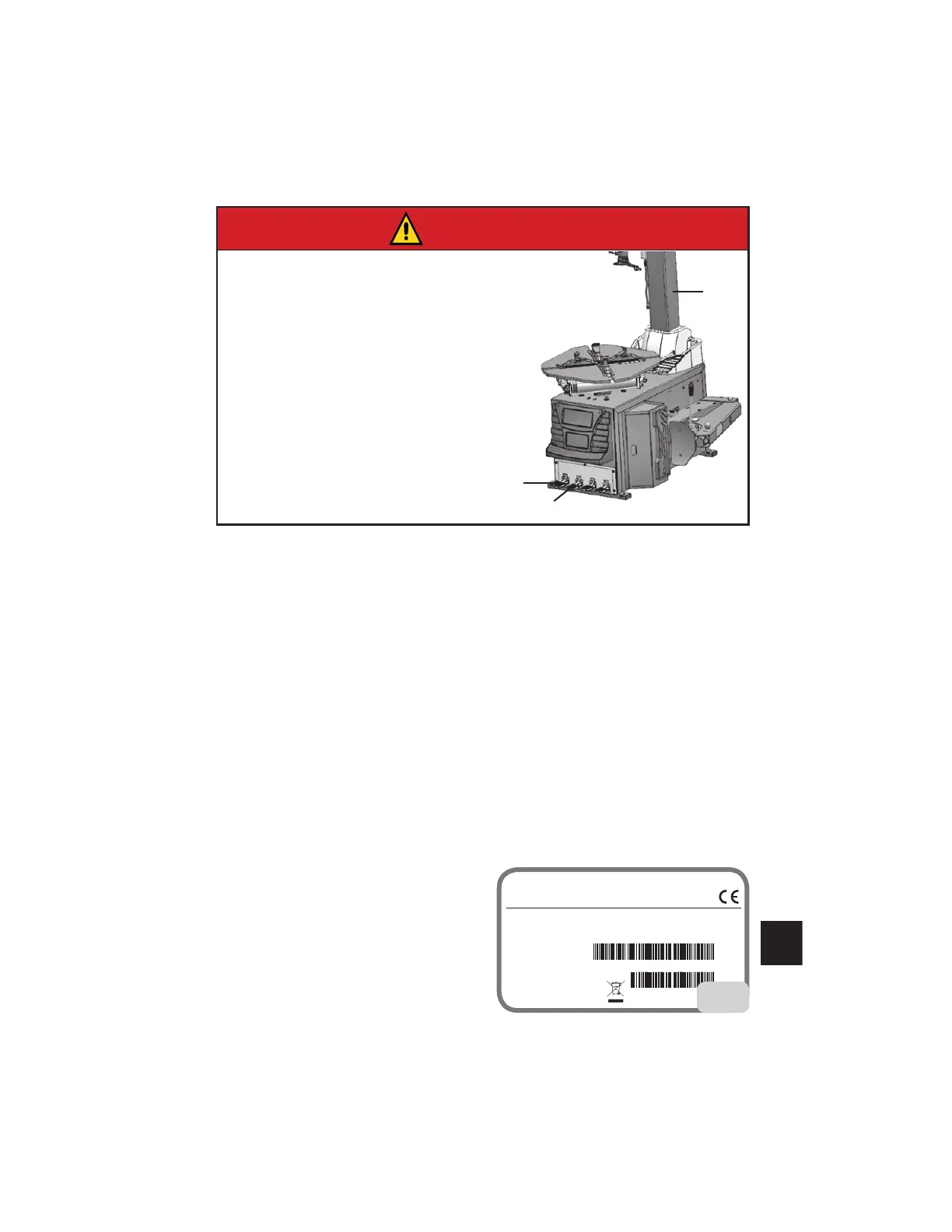

Before proceeding with the electrical and
pneumatic connection and whenever the
electrical and pneumatic power supply is
restored, make sure that the machine is in
the configuration described below:
- pedal A COMPLETELY LOW
(turntable E closed).
- pedal B COMPLETELY LOW
(pole C not tilted).
DANGER
6. DESCRIPTION OF THE MACHINE
The machine is an electro-pneumatically operated tyre changer.
It works on all types of whole rims with channel, with weights and dimensions as described
in the TECHNICAL DATA section.
The machine is solidly constructed. It operates with the wheel in a vertical position for
bead breaking and in a horizontal position for mounting and demounting tyres. All machine
movements are controlled by the operator by means of the pedals.
Each machine carries a plate Fig. 9 reporting its identification data and some technical data.
As well as the manufacturer’s details, it indicates:
฀฀฀฀
฀฀฀฀฀฀฀
฀฀฀฀฀฀
฀฀฀฀฀฀
฀฀฀฀฀
฀฀฀฀฀
฀฀฀฀฀฀฀฀
฀฀฀฀฀฀
ISO 9001 - company Quality System
฀
CE - CE marking.
B
A
C
ISO9001
Code
Serial N.
X-XXXXXXXX/XX - XX
XXXXXXXXX
QUAL. SYS. CERTIFIED
ANNO DI COSTRUZIONE /
MANUFACTURED
Mod.
V
A
kW
Hz
Ph
bar/psi
9
