is not necessary to pre-position the locking
wedges. The very shape of the wedge brings
the rim to be locked into the correct position.
- Place the wheel (with the narrow shoulder
of the rim facing up) on the turntable,
- Push it slightly downwards and operate
the control pedal to lock the

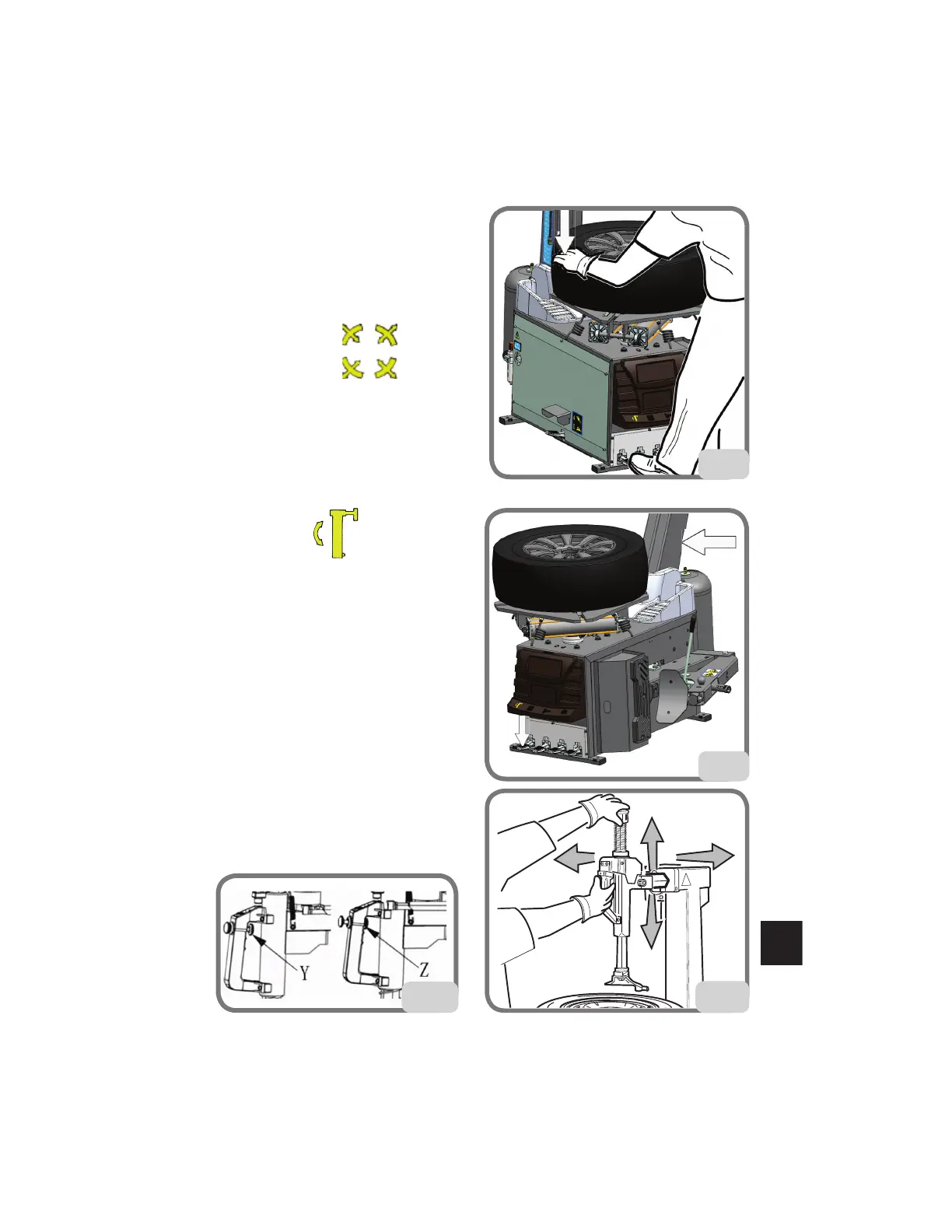

wheel in position (fig.20).
9.5. WHEEL demounting
9.5.a TOOL HEAD POSITIONING
(ProLine 324 - ProLine 321)
- Press the pedal to move the column
into the working position. (Fig.21).
- Pull the Z position button to release the
vertical and horizontal arm simultaneously
(Fig. 22A).
- Move the mounting/demounting tool head
against the rim edge (fig.23).
- Press the Y-position button to lock the tool
head into the working position (Fig. 22A).
Important: press the button Y to lock
both the vertical and horizontal arms
simultaneously while the mounting/
demounting tool head goes slightly
upwards moving away from the rim edge
(fig. 23A).
