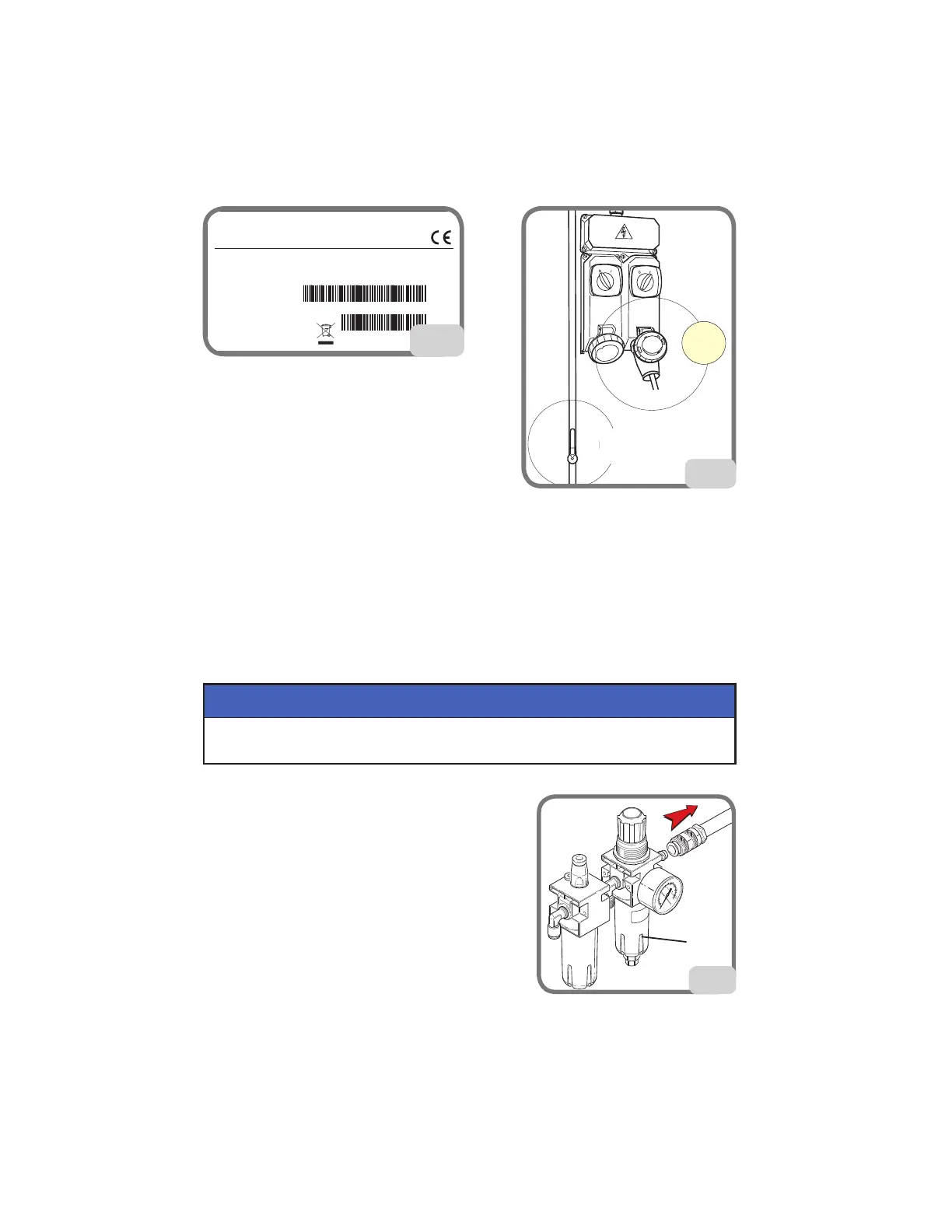

98 ProLine 124-221-321-324 Operator manual
ensure that the voltage drop under full load does not
exceed 4% (10% during
start-up) of the rated voltage value specified on the plate
- The user must:
- A, Fig. 2 - equipped with a differential automatic
sockets.
Make sure that the available pressure and performance of the compressed air system are
compatible with what is necessary for correct machine operation - see
the section “Technical data”. For the correct operation of the machine, the pneumatic
supply line must provide a pressure range from a minimum of 8 bar to a maximum of 16 bar.
For correct equipment operation, the air produced must be suitably treated (not
above 5/4/4 according to standard ISO 8573-1).
WARNING
Check that the lubrication cup (B, Fig. 2a contains
The pneumatic supply inlet point, in the workshop
line, must be equipped with a pneumatic supply
shut-off valve, placed upstream the filter/regulator
unit supplied with the machine (B Fig. 2a).
