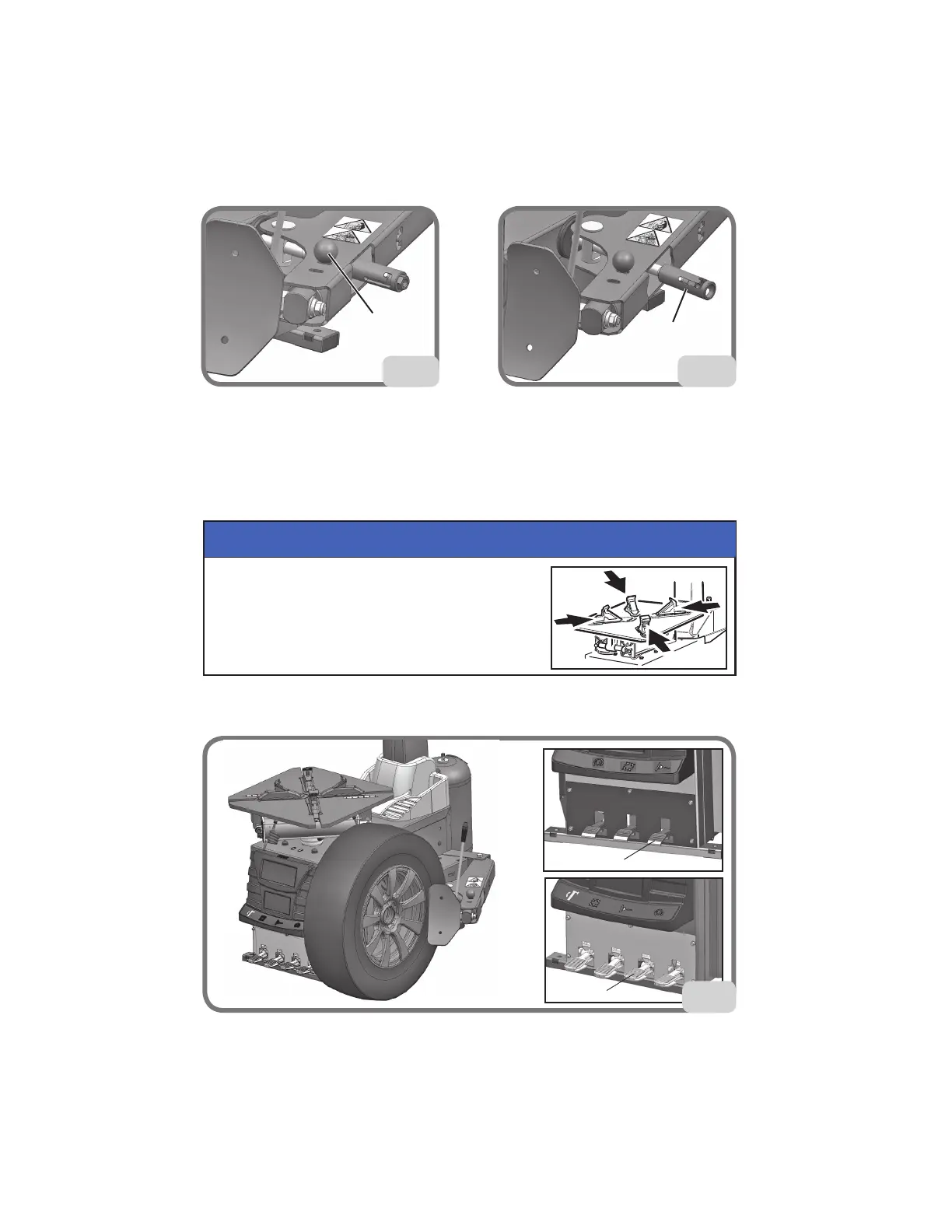

- Adjust the shoe position using the pin (A) based on the size of the tyre (Fig. 15A).
ProLine 324
- For extremely wide wheels (over 350 mm), position the stop (B) as shown in figure 15B.
- Position the wheel as shown in fig.16 and move the bead breaker shoe near the rim edge.
During the bead breaking operation, you are
advised to keep the turntable closed (locking
wedges towards the centre)
WARNING
15A
A
15B
B
C
C
16
