134 ProLine 124-221-321-324 Operator manual

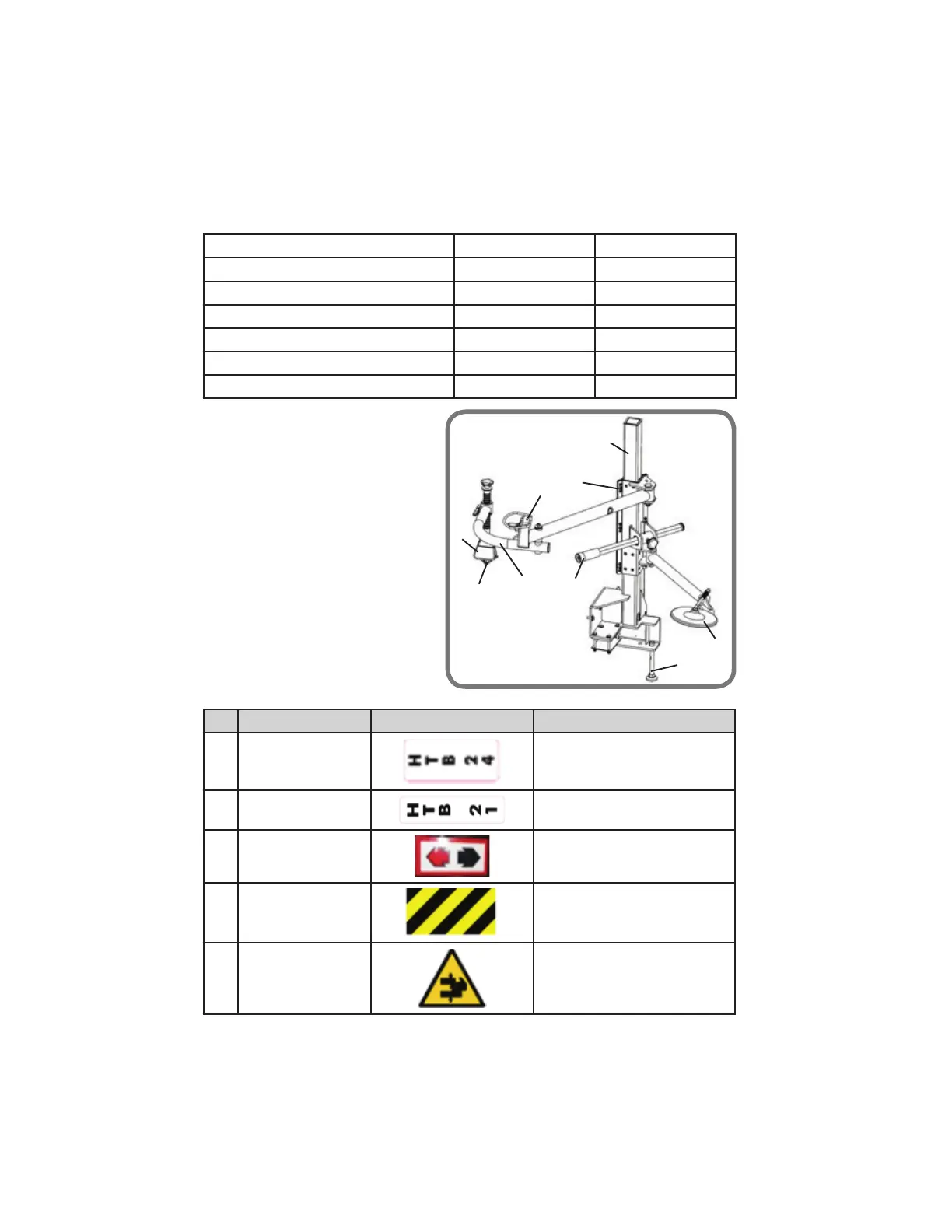

9.1.c. Technical data
HTB 21 HTB 24
Pneumatic cylinder force (at 8 bar) 6000 N 6000 N
Height 1200 mm 1700 mm
Width 1500 mm 1500 mm
Arm rotation radius 765 mm 765 mm
Presser roller min radius 270 mm 270 mm
Arm stroke 350 mm 350 mm
10.1.d. Functional parts
1- Vertical pole
2 - Sliding support
3 - Adjustable support foot
4 - Bead presser
5- Helper control
6- Pneumatic pressure arm
7- Tool
8. Centring tool
9 - Bead breaker disc
10.1.e. Labels placement
Ref. Code Description
1A -
Label HTB 24
1B -
Label HTB 21
2 - Unlocking control plate
3 4-405458 Label, dimensions
4 462081
Label, risk of crushing
1
2
3
4
5
6
7
8
9
