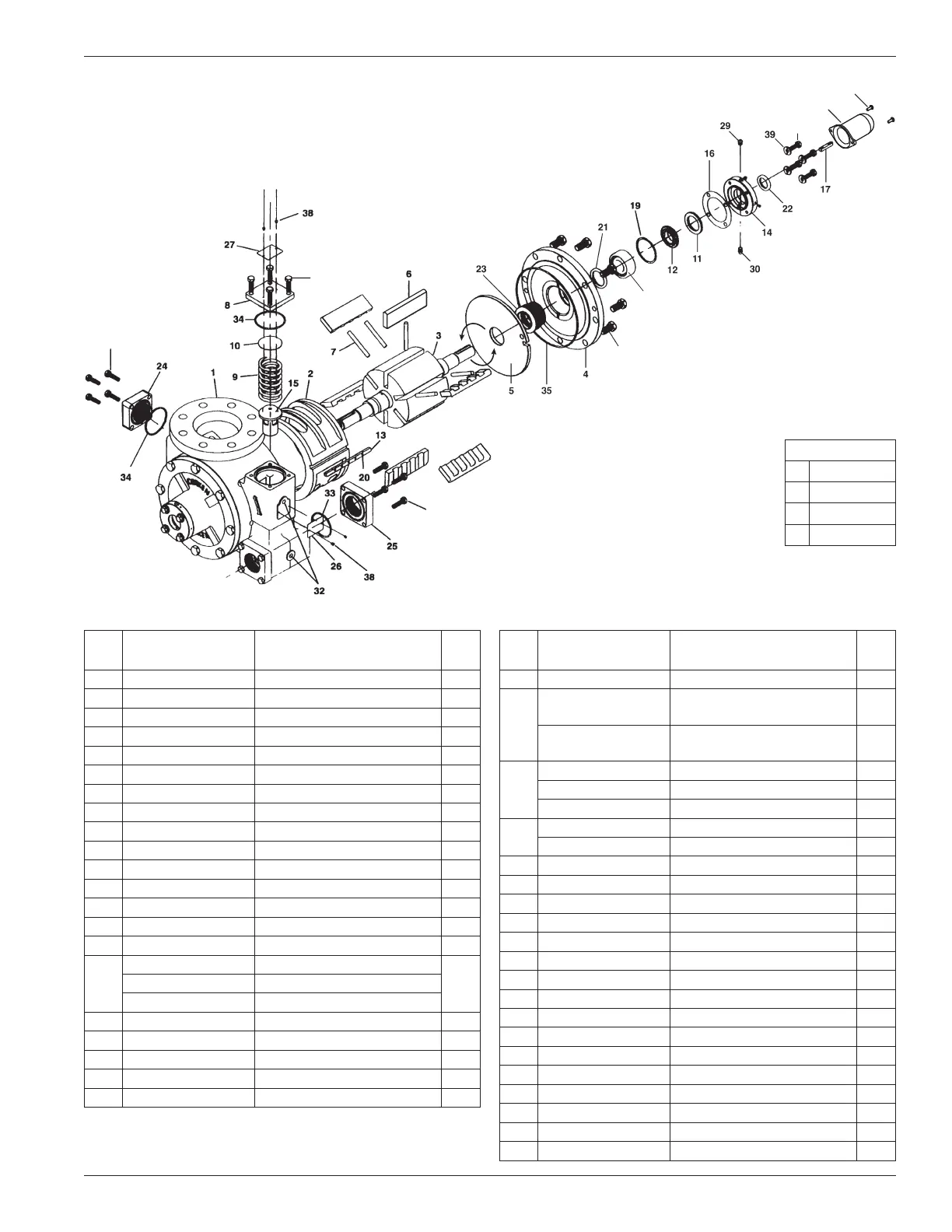

Appendix E—Parts Details for Models Z/ZH4200
See pages 16 and 17 for repair/rebuild kits.
CAUTION: Always relieve pressure in the unit
before attempting any repairs.
Note: Hydraulic motor is not shown.
Ref.
No.
Part No. Description Qty
1. 4442
b
Case 1
2. 4443
b
Cam 1
3. 4444-X2R
b
Rotor-shaft assembly 1
4. 4445
b
Head 2
5. 4446 Sideplate 2
6. 4448
c
Vane 6
7. 4449-X Vane driver 5
8. 4450 Relief valve cap 1
9. 4451 Relief valve spring 1
10. 4452 Shim 1
11. 4453 Thrust bearing assembly 2
12. 4454 Bearing race mounting ring 2
13. 4455 Cam key 1
14. 4456 Bearing cap 2
15. 4457 Relief valve 1
16.
4458 Bearing cap shim (.002) red
As
req.
4458-1 Bearing cap shim (.010) brown
4458-2 Bearing cap shim (.020) yellow
17. 4459 Shaft key—5/16 x 1-3/4 1
18. 4460-X Roller bearing 2
19. 2760-283 Retainer ring 2
20. 3253 Cam key pin 5
21. 4462 Grease seal 2
O-ring Code
A Buna-N
B Neoprene
®a
D Viton
®a
E Teflon
®a
Ref.
No.
Part No. Description Qty
22. 4463 Grease seal 2
23.
4464-X_2
b
Mechanical seal
assembly—cast iron
2
4464-X_6
b
Mechanical seal
assembly—silicon carbide
2
24.
1172-2 Aux. inlet ange—2" NPT 1
1172-2S Aux. inlet ange—2" WF 1
1920-3 Aux. inlet ange—blind 1
25.
4479-2
d
Discharge ange—2" NPT 2
4981-2 Discharge ange—2" NPT 2
26. 2649 Nameplate 1
27. 4248 Relief valve nameplate 1
28. 1359 Lubrication instruction plate 2
29. 1343 1/8 NPT relief tting 2
30. 2158 1/8 NPT grease zerk 2
31. 2159
b
Lubricap 2
32. 3442 1/4 NPT pipe plug 2
33. 2-231_
b
O-ring—discharge ange 2
34. 2-234_
b
O-ring—auxiliary inlet ange 1
35. 2-270_
b
O-ring—case 2
36. 7001-037NC150A Bolt—hexagon head 24
37. 7001-062NC125A Bolt—hexagon head 16
38. 7012-006SF019E Screw 8
39. 7206- 037A Lockwasher 8
40. 4985 Shaft protector 1
41. 7012-010SF050E Screw 2
