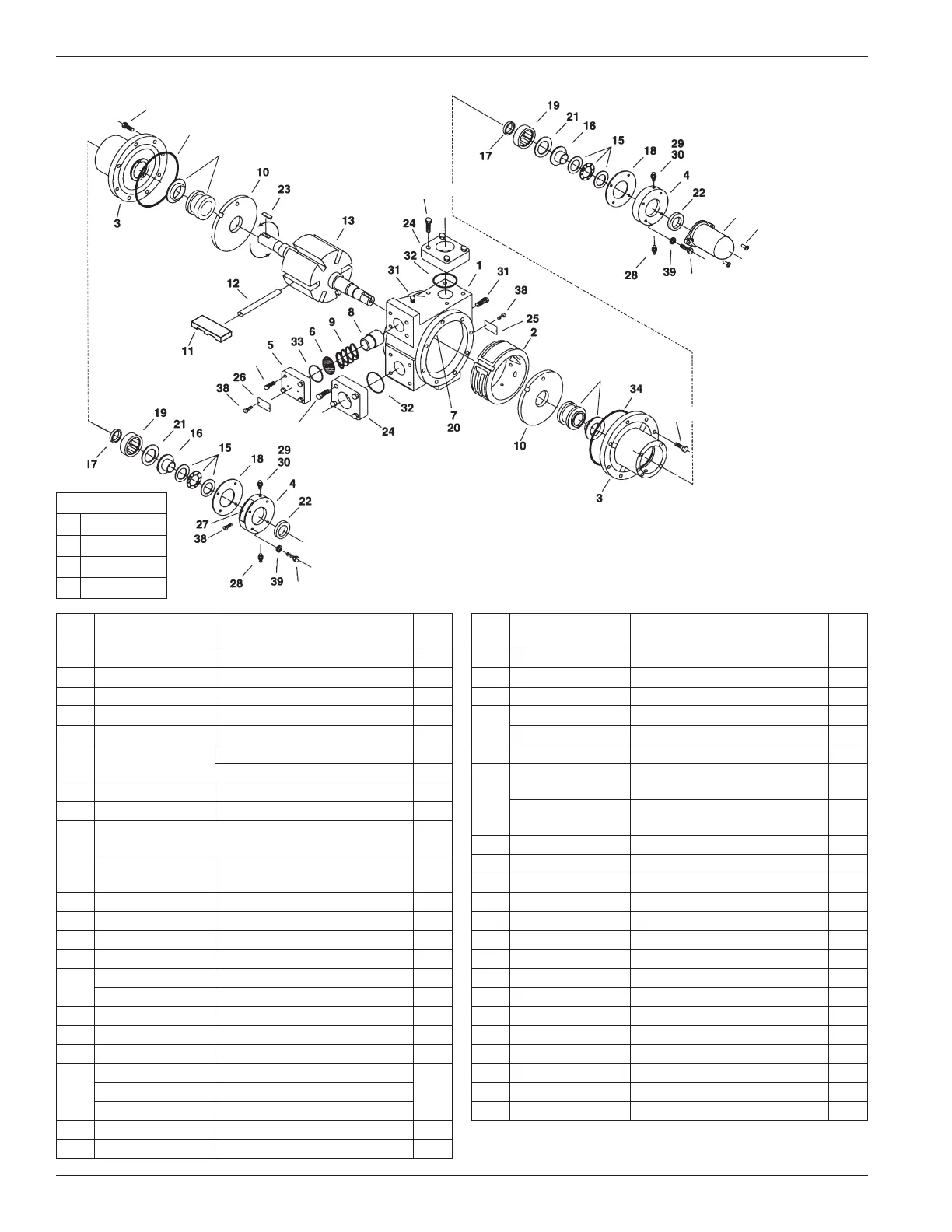

Appendix E—Parts Details for Models Z/ZH/ZX/ZXH2000
36 (25 ft•lb)
Inlet
Outlet
37 (45 ft•lb)
37 (45 ft•lb)
35 (15 ft•lb)
36 (25 ft•lb)
36 (25 ft•lb)
34
14
36 (25 ft•lb)
14
40
41
CAUTION: Always relieve pressure in the unit before attempting
any repairs.
a
Registered trademark of the DuPont company.
b
Slots in vanes must face TOWARDS the direction of rotation.
c
_ denotes O-ring code. See chart above.
See pages 16 and 17 for repair/rebuild kits.
Note: Hydraulic motor is not shown.
Ref.
No.
Part No. Description Qty
1. 4413 Case 1
2. 4414 Cam 1
3. 4416 Head 2
4. 4417 Bearing cap 2
5. 1174 - 3 Relief valve cap 1
6. 4282
Shim (Z2000, ZH2000) 1
Shim (ZX2000, ZXH2000) 3
7. 4424 Cam key 1
8. 4425 Relief valve 1
9.
4426
Relief valve spring (Z2000,
ZH2000)
1
1240
Relief valve spring (ZX2000,
ZXH2000)
1
10. 4427 Sideplate 2
11. 4428
b
Vane 6
12. 4262-X Vane driver 3
13. 4430-X2R Rotor—shaft assembly 1
14.
4431-X_2
c
Mech seal assy—cast iron 2
4431-X_6
c
Mech seal assy—silicon carbide 2
15. 4432 Thrust bearing assembly 2
16. 4435 Bearing race mounting ring 2
17. 4438 Grease seal 2
18.
4439 Bearing cap shim (.002) red
As
req.
4439-1 Bearing cap shim (.010) brown
4439-2 Bearing cap shim (.020) yellow
19. 2754-X Roller bearing 2
20. 3253 Cam key pin 2
O-ring Code
A Buna-N
B Neoprene
®a
D Viton
®a
E Teflon
®a
Ref.
No.
Part No. Description Qty
21. 2760-244 Retainer ring 2
22. 4441 Grease seal 2
23. 2270 Shaft key—1/4" x 1-9/16" 2
24.
4479-2 Flange–2" NPT 2
4479-2S Flange–2" welded
25. 2649 Nameplate 1
26.
4248
Relief valve nameplate
(Z2000, ZH2000)
1
4248-1
Relief valve nameplate
(ZX2000, ZXH2000)
1
27. 1359 Lubrication instruction plate 2
28. 1343 1/8" NPT relief tting 2
29. 2158 1/8" NPT grease zerk 2
30. 2159 Lubricap 2
31. 3442 1/4" NPT pipe plug 2
32. 2-231_
c
O-ring—ange 2
33. 2-224_
c
O-ring—relief valve cap 1
34. 2-261_
c
O-ring—case 2
35. 7001-031-NC125A Bolt—hexagon head 4
36. 7001-037-NC150A Bolt—hexagon head 16
37. 7001-043-NC125A Bolt—hexagon head 16
38. 7012-006-SF025E Screw 8
39. 7206- 037A Lockwasher 8
40. 4985 Shaft protector 1
41. 7012-010SF050E Screw 2
