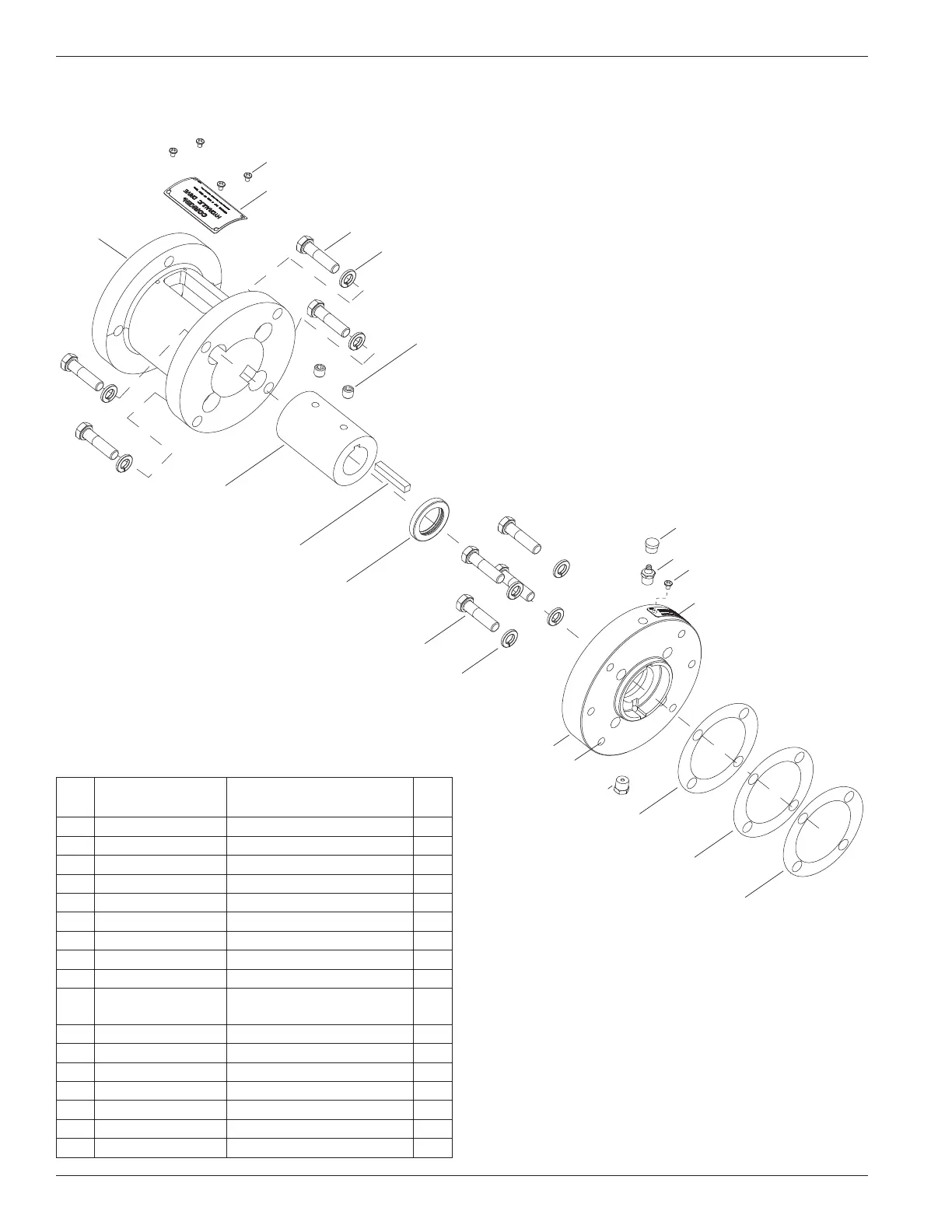

Appendix E—Parts Details for Hydraulic Adapter (4496-1X1)
Fits Models Z4200 and Z4500 Only
Ref.
No.
Part No. Description Qty
1. 1343 Grease relief tting 1
2. 1359 Lubrication plate 1
3. 2158 Grease zerk 1
4. 2159 Lubricap 1
5. 2270 Shaft key 1
6. 4439 Bearing cap shim—0.002" 1
7. 4439-1 Bearing cap shim—0.010" 1
8. 4439-2 Bearing cap shim—0.020" 1
9. 4463 Grease seal 1
10. 4487-2
Hydraulic drive solid
coupling
1
11. 4496-1 Hydraulic drive bracket 1
12. 4939 Hydraulic drive bearing cap 1
13. 4499 Hydraulic drive name plate 1
14. 7001-037NC150A Bolt—hexagon head 8
15. 7006-037NC037A Set screw 2
16. 7012-006SF019E Screw 6
17.
7206- 0 37A Lock washer—0.375"
8
11
13
15
10
3
4
14
17
16
16
5
9
14
17
12
16
2
1
8
6
7
