22 - START-UP
COROB™ D600 - D700 - D800 EXTRA
5.2 Control devices and connections
0
1 3
2 4
5
6
7
8

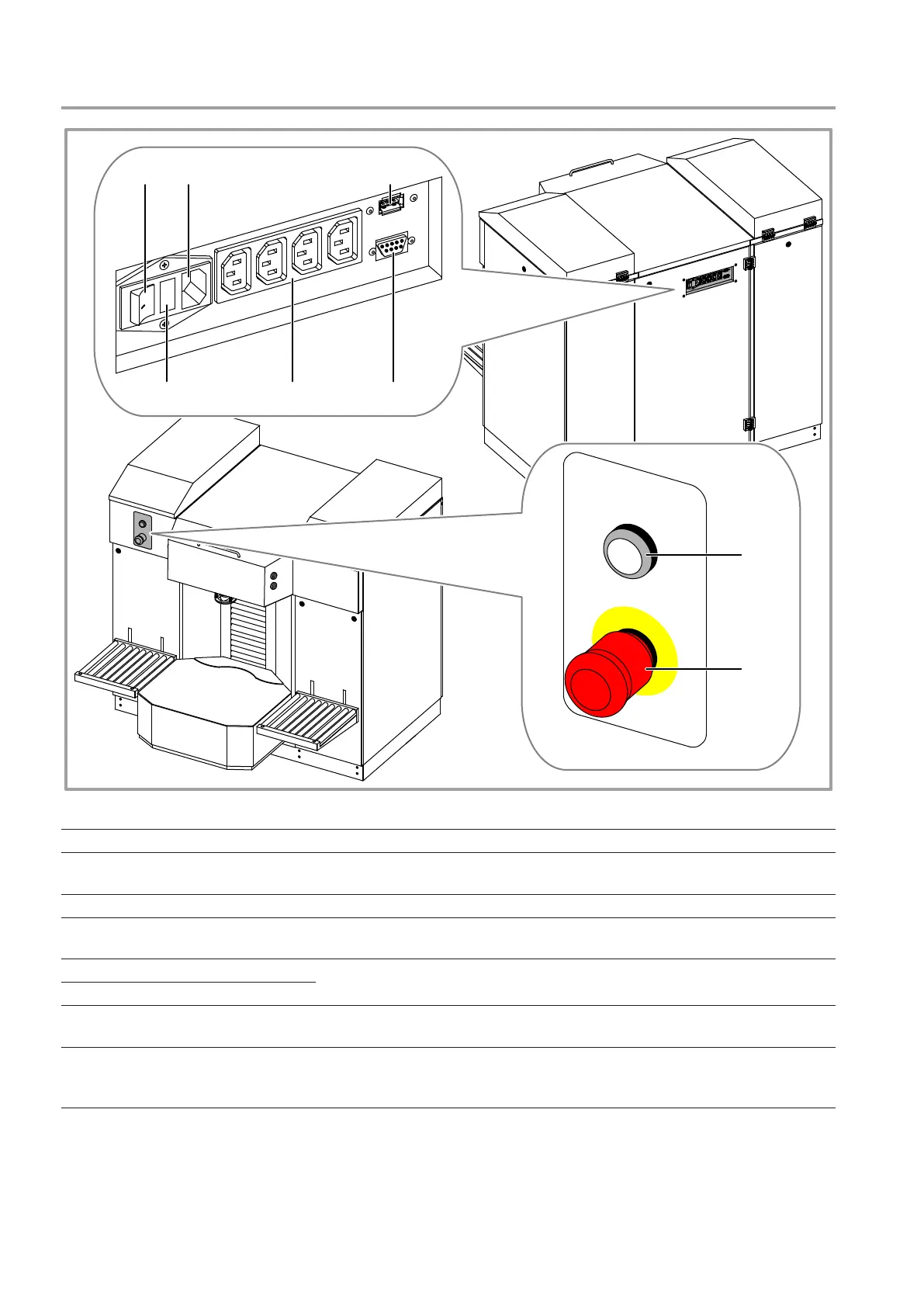

Figure 10
1. Machine main switch.
2. Fuse compartment.
The value of fuses is shown in the technical specications table (chapter
8.1).
3. Main plug.
4. Auxiliary sockets.
Power supply to the computer and other equipment (calibration scale or
label printer).
5. RS232 serial port.
For the connection to the management computer.
6. USB serial port.
7. Off-line button with ON lamp.
To interrupt machine functions, without shutting it off; it also enables to
open and close the Autocap to allow cleaning the nozzles.
8. Emergency button.
Red mushroom-head button. This is the emergency stop button for the
machine, to use in case of a breakdown or dangerous conditions (chapter
5.7).
