5.2 Control devices and connections
0
1
3
6
2
4
5
7

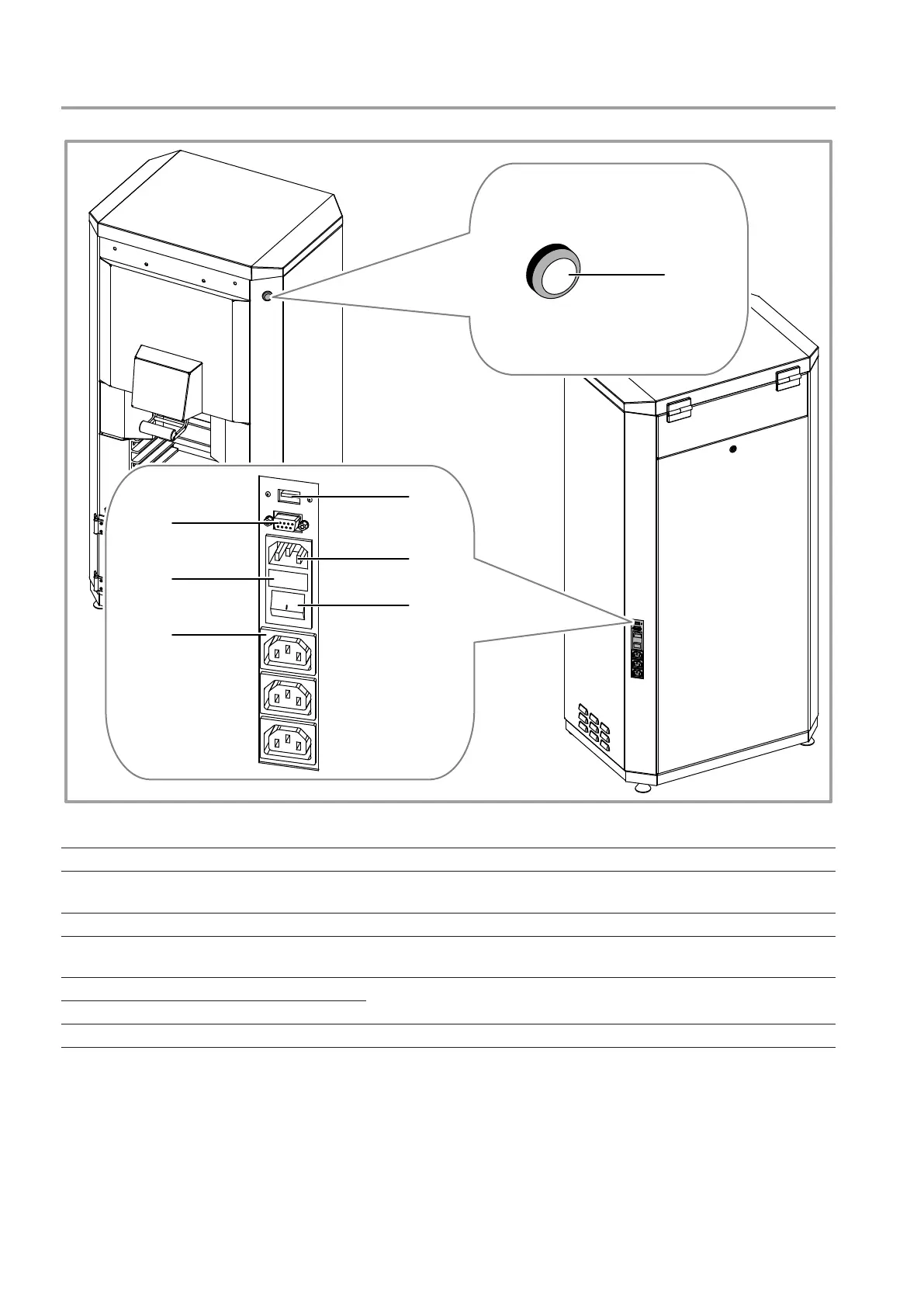

Figure 6
1. Machine main switch.
2. Fuse compartment.
The value of fuses is shown in the technical specications table
(chapter 8.1).
3. Main plug.
4. Auxiliary sockets.
Power supply to the computer and other equipment (calibration
scale or label printer).
5. RS232 serial port.
For the connection to the management computer.
6. USB serial port.
7. Off-line button with ON lamp. To interrupt machine functions, without shutting it off.
