Cosman G4 Radiofrequency Generator Service Manual (SPI 11291 Rev A)

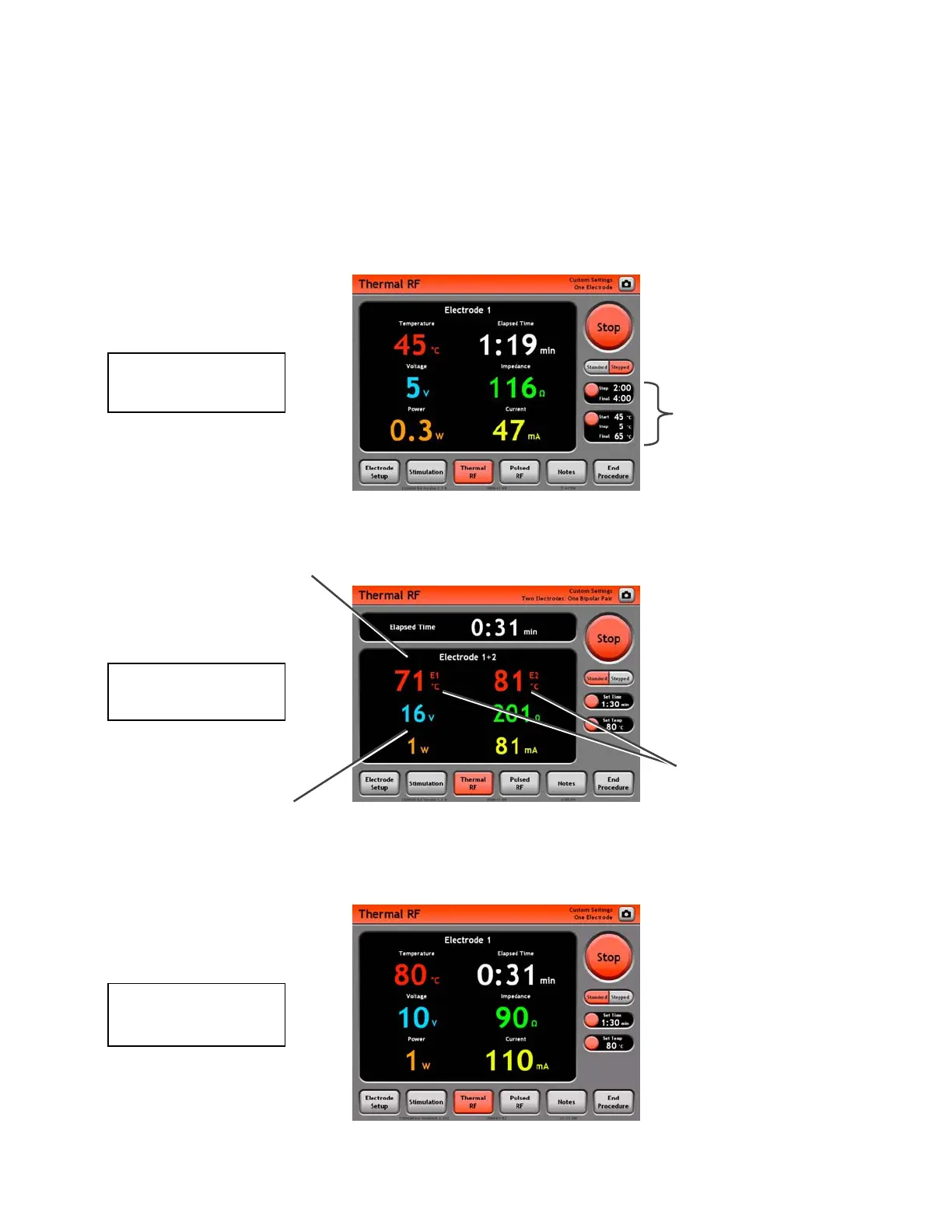

9.2.1 Additional Example Screens
The One Touch Thermal RF screen will appear differently depending on the current settings:
• Electrode Setup settings (see Section 7.1)
• Thermal RF Mode: Standard or Stepped (see Section 9.2.2)
Settings Panels:
Lists the current
Thermal RF settings
for Stepped mode.
Electrode Panel (Black area):
Displays all readings for the
indicated bipolar electrode pair,
e.g. “Electrode 1+2”.
Standard Mode
One Electrode
Standard Mode
One Bipolar Pair
Bipolar readings: Voltage,
Current, Power, and Impedance
between the two electrodes in
the bi
p
olar
p
ai
r
Temperature Readings:
One Temperature reading
from each electrode in
bipolar pair. For instance,
“E1” indicates a reading
from Electrode 1.
Four Electrodes
Stepped Mode
Section 9
