Cosman G4 Radiofrequency Generator Service Manual (SPI 11291 Rev A)
9.2.3 Additional Example Screens

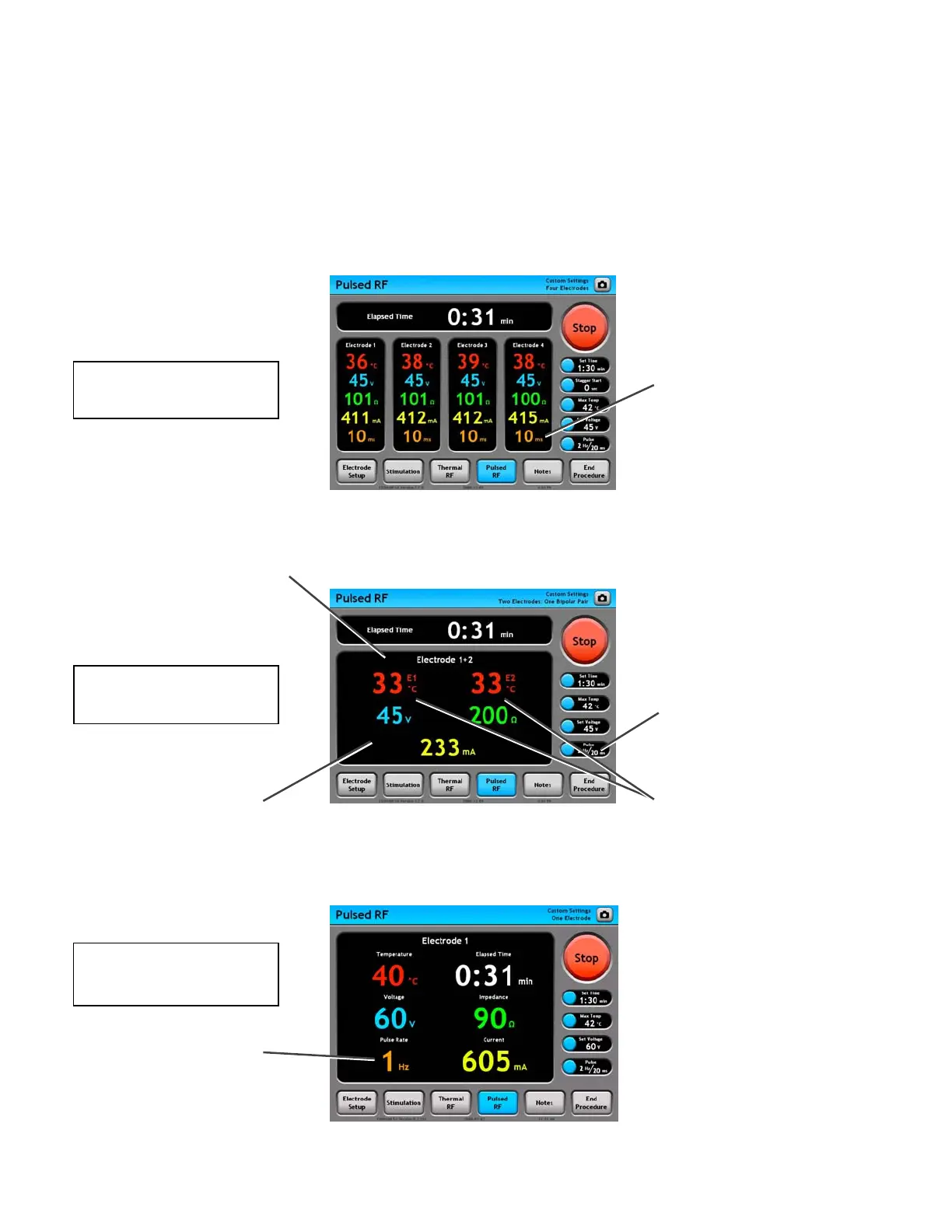

The One Touch Pulsed RF screen will appear differently depending on the current settings:
• Electrode Setup settings (see Section 7.1)
• E-dose setting: Vary Voltage, Vary Width, or Vary Rate (see Section 9.2.4)
E-dose = Vary Width
Four Electrodes
E-dose = Vary Voltage
One Bipolar Pair
E-dose = Vary Rate
One Electrode
Electrode Panel (Black area):
Displays all readings for the
indicated bipolar electrode pair,
e.g. “Electrode 1+2”.
Pulse Rate Reading:
Displayed in units of Hertz
only if E-dose = Vary Rate.
The Pulse Width is fixed at
the value shown in the
Settings Panel.
Bipolar readings: Voltage,
Current, and Impedance
between the two electrodes in
the bi
p
olar
p
ai
r
Pulse Width Reading:
Displayed in units of
milliseconds only if E-dose =
Vary Width. The Pulse Ra
is fixed at the value shown
in the Settings Panel.
te
Pulse Panel: If E-dose =
Vary Width, the Pulse Width
and Pulse Rate are fixed at
the values shown here.
Temperature Readings:
One Temperature reading
from each electrode in
bipolar pair. For instance,
“E1” indicates a reading
from Electrode 1.
Section 9
