1018029-E_03/22Page 5
VENTING
THIS APPLIANCE IS EQUIPPED
WITH A BLOCKED FLUE SWITCH
and the top of the draft diverter, simply push the red button on
then the vent system must be checked and corrected.
NOTE: An existing vent that has worked for years may not be
adequate for today’s appliances because of higher eciency
requirements that result in lower stack temperatures.
(See list of possible causes and corrections on page 23)
Any angle greater than 45 degrees from the vertical is considered
horizontal. The total horizontal run of a vent plus the horizontal
vent connector shall be not greater than 75 percent of the vertical
height of the vent.
is encountered.
WARNING: Do not bypass the blocked ue switch. To do so could expose the consumer to property
damage, personal injury or possible death.
!
WARNING: Operation of this wall furnace when not
connected to a properly installed and maintained
venting system or tampering with the blocked
ue switch can result in Carbon Monoxide (CO)
poisoning and possible death.
!

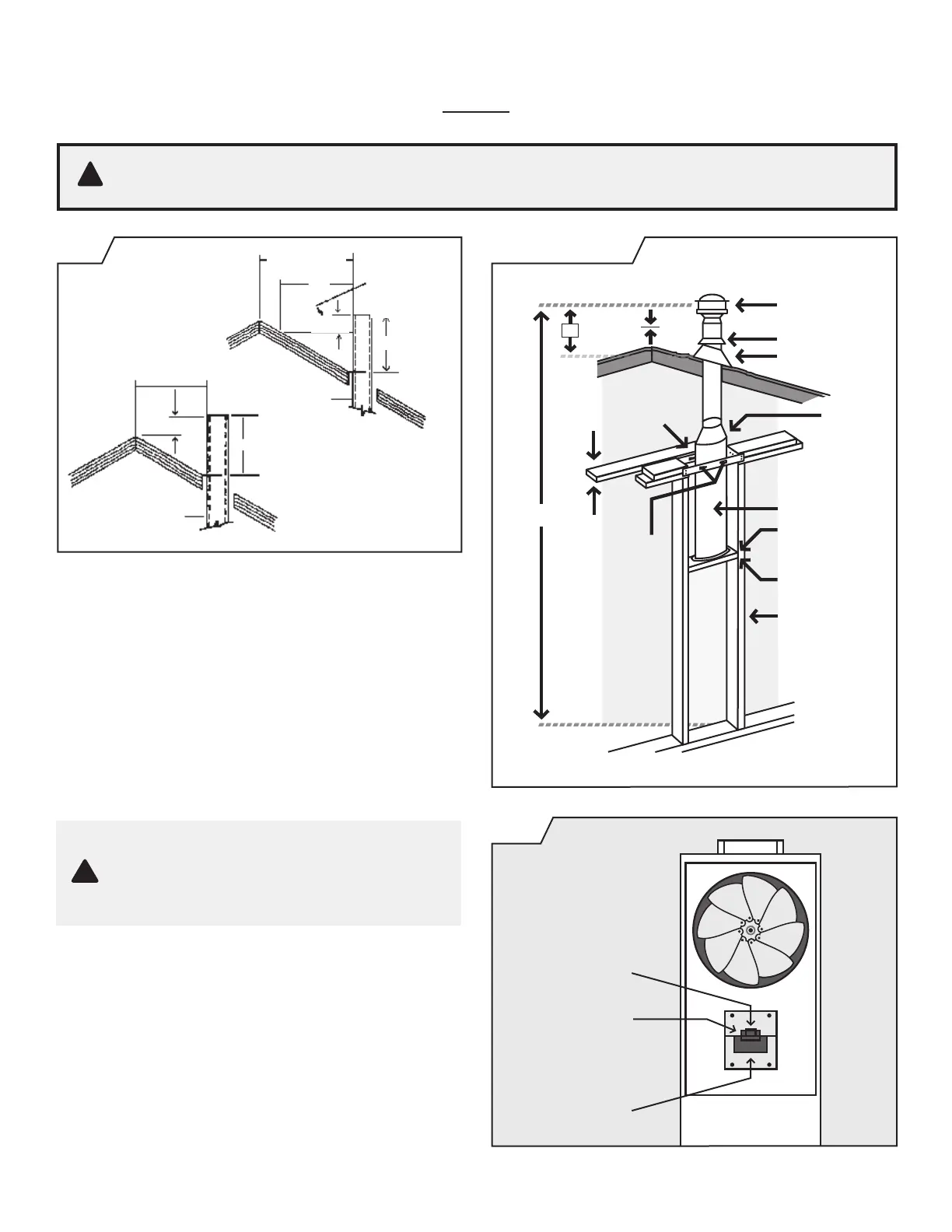

FIG. 1
Chimney
More than 10’
10’
2’ Min.
3’ Min.
Height above
any roof surface
horizontally
10’ or Less
2’ Min.
3’ Min.
Chimney
FIG. 2: Vent Installation
12’ Min.
Listed
Vent Top
Storm Collar
Oval to
Adapter
Vent Pipe
Base Plate
Header Plate
2 x 4
Wall Studs
Ceiling
Plate
Spacer
Lances
Ceiling
Plate
Spacers
Ceiling
Plate
Spacers
2’ Min.
3’
FIG. 3
RED
BUTTON
BLOCKED
FLUE SWITCH
DRAFT
DIVERTER
RELIEF
OPENING
