(3) Space required for inverter mounting on the wall (as shown in Figure
3-3)
The distances between the inverter and the surrounding objects should
meet the following conditions: two sides from the walls ≥11.81 inches; top
distance ≥11.81 inches; bottom distance ≥23.62 inches; the minimum spacing
between two adjacently mounted inverters ≥23.62 inches.

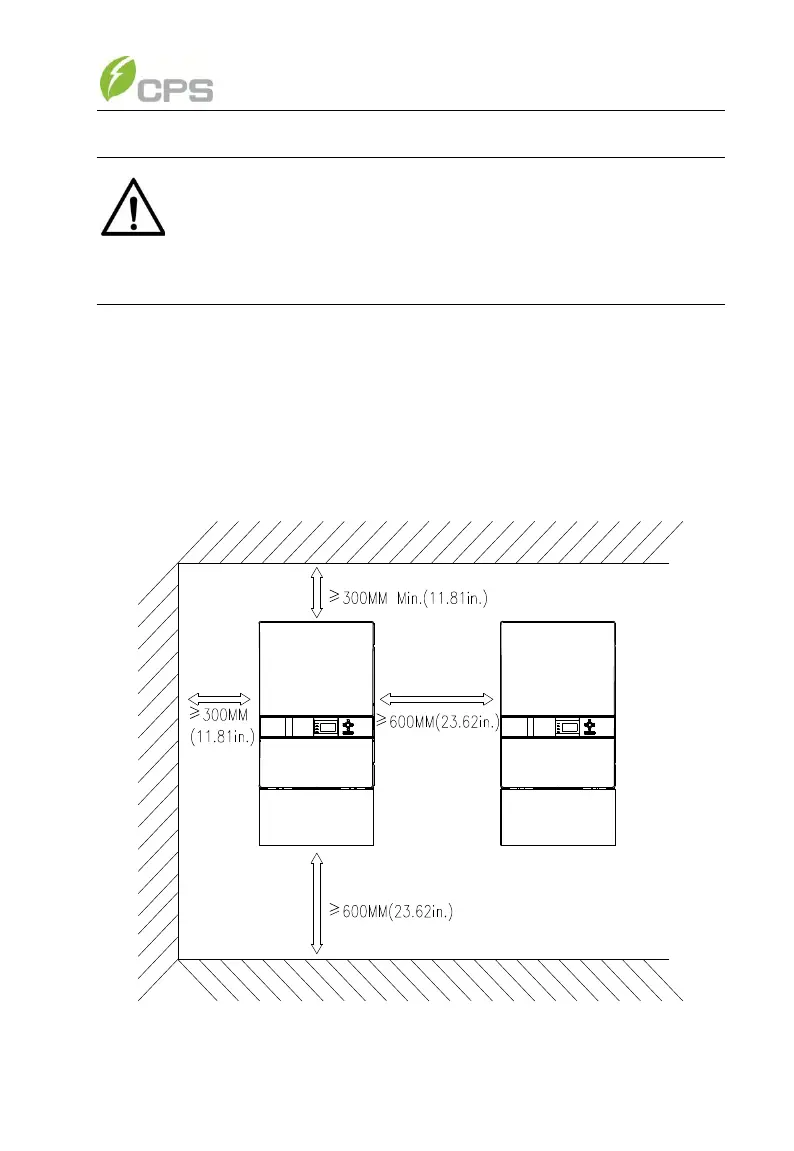

Figure 3-3 Inverter mounting dimensions
NOTICE:
When the inverter is mounted backward by ≤15° outdoor, shield
cover is required to be installed above the inverter to avoid direct
sunlight.
