2) When the volt-watt function is enable, the grid voltage is within
100%~106% (Un ~ 1.06*Un) of the Rated Output Voltage, the inverter
output power (Pn) may reach 100%. When the grid voltage is lower than
the Rated Output Voltage or more than 106%Un, the inverter will limit the
AC Output Current and the output power (Pn) will begin to derate, shown
in Figure 10-3-2.
20%
40%
60%
80%
100%
Po/Pn
0.88*Un Un U
1
U
2
U
H
Grid Voltage (Vac)
volt-watt function enable
P1
P2
100.0%~110.0% Settable

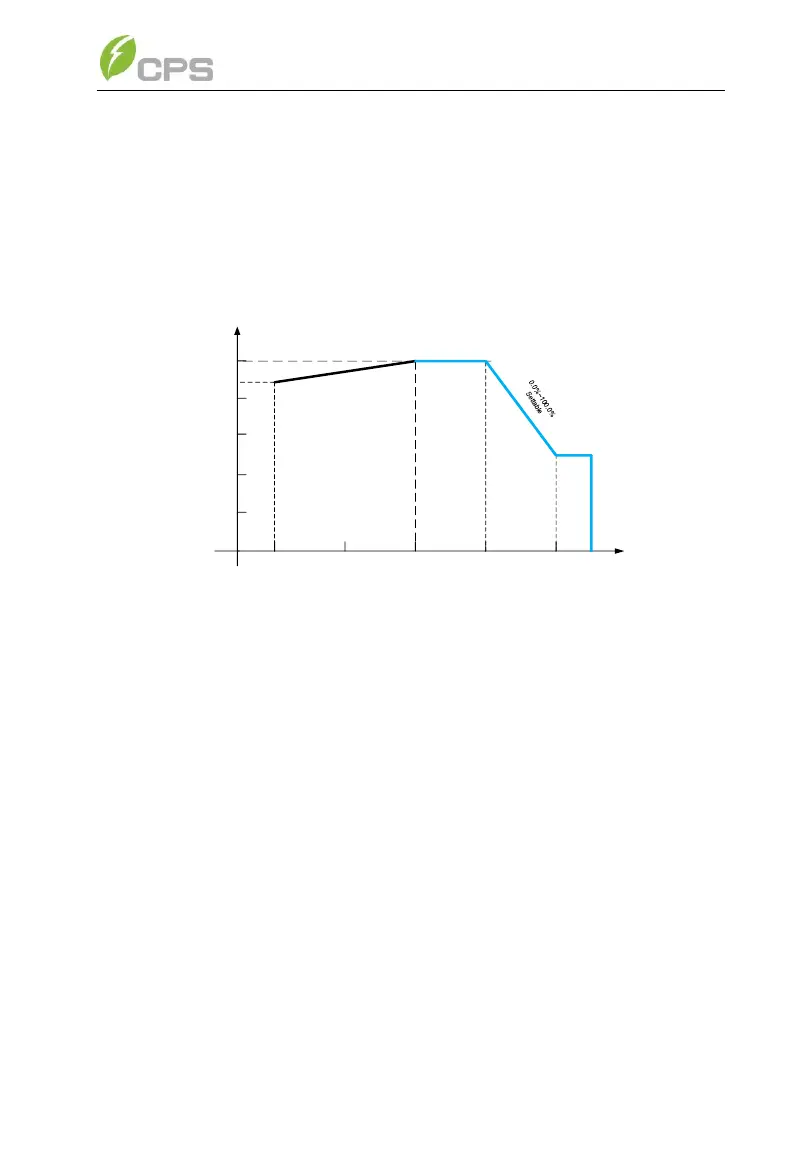

Figure 10-3-2 SCA25KTL-DO/US-208 Derating Curve of Grid Voltage
10.3.4 PV Voltage Derating Graph
When the PV voltage is lower than 480V or higher than 850V, the
inverter begins derating. Derating curve of PV input voltage are as
shown in Figure 10-4.
