2 Overview
2.1 Inverter for grid-tied PV systems
CPS SCA 25KTL-DO/US-208 3-Phase transformerless string inverters are
designed for use with an UNGROUNDED PV array in carport, commercial
rooftop, and large utility scale PV grid-tied systems. The system is generally
made up of PV modules, a 3-Phase String Inverter with a fused

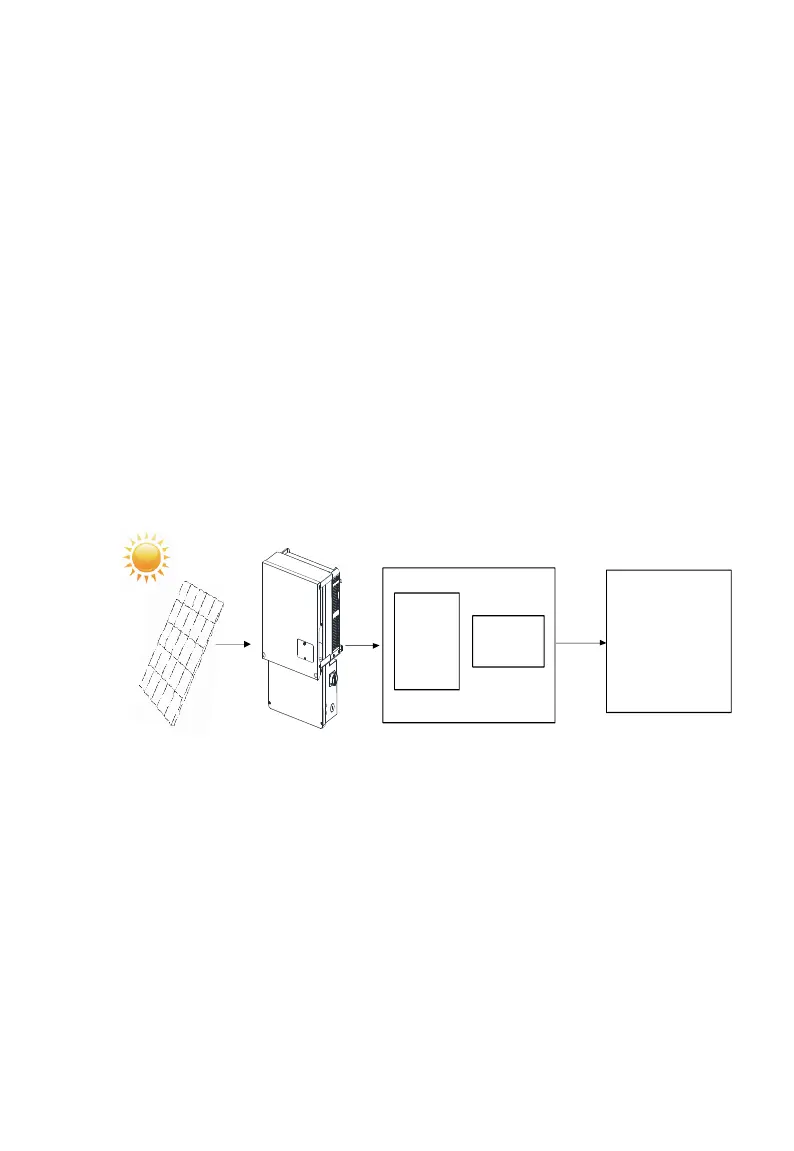

combiner/disconnect, and AC power distribution equipment (Figure 2-1). The
inverter converts the available DC energy from the PV modules to AC power
by synchronizing the output current to the same frequency and phase as the
AC grid. All or part of the AC power is supplied to local loads, and the surplus
power is exported to the electric utility grid.
