CPS SCA25KTL-DO/US-208 - Reactive Power Capability

140

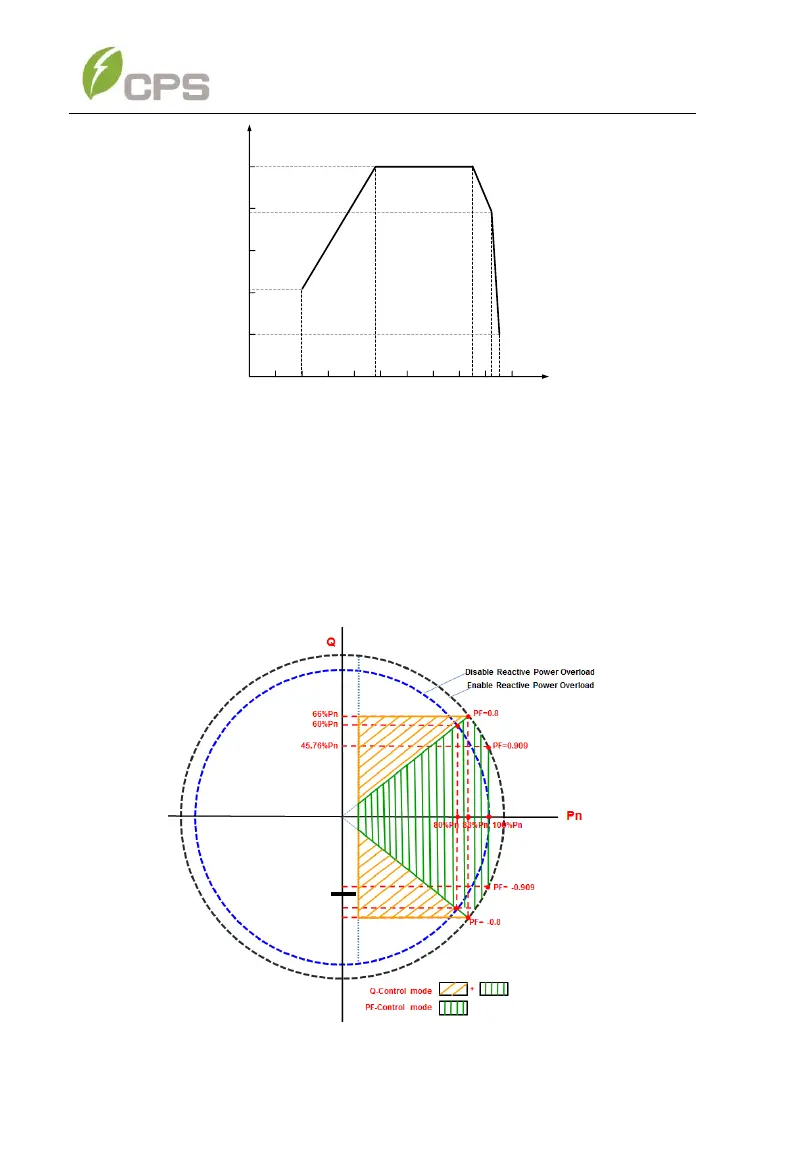

Figure 10-4 SCA25KTL-DO/US-208 Derating Curve of PV Voltage
10.3.5 Reactive Power Capability
The Reactive Power Overload function is disabled by factory default (Max.
AC Apparent Power is 25kVA and Max. AC Output Current is 69.5A).
Contact CPS Customer Service if you want to enable the function.
Figure 10-5 SCA25KTL-DO/US Reactive Power Capability
PInx/PInn
19%
41.5%
60%
80%
100%
200
PV Voltage (V)
1000500
850
400100 300 700
480
600 800
900
920
79%
950
10%
