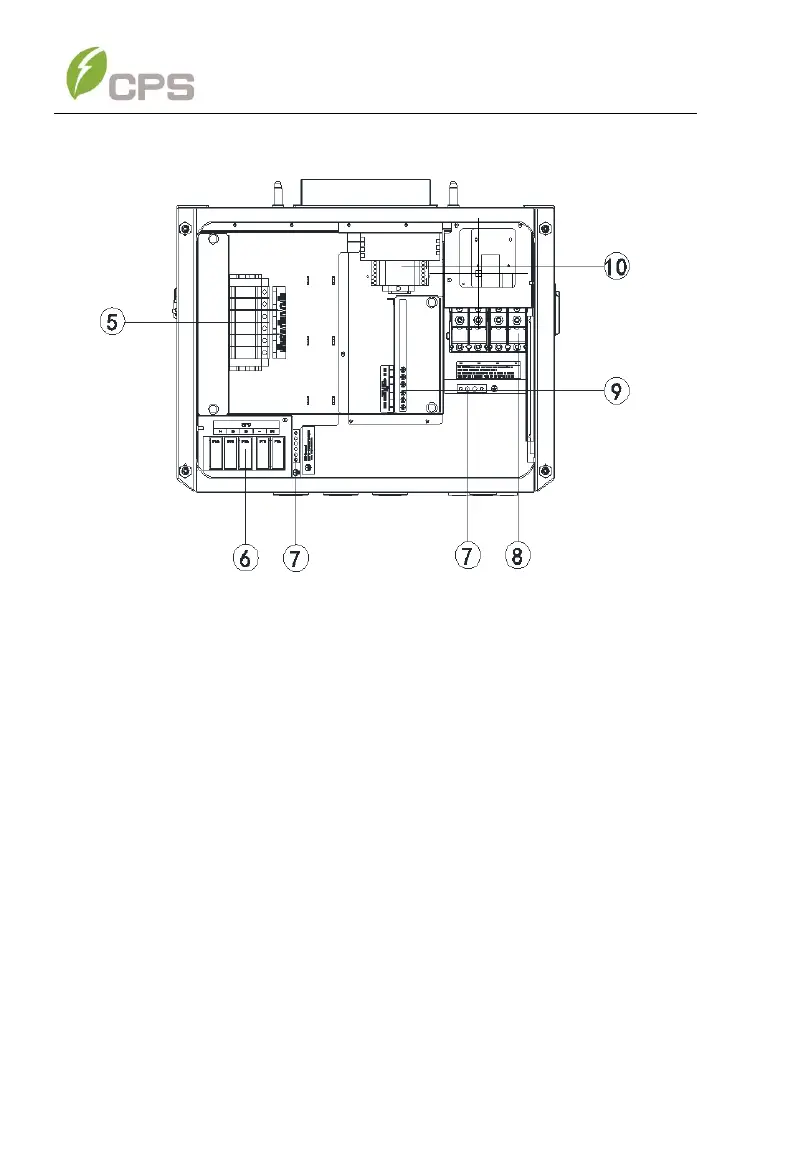

Figure 3-211 Internal Connection Points within the wirebox
（only for CPS SCA25KTL-DO/US-208）
⑤ DC Input fuse holder/terminal
⑥ DC SPD (Surge Protective Device)
⑦ Internal ground terminal(s)
⑧ AC output terminal block
⑨ Negative DC input busbar
⑩ Rapid Shutdown transmitter
