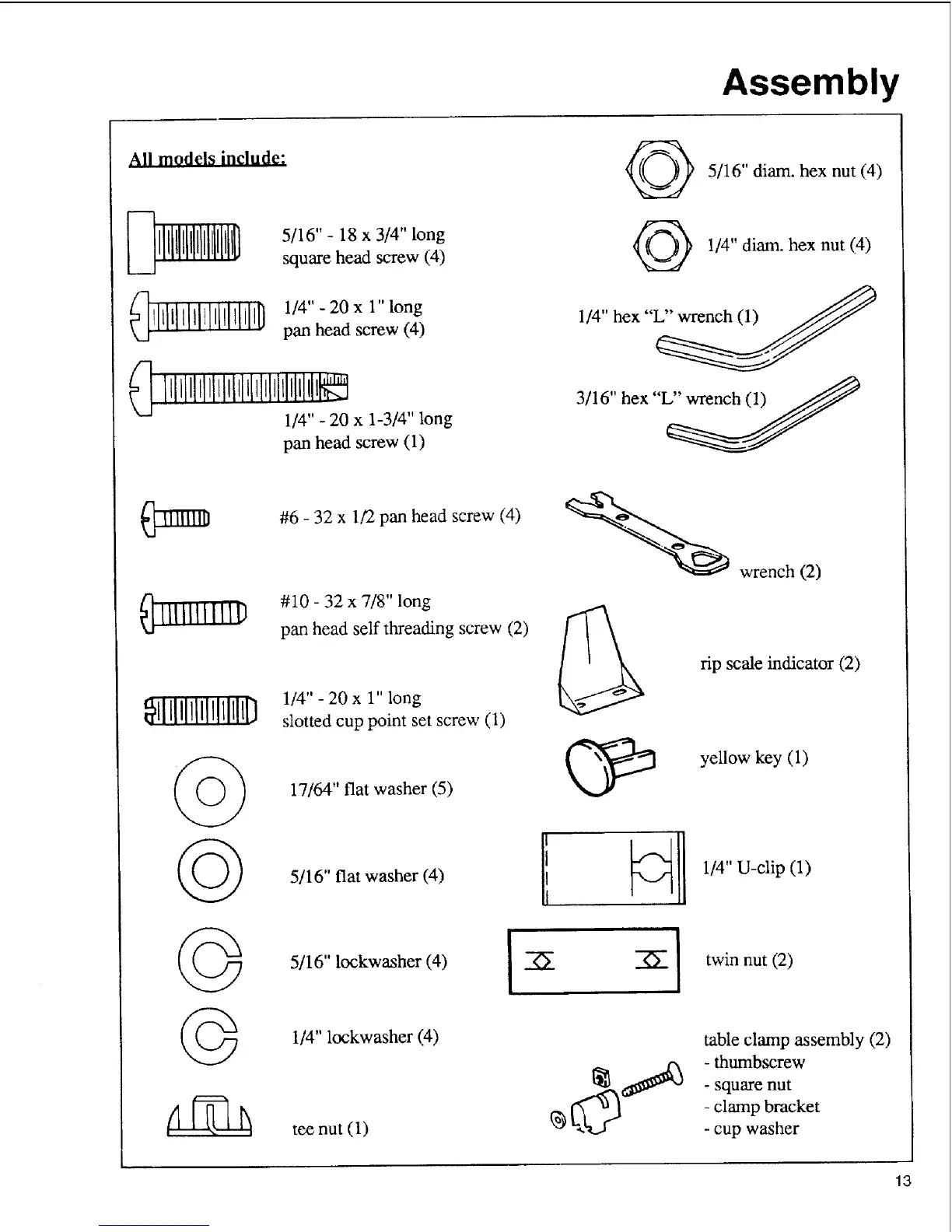

Assembly
All models include:
5/16" - 18 x 3/4" long
square head screw (4)
_llqqillllll[tllllliO1/4"-20x 1"long
pan head screw (4)
_ IillJllilll_liH_l_l_lilllllil,lt_
1/4" - 20 x 1-3/4" long
pan head screw (1)
5/16" diam. hex nut (4)
1/4" diam. hex nut (4)
1/4" hex "_
3/16" hex "L'_
_lllllllllll)
_illllllllltlllllil7
©
©
©
#6 - 32 x 1/2 pan head screw (4)
#10 - 32 x 7/8" long
pan head self threading screw (2)
1/4" - 20 x 1" long
slotted cup point set screw (1)
17/64" fiat washer (5)
5/16" flat washer (4)
5/16" lockwasher (4)
1/4" lockwasher (4)
i
tee nut (1)
wrench (2)
rip scale indicator (2)
yellow key (1)
1/4"U-clip (1)
--6"
] twin nut (2)
table clamp assembly (2)
- thumbscrew
- square nut
- clamp bracket
- cup washer
13
