Craftsman 113.196421 - Diam. Hex

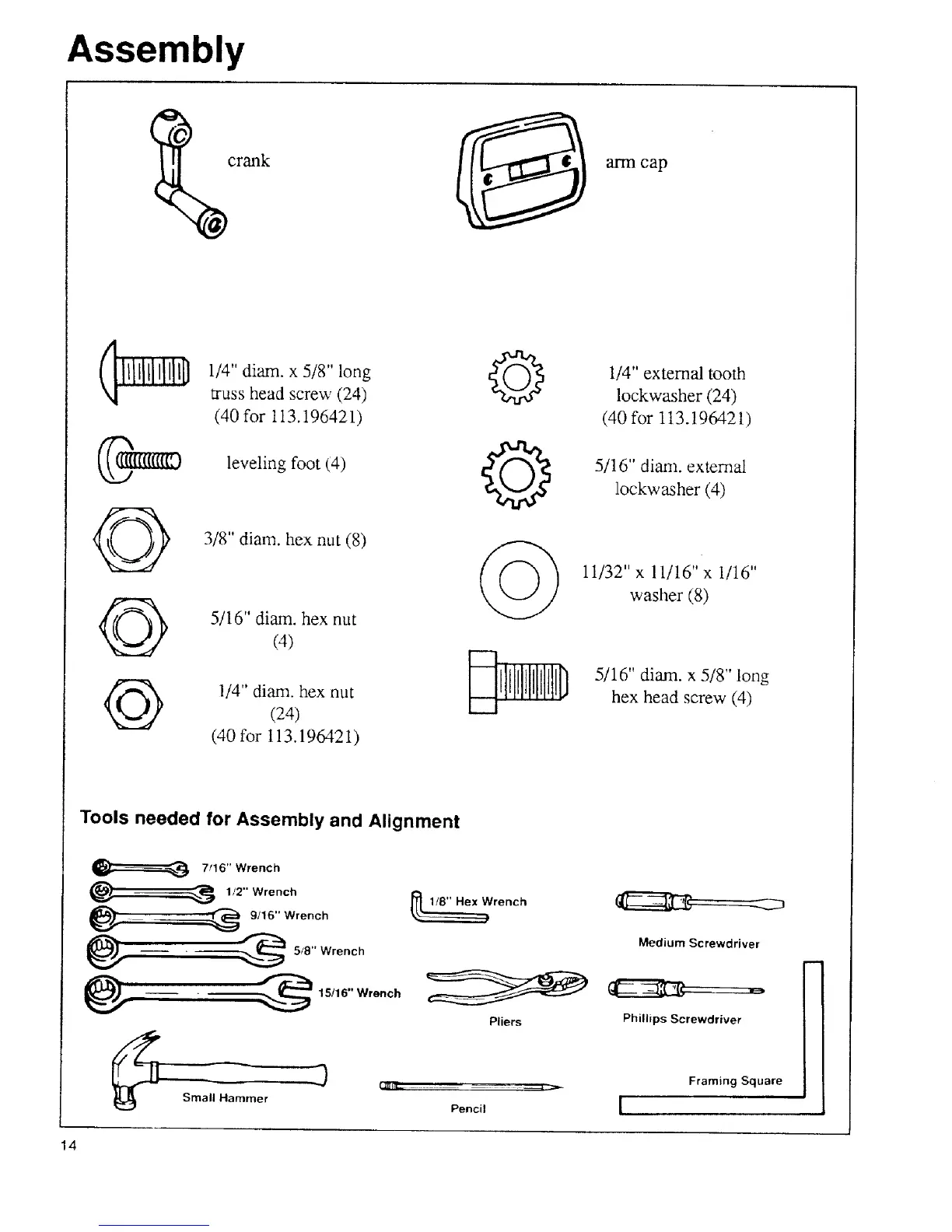

Assembly
crank
arm cap
C)
@
©
1/4" diam. x 5/8" long
truss head screw (24)
(40 for 113.196421)
leveling foot (4)
3/8" diatn, hex nut (8)
5/16" diam. hex nut
(4)
1/4" diam. hex nut
(24)
(40 for 113.196421)
©
@
@
1/4" external tooth
lockwasher (24)
(40 for 113.196421)
5/16" diam. external
lockwasher (4)
11/32" x 11/16" x 1/16"
washer (8)
5/16" diam. x 5/8" long
hex head screw (4)
Tools needed for Assembly and Alignment
7116" Wrench
@' _ 1,'2" Wrench
@ ........ @ 9/16"Wrench
15/16" Wrench
Small Hammer
Wrench
Medium Screwdriver
Pliers Phillips Screwdriver
Pencil
Framing Square
