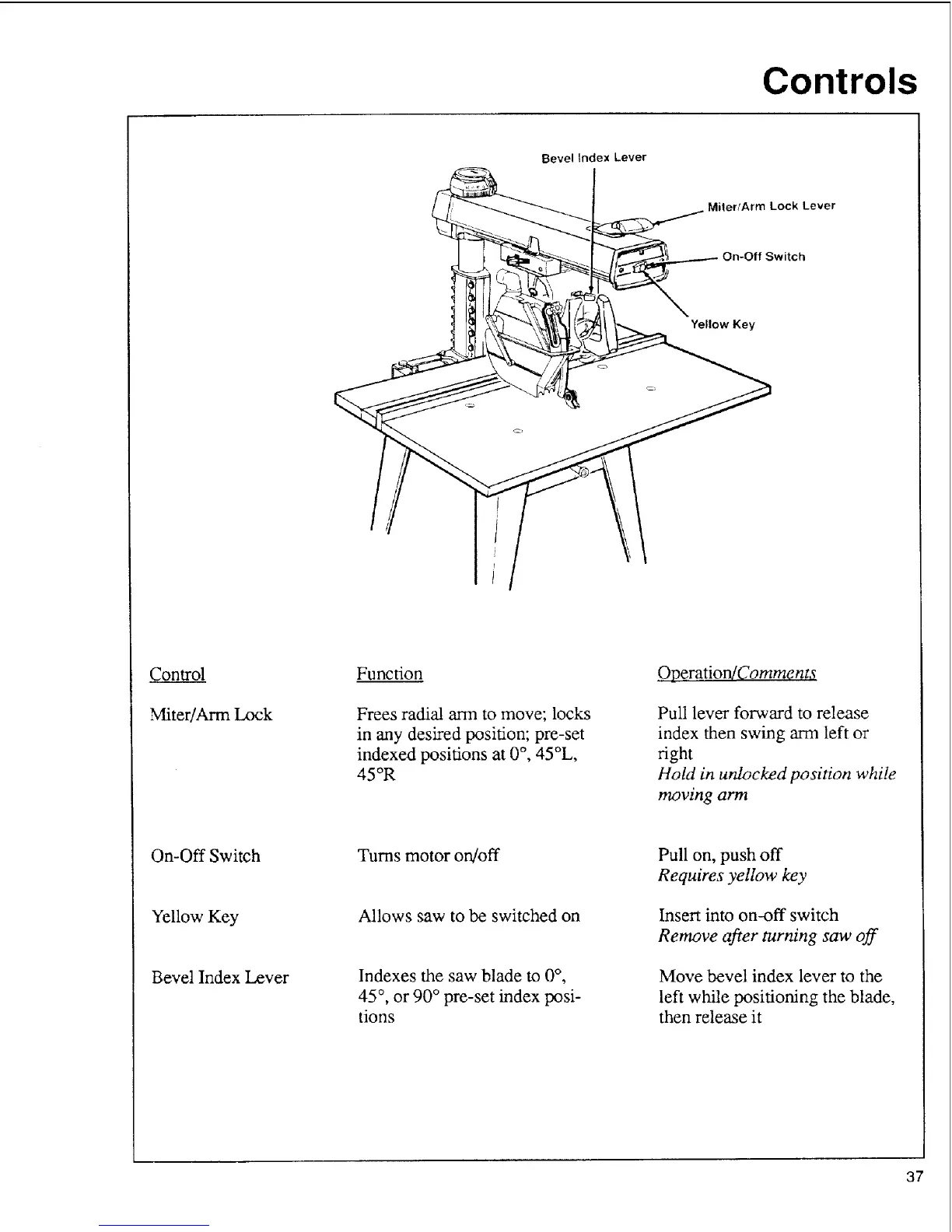

Controls
Bevel Index Lever
r Lock Lever
Yellow Key
Control
_ter/Arm Lock
Function
Frees radial ann to move; locks
in any desired position; pre-set
indexed positions at 0 °, 45°L,
45°R
Operation/Comments
Pull lever forward to release
index then swing ann left or
right
Hold in unlocked position while
moving arm
On-Off Switch
Yellow Key
Bevel Index Lever
Turns motor on/off
Allows saw to be switched on
Indexes the saw blade to 0°,
45 °, or 90 ° pre-set index posi-
tions
Pull on, push off
Requires yellow key
Insert into on-off switch
Remove after turning saw off
Move bevel index lever to the
left while positioning the blade,
then release it
37
