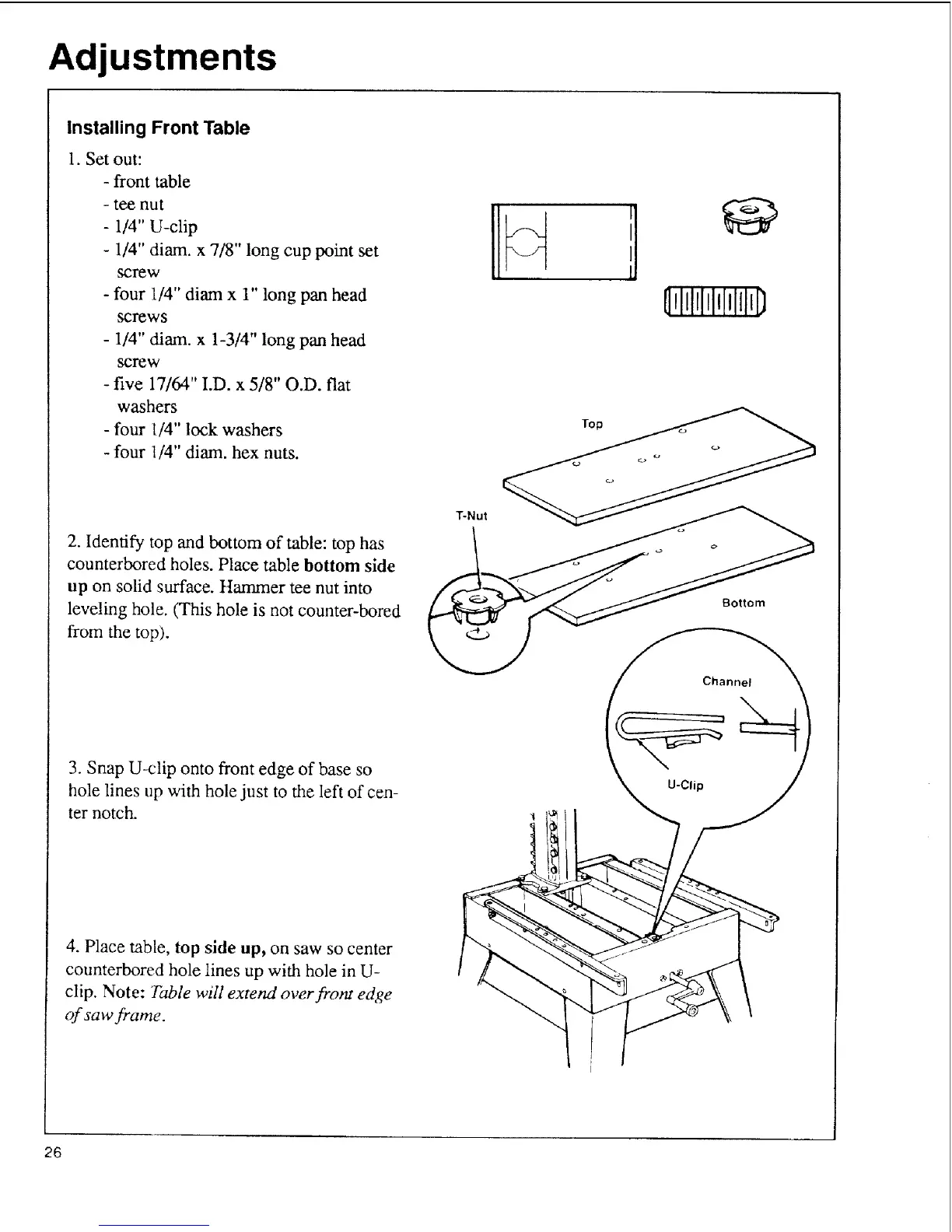

Craftsman 113.196421 - Installing Front Table; Pan Head

Adjustments
Installing Front Table
1. Set out:
- front table
- tee nut
- 1/4" U-clip
- 1/4" diam. x 7/8" long cup point set
screw
- four 1/4" diam x 1" long pan head
screws
- 1/4" diam. x 1-3/4" long pan head
screw
- five 17/64" I.D. x 5/8" O.D. flat
washers
- four l/4" lock washers
- four 1/4" diam. hex nuts.
2. Identify top and bottom of table: top has
counterbored holes. Place table bottom side
up on solid surface. Hammer tee nut into
leveling hole. (This hole is not counter-bored
from the top).
T-Nut
3. Snap U-clip onto front edge of base so
hole lines up with hole just to the left of cen-
ter notch.
4. Place table, top side up, on saw so center
counterbored hole lines up with hole in U-
clip. Note: Table will extend over front edge
of saw frame.
26
