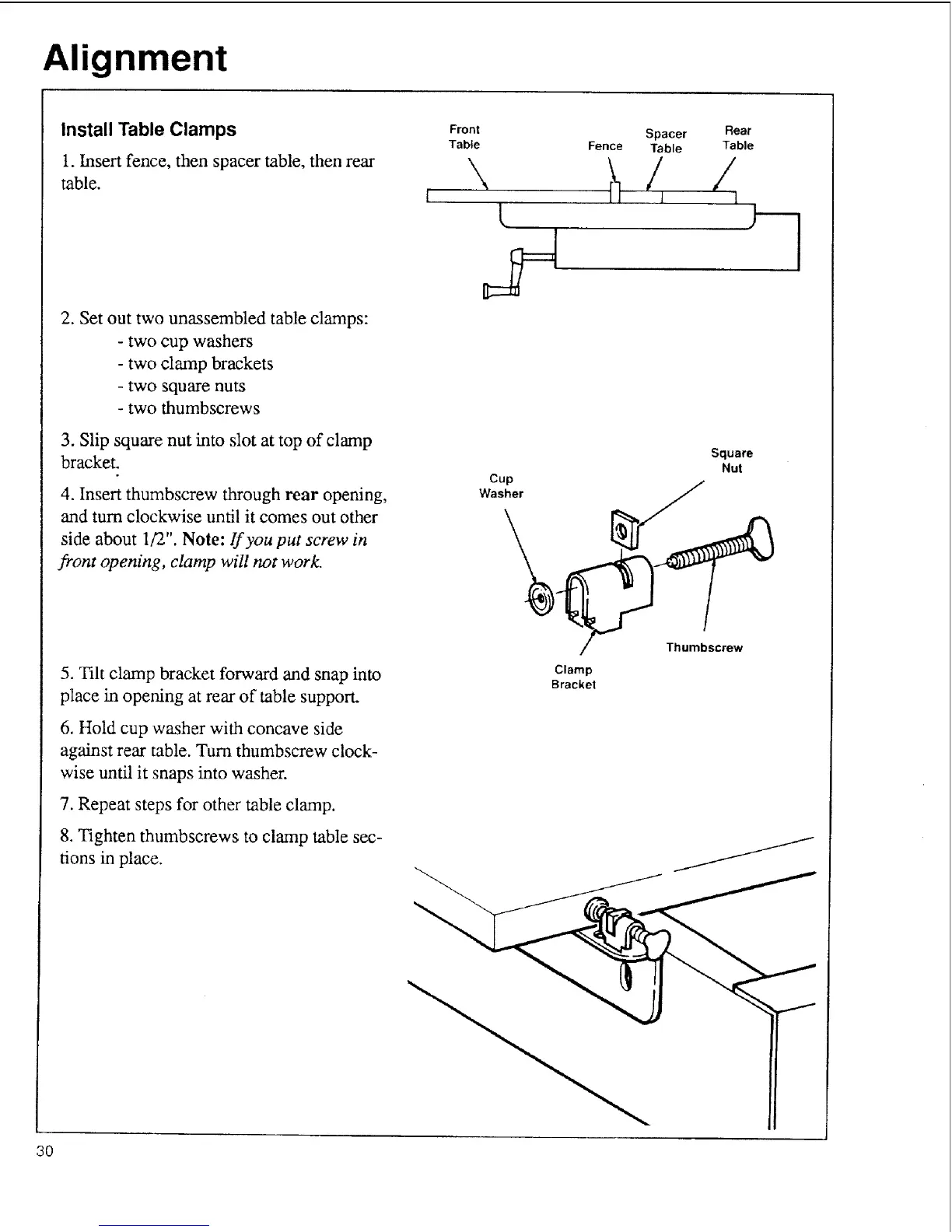

Ali nment
Install Table Clamps
1. Insert fence, then spacer table, then rear
table.
2. Set out two unassembled table clamps:
- two cup washers
- two clamp brackets
- two square nuts
- two thumbscrews
3. Slip square nut into slot at top of clamp
bracket.
4. Insert thumbscrew through rear opening,
and turn c!ockwise until it comes out other
side about 1/2". Note: If you put screw in
front opening, clamp will not work.
5. Tilt clamp bracket forward and snap into
place in opening at rear of table support.
6. Hold cup washer with concave side
against rear table. Turn thumbscrew clock-
wise until it snaps into washer.
7. Repeat steps for other table clamp.
8. Tighten thumbscrews to clamp table sec-
tions in place.
Front
Table
\
Spacer Rear
Fence Table Table
L
Square
Nut
waCshPr .__
Thumbscrew
Clamp
Bracket
3O
