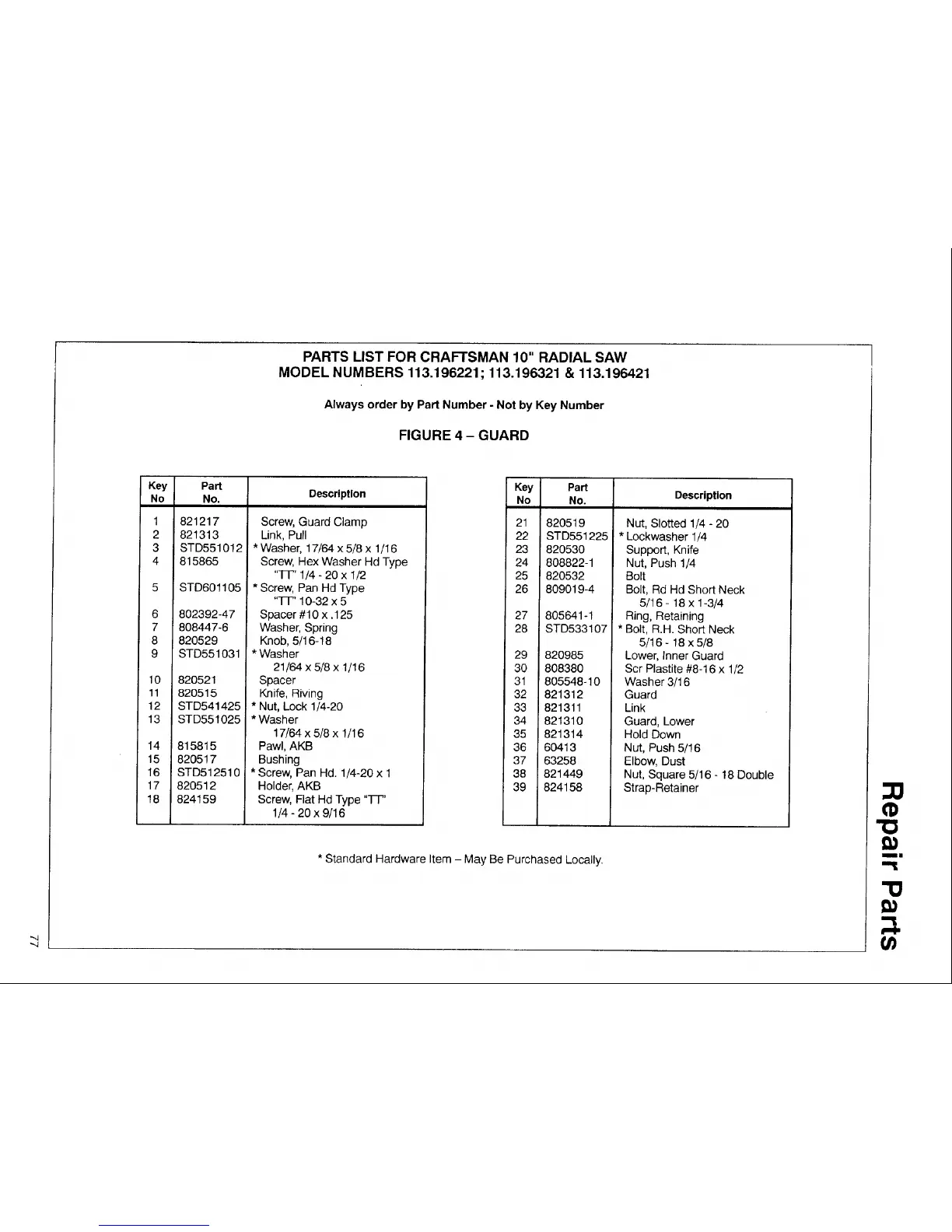

PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW
MODEL NUMBERS 113.196221; 113.196321 & 113.196421
Always order by Part Number - Not by Key Number
Key Part
No No. Description
1
2
3
4
6
7
8
9
10
11
12
13
14
15
16
17
18
FIGURE 4 - GUARD
821217
821313
STD551012
815865
STD601105
802392-47
808447-6
820529
STD551031
820521
820515
STD541425
STD551025
815815
820517
STD512510
820512
824159
Screw, Guard Clamp
Link, Purl
* Washer, 17/64 x 5/8 x 1/16
Screw, He)( Washer Hd Type
"IT' 1/4 - 20 x 1/2
* Screw, Pan Hd Type
"-IT' 10-32 x 5
Spacer #10 x ,125
Washer, Spring
Knob, 5/16-18
* Washer
21/64 x 5/8 x 1/16
Spacer
Knife, Riving
* Nut, Lock 1/4-20
* Washer
17/64 x 5/8 x 1/16
Pawl, AKB
Bushing
* Screw, Pan Hd. 1/4-20 x 1
Holder, AKB
Screw, Flat Hd Type "TT"
1/4- 20 x 9/16
Key Part
No No. Description
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
820519
STD551225
820530
808822-1
820532
809019-4
805641-1
STD533107
820985
808380
805548-10
821312
821311
82131O
821314
60413
63258
821449
824158
Nut, Slotted 1/4 - 20
* Lockwasher 1/4
Support, Knife
Nut, Push 1/4
Bolt
Bolt, Rd Hd Short Neck
5/16 - 18 x 1-3/4
Ring, Retaining
* Bolt, R.H. Short Neck
5/16 - 18 x 5/8
Lower, Inner Guard
Scr Plastite #8-16 x 1/2
Washer 3/16
Guard
Link
Guard, Lower
Hold Down
Nut, Push 5/16
Elbow, Dust
Nut, Square 5/16 - 18 Double
Strap-Retainer
* Standard Hardware Item - May Be Purchased Locally.
