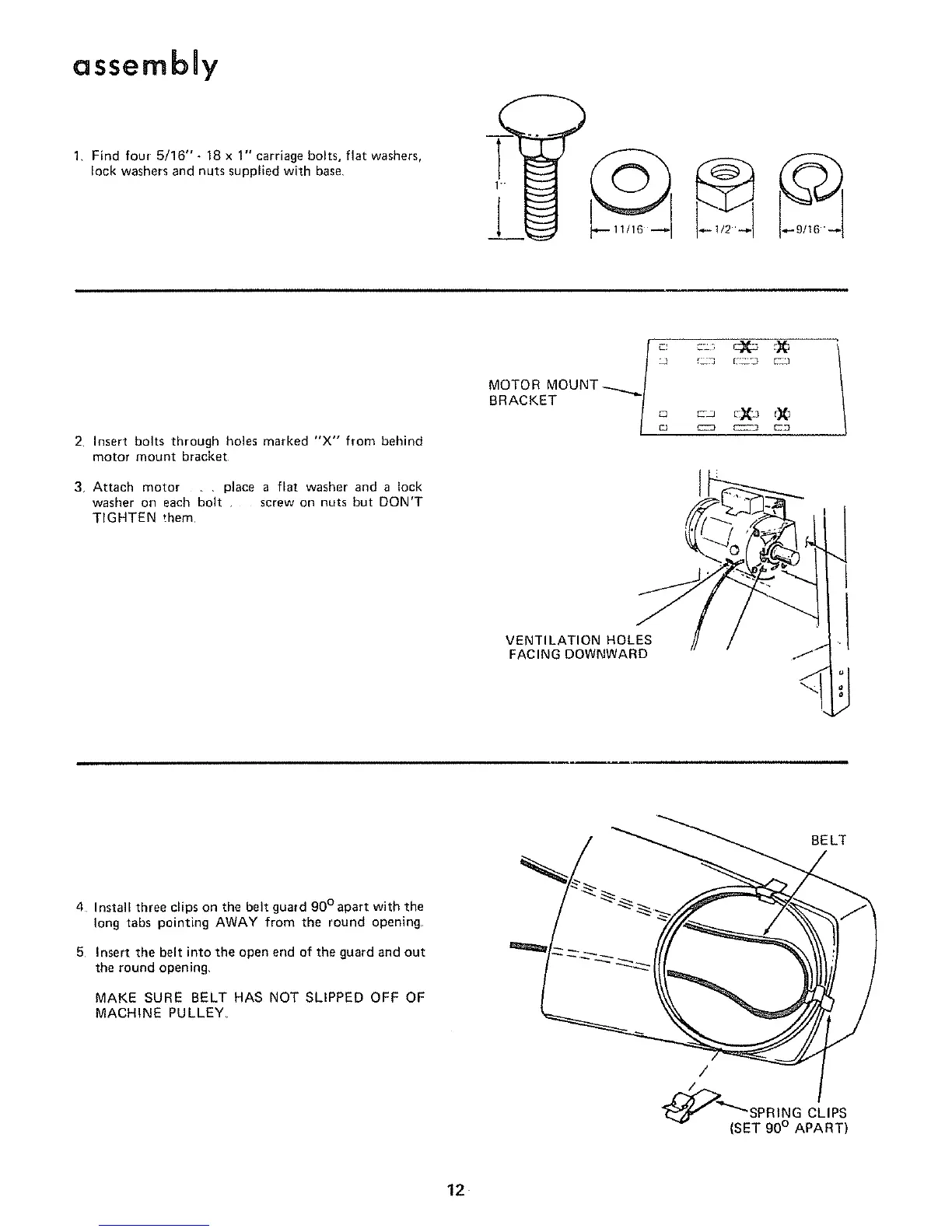

assembly
1, Find four 5/16" _ 18 x 1" carriage bolts, flat washers,
lock washers and nuts supplied with base,
2 Insert bolts through holes marked "X'" from behind
motor mount bracket
3 Attach motor , place a flat washer and a lock
washer on each bolt screw on nuts but DON'T
TIGHTEN them
MOTOR MOUNT
BRACKET _"_'/ __ _ __T_c)_;_rX_
VENTILATION HOLES
FACING DOWNWARD
4 Install three clips on the belt guard 90°apart with the
long tabs pointing AWAY from the round opening,
5 Insert the belt into the open end of the guard and out
the round opening,
MAKE SURE BELT HAS NOT SLIPPED OFF OF
MACHINE PULLEY
/
SPRING CLIPS
(SET 90° APART)
12 ¸
