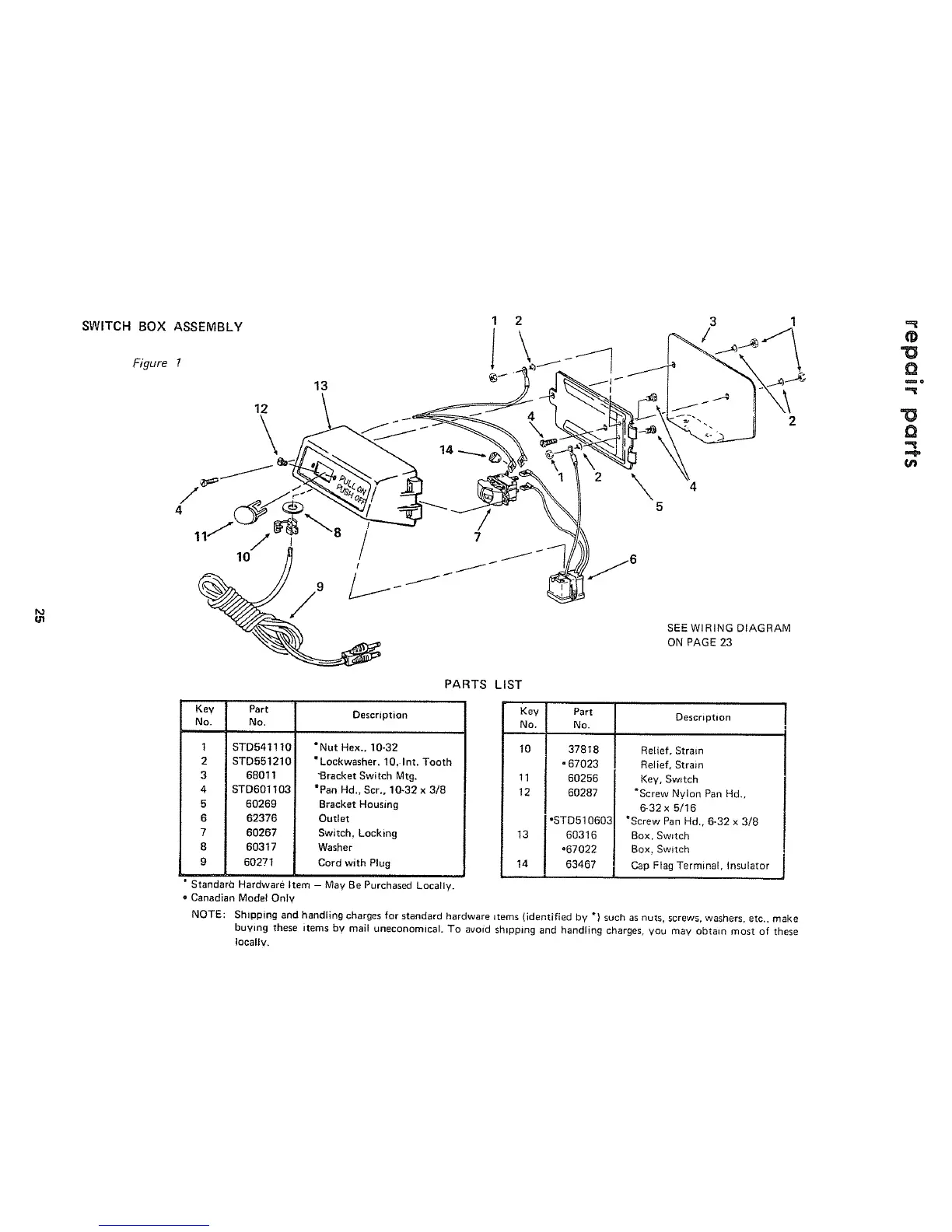

SWITCH BOX ASSEMBLY
2
I
2
\
5
3
/
2
Q
mo
Q
SEE WIRING DIAGRAM
ON PAGE 23
PARTS LIST
Key Part
No. No.
1 STD541110
2 STD551210
3 68011
4 STD601103
5 60269
6 62376
7 60267
8 60317
9 60271
Description
*Nut Hex,, 10-32
*Lockwasher, 10, Int. Tooth
"Bracket Switch Mtg,
*Pan Hd. Scr., 10-32 x 3/8
Bracket Housing
Outlet
Switch, Locking
Washer
Cord with Plug
• Standara Hardware Item - May Be Purchased Locally.
= Canadian Model Only
Key
No.
10
11
12
13
t4
Part
No.
37818
•67023
60256
60287
°STD510603
60316
°67022
63467
Description
Relief, Strain
Relief, Strain
Key, Swltch
*Screw Nylon Pan Hd.,
6-32x 5/16
*Screw Pan Hd., 6-32 x 3/8
Box. Switch
Box, Switch
Cap Flag Terminal, Insulator
NOTE: Shipping and handling charges for standard hardware items (identified by *) such as nuts. screws, washers, etc., make
buying these items bv mail uneconomical. To avoid shipping and handling charges, you may obtain most of these
locally.
