CABLE MOTOR
IANGER CORD

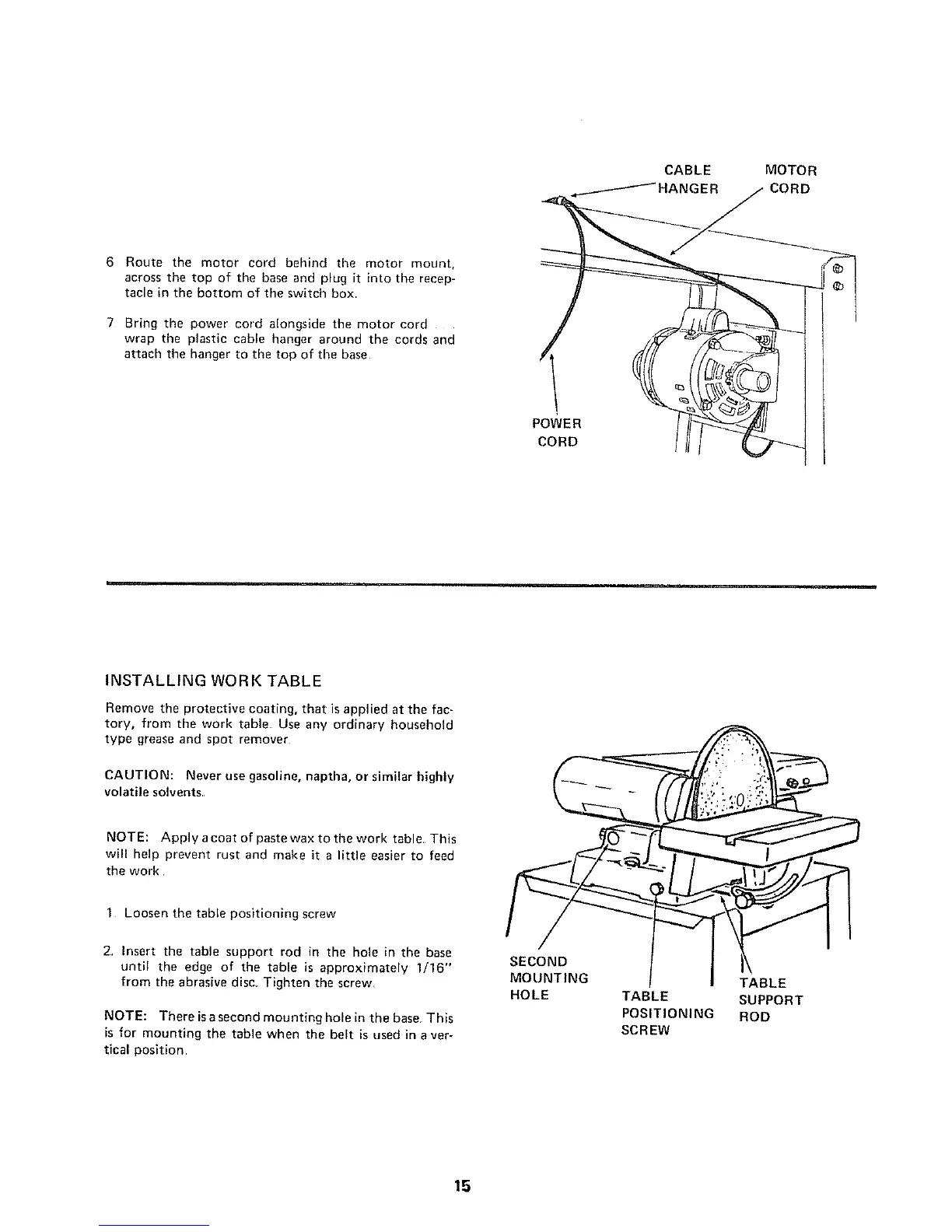

6 Route the motor cord behind the motor mount,
across the top of the base and plug it into the recep-
tacle in the bottom of the switch box
7 Bring the power cord alongside the motor cord
wrap the plastic cable hanger around the cords and
attach the hanger to the top of the base
POWE R
CORD
INSTALLING WORK TABLE
Remove the protective coating, that is applied at the fac-
tory, from the work table Use any ordinary household
type grease and spot remover
CAUTION: Never use gasoline, naptha, or similar highly
volatile solvents
NOTE: Apply acoat of paste wax to the work table This
will help prevent rust and make it a little easier to feed
the work
1 Loosen the table positioning screw
2 Insert the table support rod in the hole in the base
until the edge of the table is approximately 1/16"
from the abrasive disc. Tighten the screw,
NOTE: There isa second mounting hole in the base This
is for mounting the table when the belt is used in aver-
tical position
SECOND
MOUNTING
HOLE
TABLE
TABLE SUPPORT
POSITIONING ROD
SCREW
15
