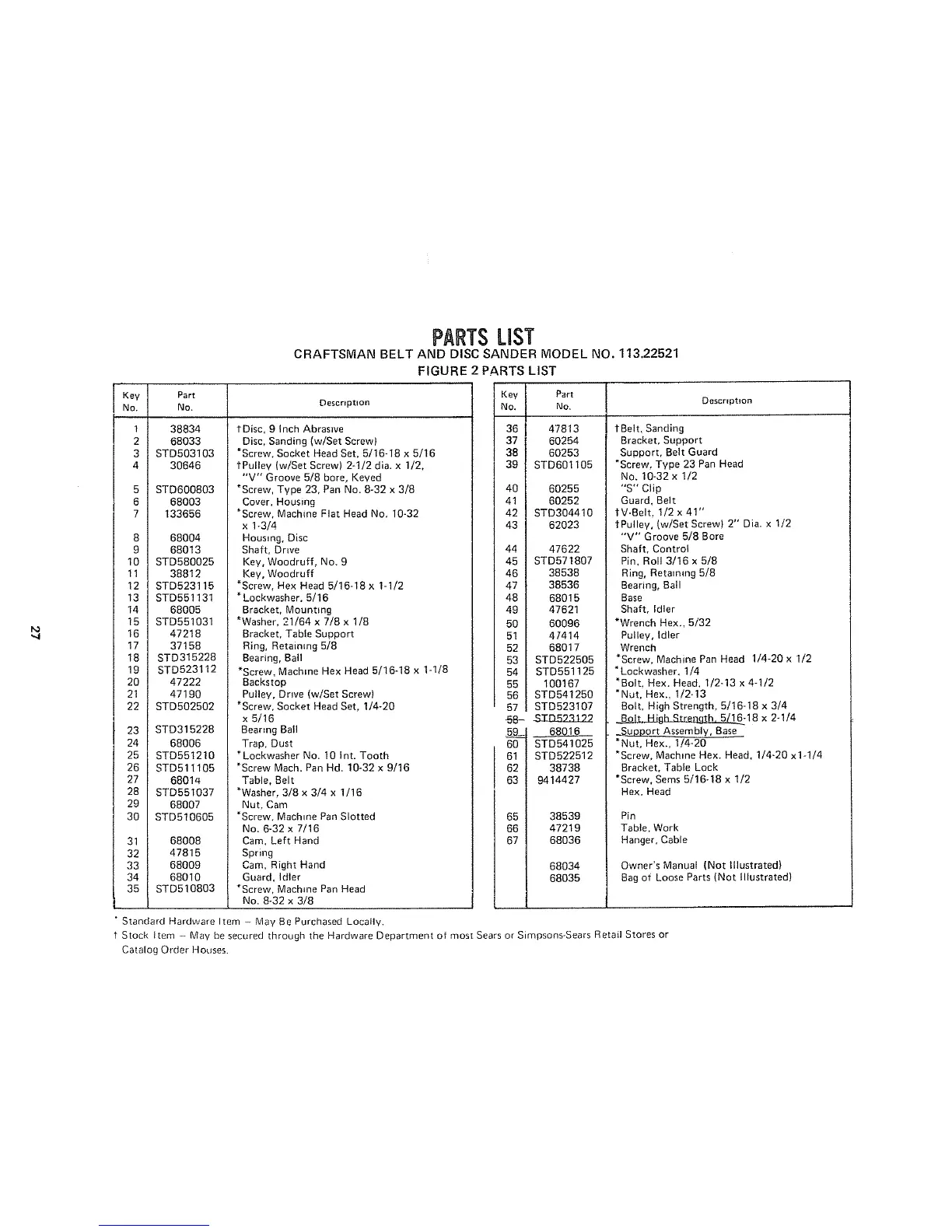

PARTSLiST
CRAFTSMAN BELT AND DISC SANDER MODEL NO. 113.22521
FIGURE
Key Part
No. No. Descrtpnon
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
38834
68033
STD503103
30646
STD600803
68003
133656
68004
68013
STD580025
38812
STD523115
STD551131
68005
STD551031
47218
37158
STD315228
STD523112
47222
47190
STD502502
STD315228
68006
STD551210
STD511105
68014
STD551037
68007
STD510605
68008
47815
68009
68010
STD510803
1Disc, 9 inch Abrasive
Disc, Sanding (w/Set Screw)
*Screw. Socket Head Set, 5/16-18 x 5/16
tPulley (w/Set Screw) 2-1/2 dia. x 1/2,
"V" Groove 5/8 bore, Keyed
*Screw, Type 23, Pan No. 8-32 x 3/8
Cover, Housing
*Screw, Machine Fiat Head No. 10-32
x 1-3/4
Housing, Disc
Shaft, Drwe
Key, Woodruff, No. 9
Key, Woodruff
*Screw, Hex Head 5/16-18 x 1-1/2
* Lockwasher. 5/16
Bracket, Mounting
*Washer. 21/64 x 7/8 x 1/8
Bracket, Table Support
Ring, Retaining 5/8
Bearing, Ball
*Screw, Machine Hex Head 5/16-18 x 1-1/8
Backstop
Pulley, Drive (w/Set Screw)
*Screw, Socket Head Set, 1/4-20
x 5/16
Bearing Ball
Trap, Dust
* Lockwasher No. 10 Int. Tooth
*Screw Mach. Pan Hd. 10-32 x 9/16
Table, Belt
*Washer, 3/8 x 3/4 x 1/16
Nut, Cam
*Screw. Machine Pan Slotted
No. 6-32 x 7/16
Cam, Left Hand
Spring
Cam, Right Hand
Guard, Idler
*Screw, Machine Pan Head
No. 8-32 x 3/8
PARTS LIST
Key Part
No, No.
36 47813
37 60254
38 60253
39 STD601105
40 60255
41 60252
42 STD304410
43 62023
44 47622
45 STD571807
46 38538
47 38536
48 68015
49 47621
50 60096
51 47414
52 68017
53 STD522505
54 STD551125
55 100167
56 STD541250
57 STD523107
68-$ZJ3523322
68016
60 STD541025
61 STD522512
62 38738
63 9414427
65 38539
66 47219
67 68036
68034
68035
Description
tBelt, Sanding
Bracket, Support
Support, Belt Guard
*Screw, Type 23 Pan Head
No. 10-32 x 1/2
"S" Clip
Guard, Belt
IV-Belt, 1/2 x 41"
¢Pulley, (w!Set Screw) 2" Dia. x 1/2
"V" Groove 5/8 Bore
Shaft, Control
Pin, Roll 3/16 x 5/8
Ring, Retaining 5/8
Bearing, Ball
Base
Shaft, Idler
*Wrench Hex.. 5/32
Pulley, Idler
Wrench
*Screw, Machine Pan Head 1/4-20 x 1/2
* Lockwasher. 1/4
*Bolt, Hex. Head. I/2-13 x 4-1/2
"Nut, Hex., I/2-13
Bolt, High Strength, 5/16-18 x 3/4
BoJ_..l_Jgl__18 x 2-1/4
_Support Assembly, Base
*Nut, Hex. 1/4-20
*Screw, Machine Hex. Head, 1/4-20 x1-1/4
Bracket, Table Lock
*Screw, Sems 5/16-18 x 1/2
Hex. Head
Pin
Table, Work
Hanger, Cable
Owner's Manual (Not Illustrated)
Bag of Loose Parts (Not Illustrated)
• Standard Hardware Item - May Be Purchased Locally.
Stock Item - May be secured through the Hardware Department of most Sears or Simpsons-Sears Retail Stores or
Catalog Order Houses.
