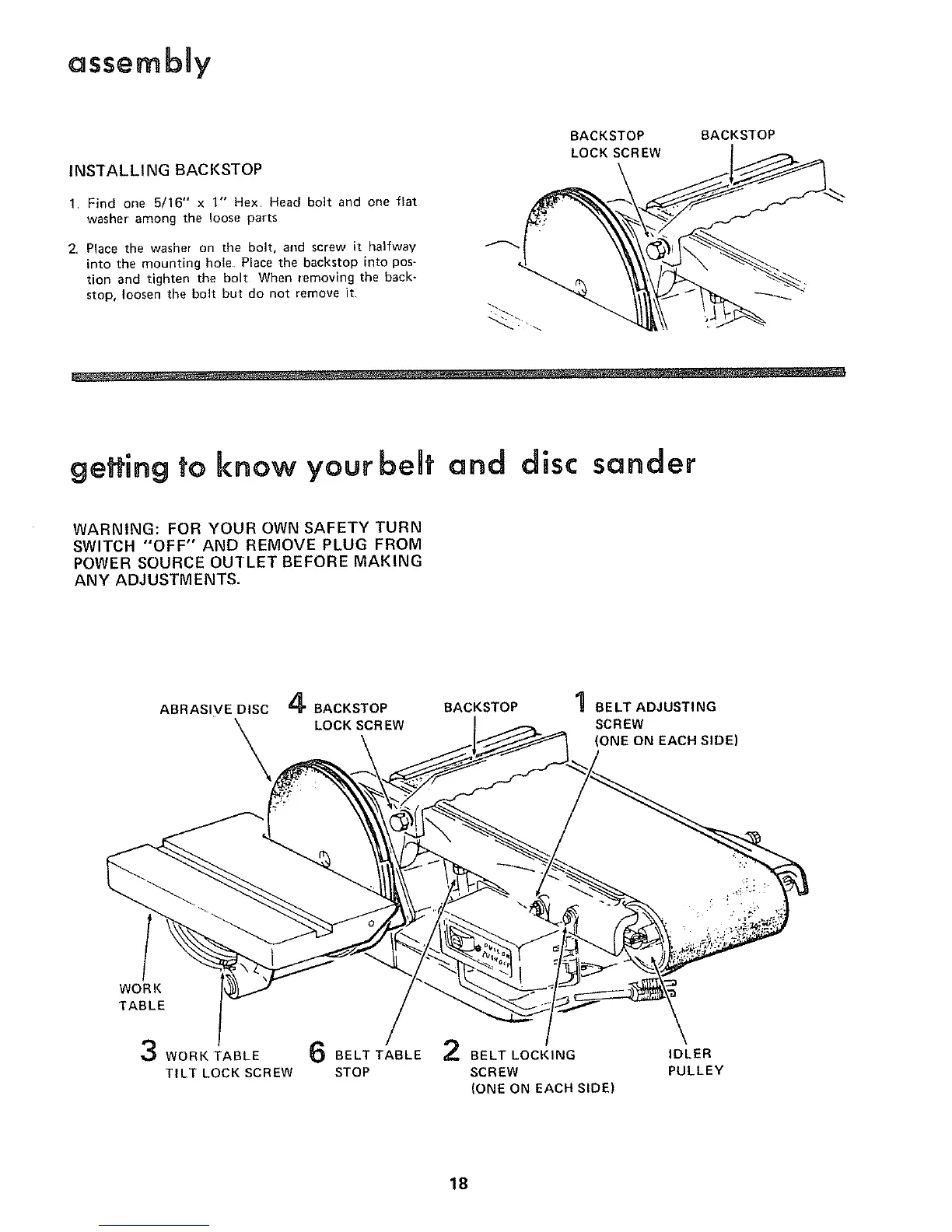

assembay
INSTALLING BACKSTOP
1 Find one 5/16" x 1" Hex. Head bolt and one flat
washer among the loose parts
2, Place the washer on the bolt, and screw it halfway
into the mounting hole Place the backstop into pos-
tion and tighten the bolt When removing the back-
stop, loosen the bolt but do not remove it,
BACKSTOP BACKSTOP
LOCK SCREW
geffing to know your bent and disc sander
WARNING: FOR YOUR OWN SAFETY TURN
SWITCH "OFF" AND REMOVE PLUG FROM
POWER SOURCE OUTLET BEFORE MAKING
ANY ADJUSTMENTS.
ABRASIVE DISC 4 BACKSTOP
LOCK SCREW
BACKSTOP
BELT ADJUSTING
SCREW
(ONE ON EACHSIDE)
WORK
TABLE
3 WORK TABLE 6 BELT TABLE 2 BELT LOCKING
TILT LOCK SCREW STOP SCREW
(ONE ON EACH SIDE)
IDLER
PULLEY
18
