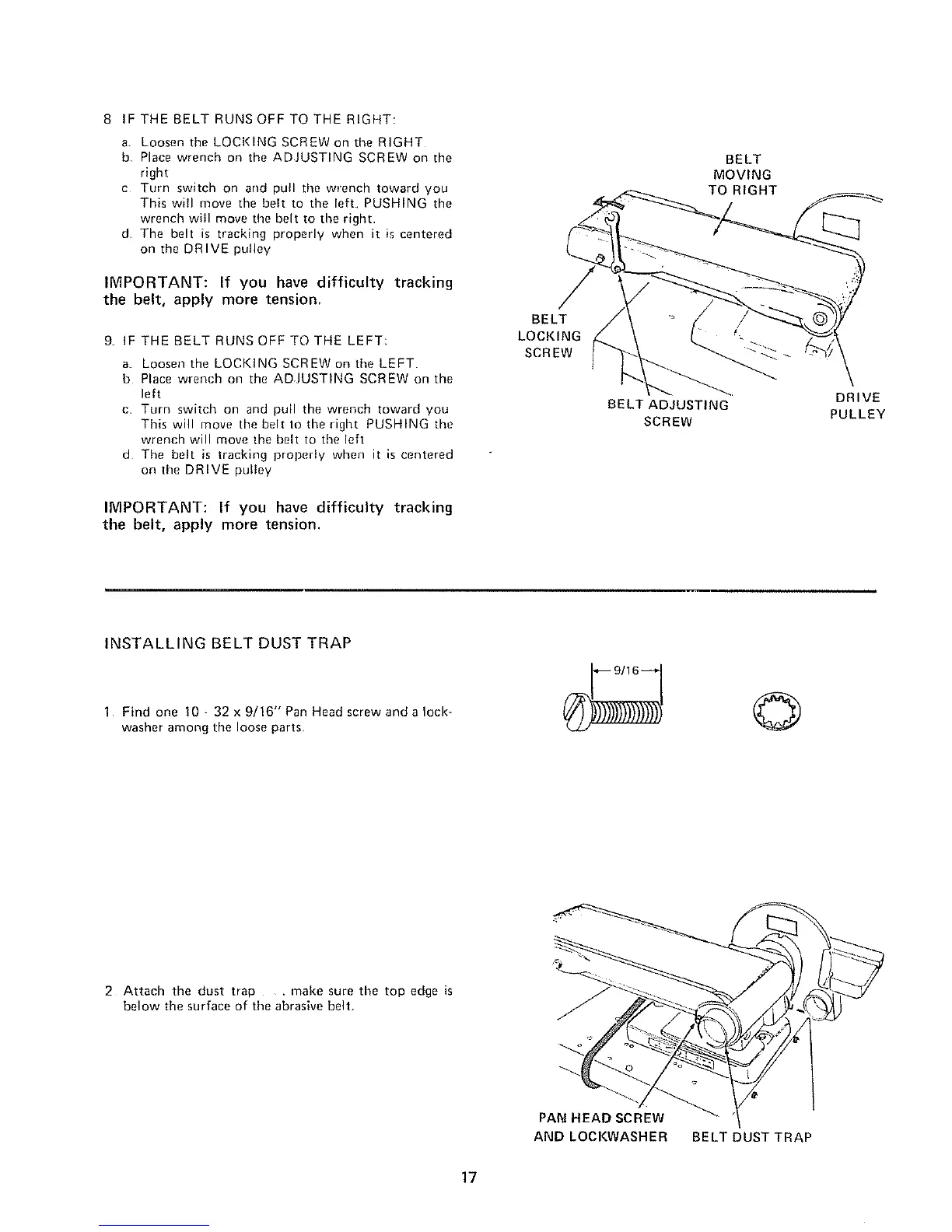

8 IF THE BELT RUNS OFF TO THE RIGHT:
a Loosen the LOCKING SCREW on the RIGHT
b, Place wrench on the ADJUSTING SCREW on the
right
c Torn switch on and pull the wrench toward you
This will move the belt to the left PUSHING the
wrench will move the belt to the right
d The belt is tracking properly when it is centered
on the DRIVE pulley
IMPORTANT: If you have difficulty tracking
the belt, apply more tension,
9 IF THE BELT RUNS OFF TO THE LEFT:
a Looseo the LOCKING SCREW on time LEFT
b Place wrench on the ADJUSTING SCREW on the
left
c Turn switch on and pull the wrench toward you
This will move the belt to the right PUSHING the
wrench will move time belt to time left
d Time belt is tracking properly when it is centered
on time DRIVE pulley
IMPORTANT: If you have difficulty tracking
the belt, apply more tension.
BELT
LOCKING
SCREW
BELT
MOVING
TO RIGHT
BELT ADJUSTING
SCREW
DRIVE
PULLEY
INSTALLING BELT DUST TRAP
1 Find one 10 - 32 x 9/16" Pan Heed screw and a lock-
washer among the loose parts
©
2 Attach the dust trap .... make sure the top edge is
below the surface of the abrasive belt
PAN HEAD SCREW
AND LOCKWASHER BELT DUST TRAP
17
