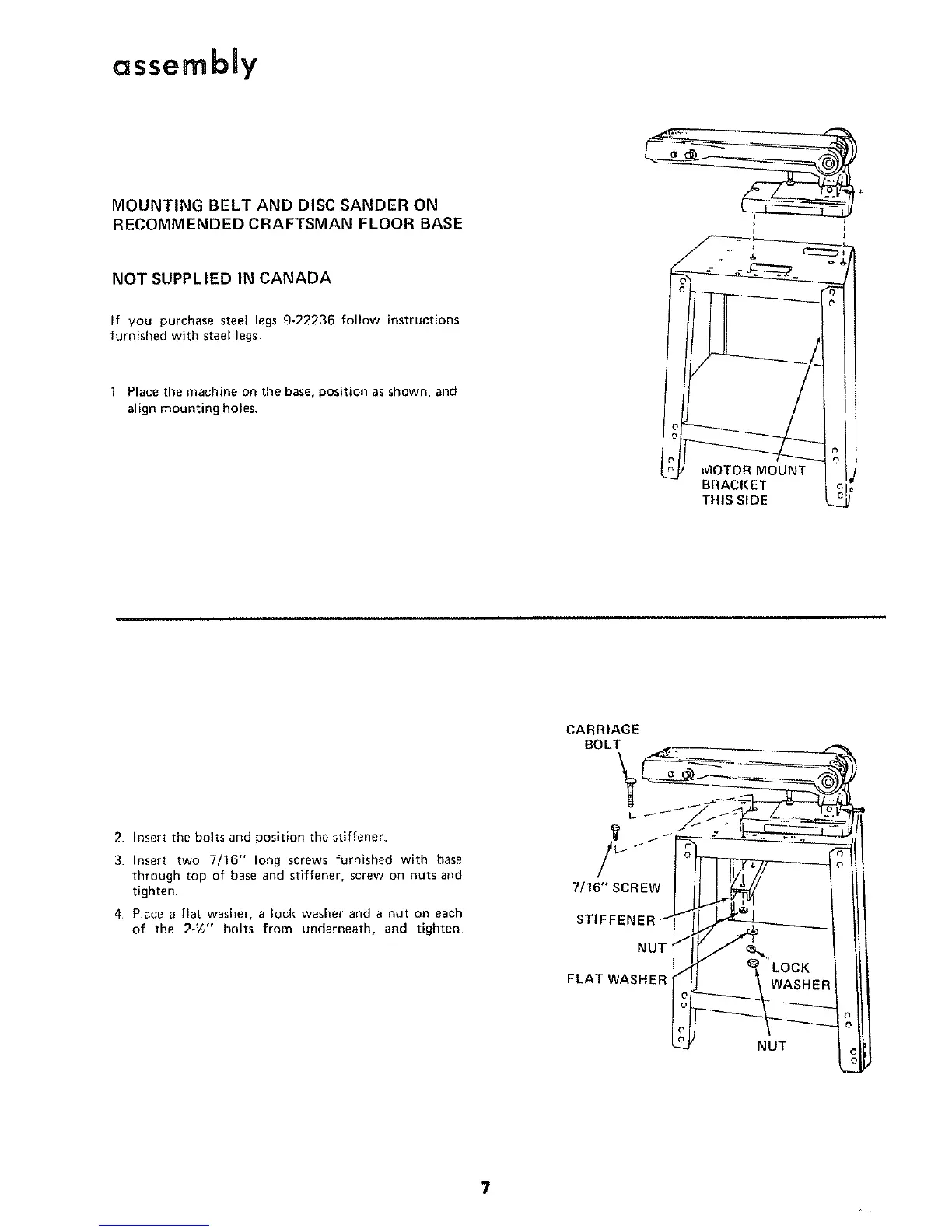

assembly
MOUNTING BELT AND DISC SANDER ON
RECOMMENDED CRAFTSMAN FLOOR BASE
NOT SUPPLIED IN CANADA
If you purchase steel legs 9-22236 follow instructions
furnished with steel legs
Place the machine on the base, position as shown, and
align mounting holes
+
t_J MOTOR MOUNT J
BRACKET L
THIS SIDE L__
CARRIAGE
BOLT
2 Insert the bolts and position the stiffener
3 Insert two 7/16" long screws furnished with base
through top of base and stiffener, screw on nuts and
tighten
4 Place a flat washer, a lock washer and a nut on each
of the 2-1/='' bolts from underneath, and tighten
7/16" SCREW
STIFFENEF
NUT
FLAT WASHER
LOCK
WASHER
NUT
7
