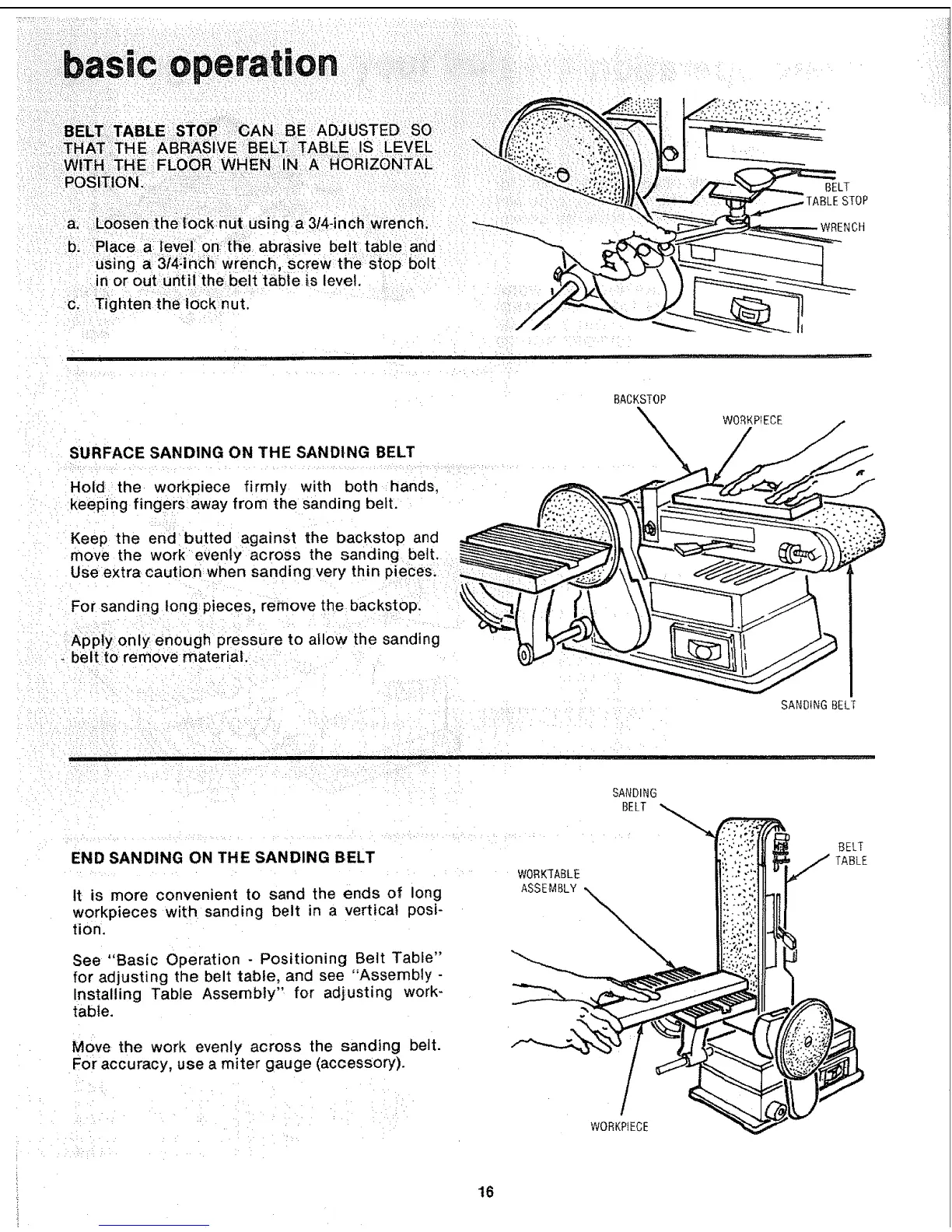

Craftsman 113.226421 - Surface Sanding; Positioning Belt Table

a: Loosen theiocknut using a:3/4-inch wrench:
b. Place a levei on:the abrasive belt table and
using a 314-|nch wrench, screw the stop bolt
in or out until the belt table is level.
c. :Tighten the lOck:nut.
BELT
ABLESTOP
SURFACE SANDING ON THE SANDING BELT
Hold the workpiece firmly with both hands,
keeping fingers away from the sanding belt.
Keep the end butted against the backstop and
move the work evenly across the sanding belt.
Use extra caution when sanding very thin
For sanding long pieces, remove the backstop.
Applyonly enough pressure to allow the sanding
belt:to remove material.
BACKSTOP
WORKP_ECE
SANDINGBELT
END SANDING ON THE SANDING BELT
it is more convenient to sand the ends of long
workpieces with sanding belt in a vertical posi-
tion.
See "Basic Operation - Positioning Belt Table"
for adjusting the belt table, and see "Assembly -
Installing Table Assembly" for adjusting work-
table.
Move
For accu racy,
i
the work evenly across the sanding belt.
use a miter gauge (accessory).
SANDING
BELT
BELTTABLE
WORKTABLE
ASSE MBLY
_._.
.-_
/ ,,
WORKPIECE
