8ssem y

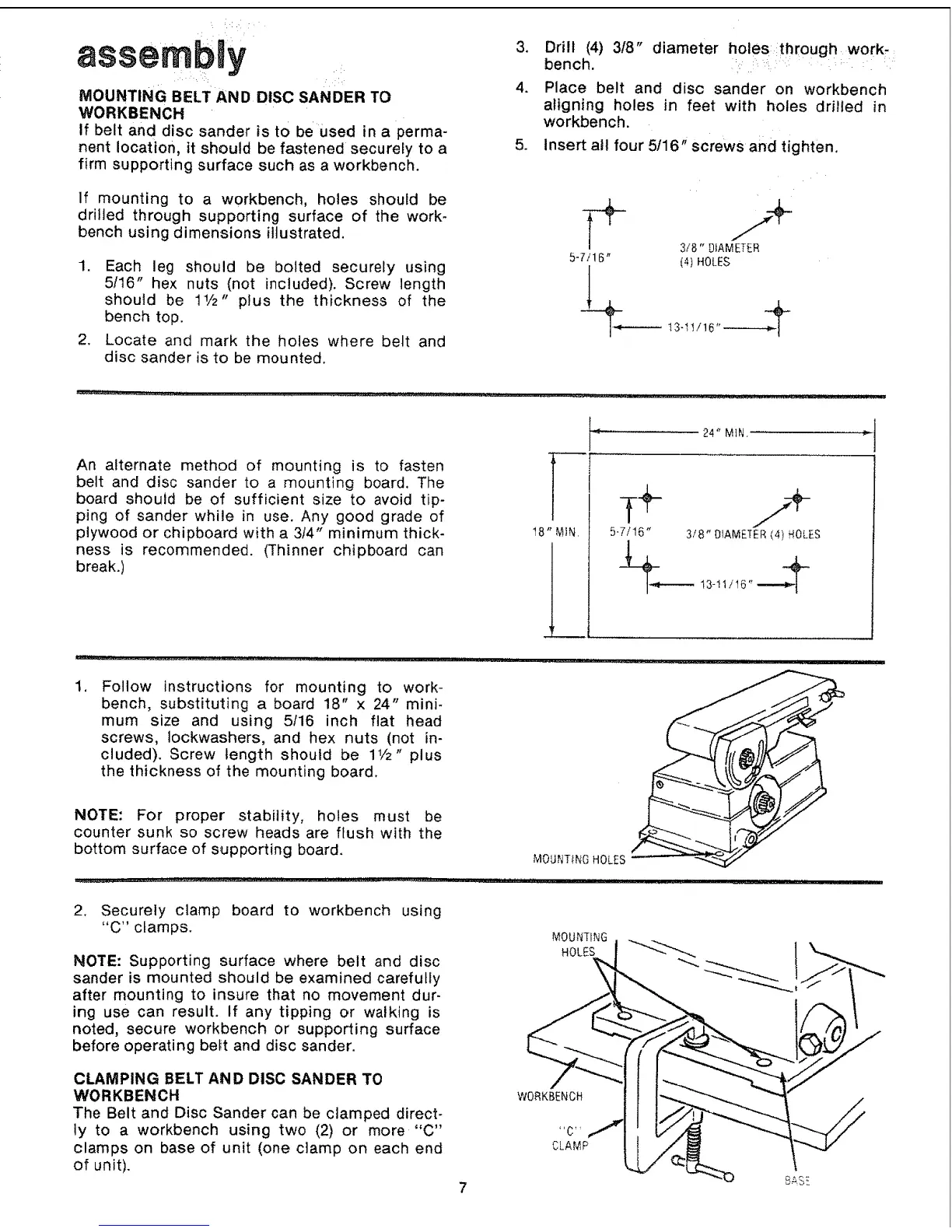

MOUNTING BELT AND DISC SANDER TO
WORKBENCH
If belt and disc sander is to be used in a perma-
nent location, it should be fastened securely to a
firm supporting surface such as a workbench.
If mounting to a workbench, holes should be
drilled through supporting surface of the work-
bench using dimensions illustrated.
.
,
Each leg should be bolted securely using
5/16" hex nuts (not included). Screw length
should be 11/2" plus the thickness of the
bench top.
Locate and mark the holes where belt and
disc sander is to be mounted.
.
4.
,
Drill (4) 318" diameter holes through work,
bench. :' _
Place belt and disc sander on workbench
aligning holes in feet with holes drilled in
workbench.
Insert all four 5116" screws and tighten.
-_ 3/8 " DIAMETE//R'_R+
5-7/16 " (4) HOLES
1
An alternate method of mounting is to fasten
belt and disc sander to a mounting board. The
board should be of sufficient size to avoid tip-
ping of sander while in use. Any good grade of
plywood or chipboard with a 3t4" minimum thick-
ness is recommended. (Thinner chipboard can
break.)
_'_ 24" MIN,
T+- ...-*
5-7t16 " 318" DIAMETER (4) HOLES
,
Follow instructions for mounting to work-
bench, substituting a board 18" x 24" mini-
mum size and using 5t16 inch flat head
screws, Iockwashers, and hex nuts (not in-
cluded). Screw length should be 11/2" plus
the thickness of the mounting board.
NOTE: For proper stability, holes must be
counter sunk so screw heads are flush with the
bottom surface of supporting board.
MOUNTINGHOLES
IB PIll JIl'
2, Securely clamp board to workbench using
"C" clamps.
NOTE: Supporting surface where belt and disc
sander is mounted should be examined carefully
after mounting to insure that no movement dur-
ing use can result. If any tipping or walking is
noted, secure workbench or supporting surface
before operating belt and disc sander.
MOUNrlNG
HOLES
CLAMPING BELT AND DISC SANDER TO
WORKBENCH
The Belt and Disc Sander can be clamped direct-
ly to a workbench using two (2) or more "C"
clamps on base of unit (one clamp on each end
of unit).
WORKBENCH
CLAMP
