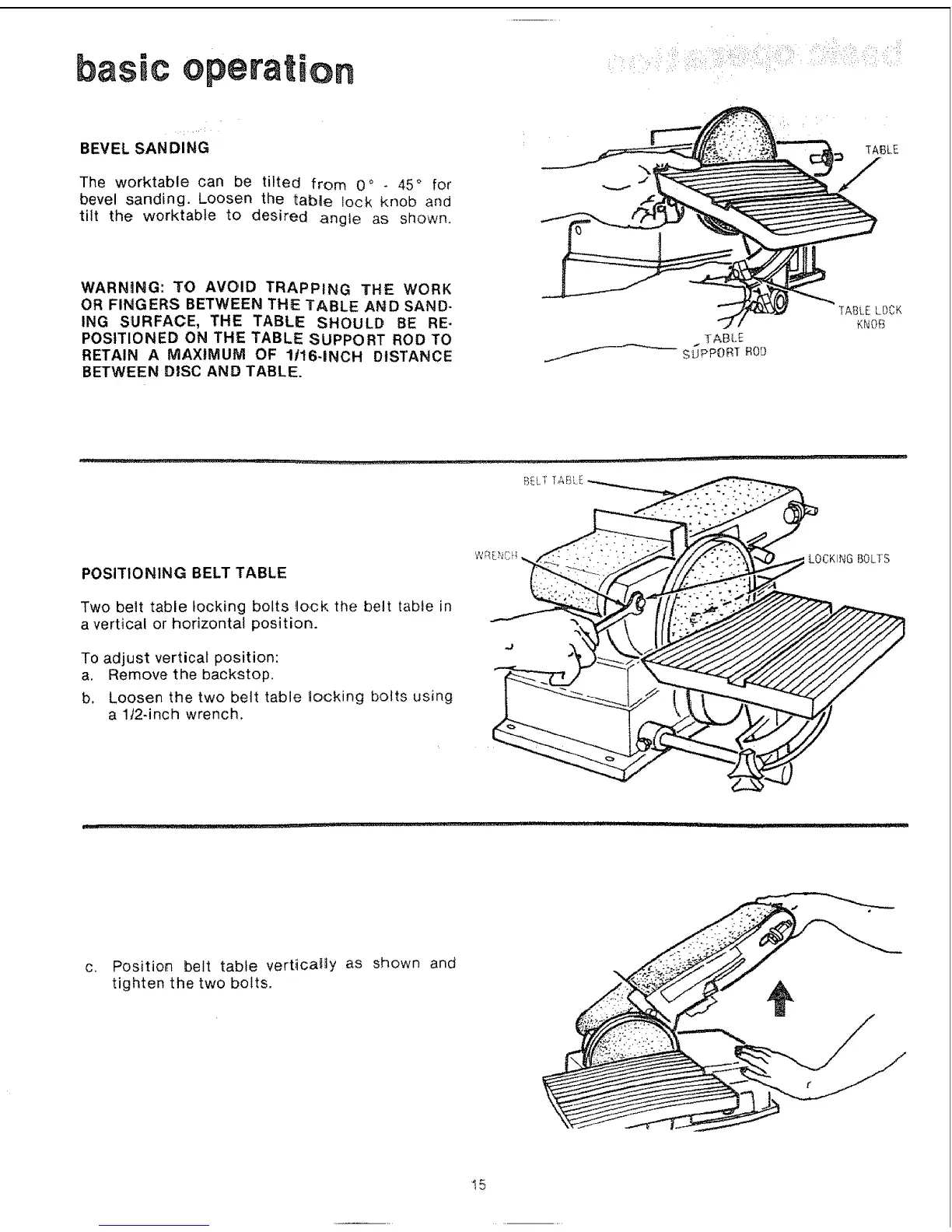

basic
BEVEL SANDING
The worktable can be tilted from 0 ° 45 ° for
bevel sanding. Loosen the table lock knob and
tilt the worktable to desired angle as shown,
WARNING: TO AVOID TRAPPING THE WORK
OR FINGERS BETWEEN THE TABLE AND SAND*
ING SURFACE, THE TABLE SHOULD BE RE-
POSITIONED ON THE TABLE SUPPORT ROD TO
RETAIN A MAXIMUM OF 1t16-|NCH DISTANCE
BETWEEN DISC AND TABLE.
/
., TABLE
SUPPORT ROD
TABLE LOCK
KNOB
POSITIONING BELT TABLE
Two belt table locking bolts lock the belt table in
a vertical or horizontal position.
To adjust vertical position:
a. Remove the backstop,
b. Loosen the two belt table Uocking bolts using
a 1/2-inch wrench+
J
LOCKINGBOLTS
c+ Position belt table vertically as shown and
tighten the two bolts.
15
