Creality CR-10 Series - Device Installation; Install the Gantry Frame; Install the T-Shaped Fixing Block

4

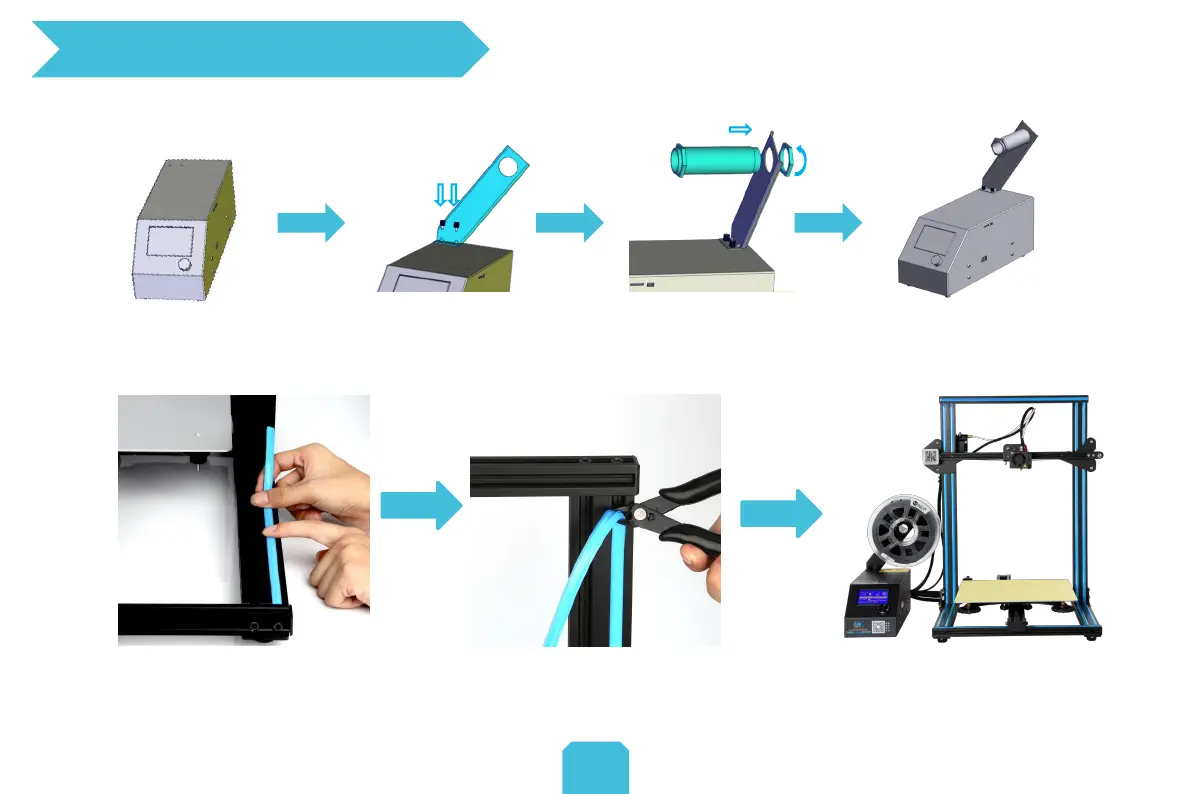

◆ Install the Spool Holder and Bracket
◆ Installation decoration
belt
Attach the Bracket with
two thumb screws.
Attach Spool Holder
with included Nuts
Finished
Installation decoration belt into
the notch, starting from one end.
Cut off the excess material with
the diagonal pliers
Attach the Decorative Trim to all
parts needing to be decorated.
*Installation decoration belt is available in various colors. The pictures above are for reference only.
*CR-10 mini without Decoration Strip.
3.Device Installtion 02
