3. Assembly Procedure

3.4 Equipment Wiring

Caution

●

Please ensure the correct position for the power supply switch and mains

before supply connection, in order to avoid damage to the device.

●

If the mains between 200V and 240V, please select the 230V for the power

supply switch (default is 230V).

●

If the mains between 100V and 120V, please select the 115V for the power

supply switch.

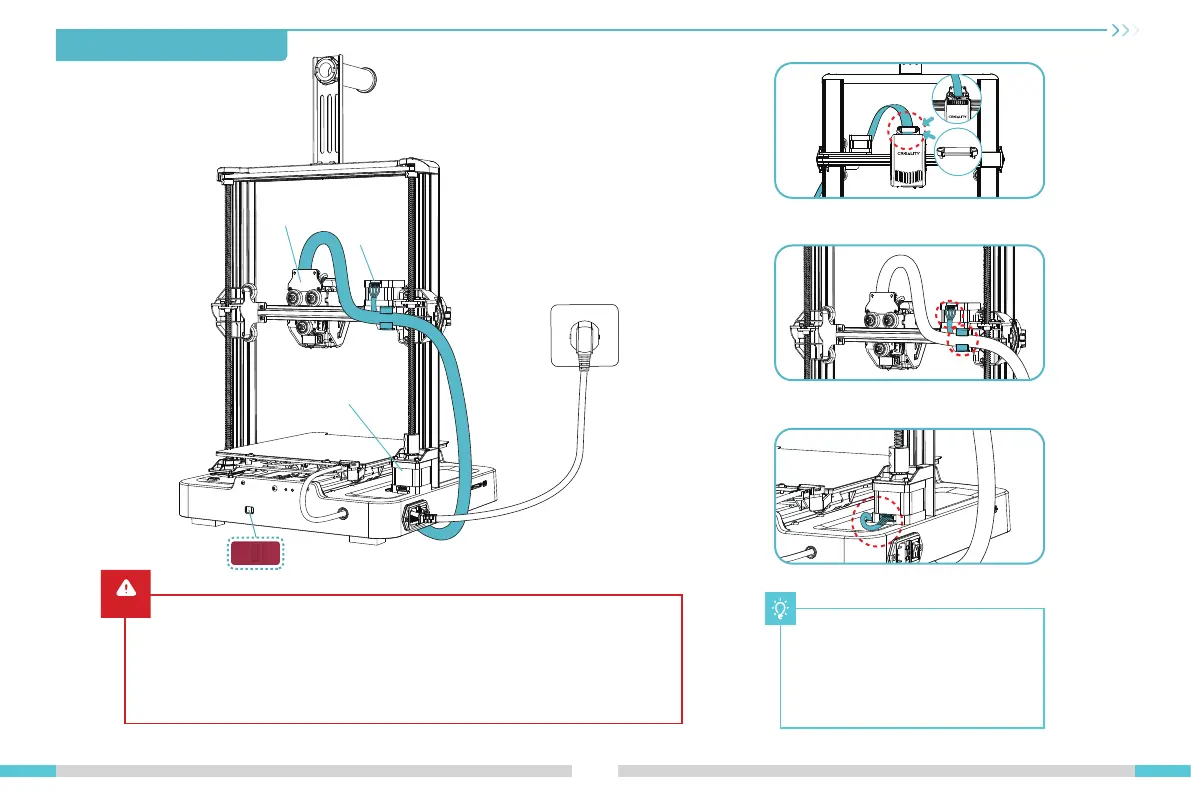

③ Connect the Z-axis motor

④ Switch on the power

Extruder adapter board

X-axis motor

115V

230V

Z-axis motor

Tips:

② Follow the label instructions to secure the

extruder cable into the cable ﬁxing clip before

connecting the X-axis motor;

① First, insert the extruder cable into the extruder

adapter board, then secure it with the FFC ﬁxing

clip assembly;

Please ensure proper wiring according

to the provided diagram and avoid

overturning or folding the extruder

cable, as it may cause printing

abnormalities.
