TPS-2000L 5 Inch Lectern/Wall Mount Touchpanel

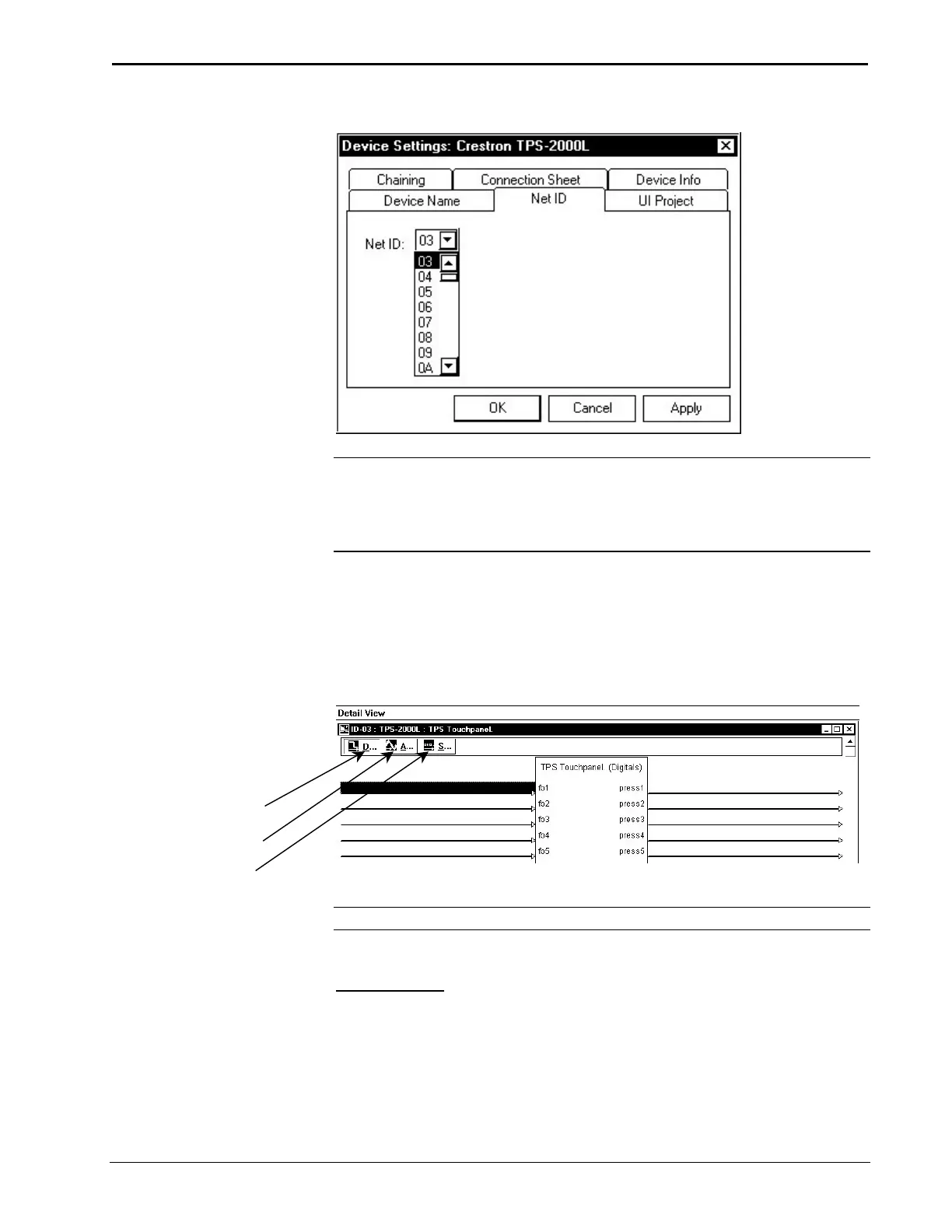

“Device Settings” Window for the TPS-2000L
NOTE: SIMPL Windows automatically changes NET ID values of a device added
to a program if a duplicate device or a device with the same default NET ID already
exists in the program. Always ensure that the hardware and software settings of the
NET ID match. For NET ID hardware settings details, refer to “Interface Menu” on
page 8.
TPS-2000L Symbol in Programming Manager
Programming Manager is where programmers “program” a Creston control system
by assigning signals to symbols. The following diagram shows the TPS-2000L
symbol in the SIMPL Windows’ Programming Manager.
Detail View of the TPS-2000L in SIMPL Windows’ Programming Manager
Digital
Analog
Serial
NOTE: Join numbers are expandable to 4000 digital & analog, 999 serial.
Signal Types
Signals interconnect the various devices and logic symbols that comprise a SIMPL
program. Signals can be one of three types: digital, analog, or serial. For any given
signal, the signal type is determined by its driving source. That is, if the symbol that
drives the signal has an analog output, then, by definition, the connecting signal is
analog.
Operations Guide – DOC. 5972A 5 Inch Lectern/Wall Mount Touchpanel: TPS-2000L • 19
