5 Inch Lectern/Wall Mount Touchpanel Crestron Isys
TPS-2000L
calibration error by touching the screen in an area that is opposite from the instructed
area.

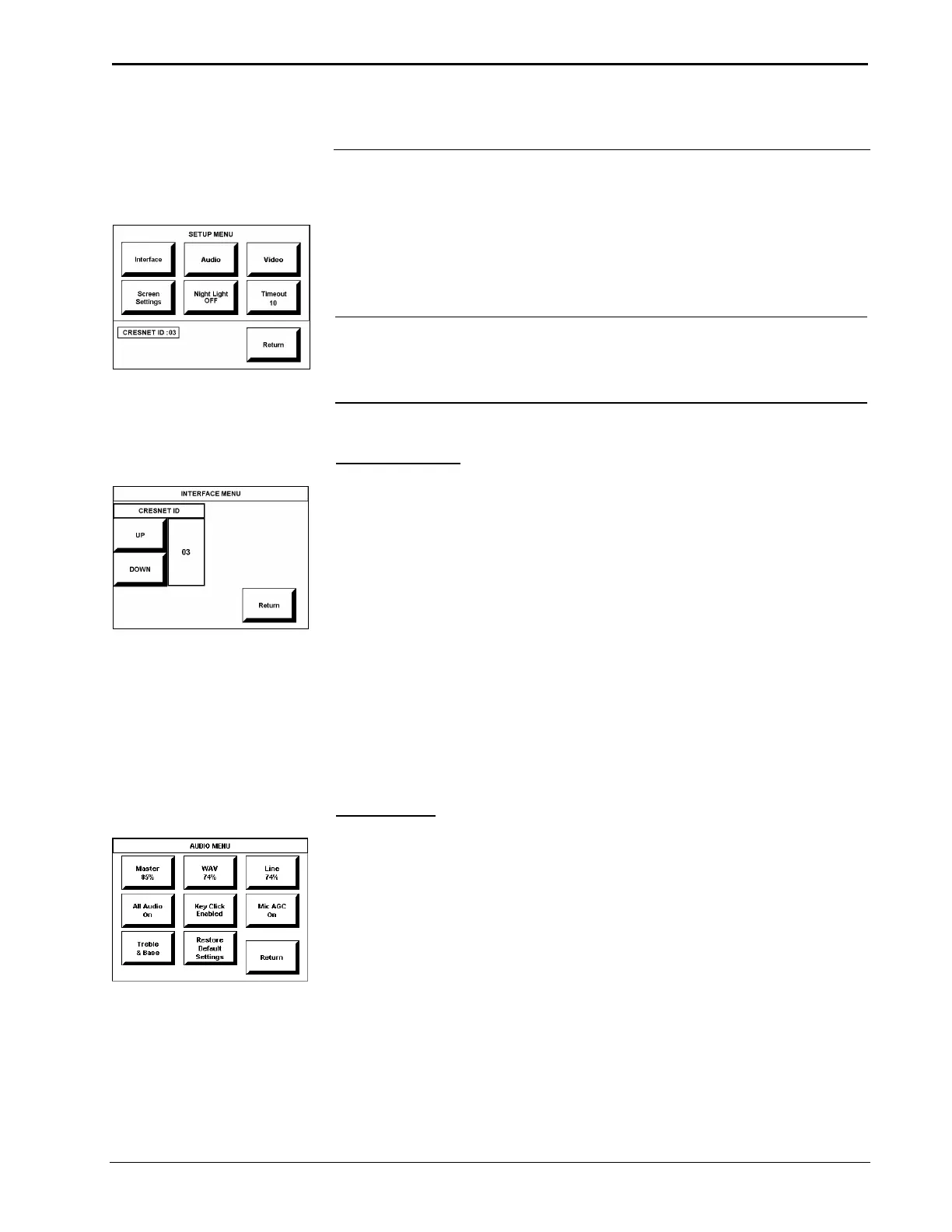

Setup Menu
SETUP MENU
To obtain the SETUP MENU, shown to the left, press the Setup button from the
MAIN MENU. The SETUP MENU offers a series of buttons, which opens
additional menus and displays, which are detailed in subsequent paragraphs. After
setup parameters have been set, select the Return button to return to the MAIN
MENU.
NOTE: For convenience, the current CRESNET ID setting is displayed in the lower
left corner.
NOTE: All touchpanel settings are automatically saved in non-volatile memory.
Interface Menu
INTERFACE MENU
The touchpanel communicates with a control system to activate commands or to
display feedback from components within the system. The communication interface
must be correctly specified or communication will not occur. To set communication
parameters select the Interface
utton located on the SETUP MENU and display the
INTERFACE MENU, shown to the left.
The Cresnet network identity number (CRESNET ID) is displayed on the
INTERFACE MENU. CRESNET ID is the two-digit hexadecimal number. The
hexadecimal number can range from 03 to FE and must correspond to the NET ID
set in the SIMPL Windows program of the Cresnet system. Matching IDs between
touchpanel and SIMPL Windows program is required if data is to be successfully
transferred. NET ID for the TPS-2000L is factory set to 03.
Two buttons adjacent to the hexadecimal display, UP and DOWN, increase and
decrease the CRESNET ID by one, respectively.
Select the Return button located on the INTERFACE MENU to return to the
SETUP MENU.
Audio Menu
AUDIO MENU
Audio is a useful feedback tool and it can be used to enhance a custom interface. To
obtain the AUDIO MENU, shown to the left, press the Audio button from the
SETUP MENU. The AUDIO MENU offers a series of buttons, which opens
additional screens and each is detailed in a table after this paragraph. Two of the
buttons on the AUDIO MENU perform a function directly. The Restore Default
Settings button returns all audio parameters to their default settings when the button
is selected. After audio parameters have been set, select the Return button to return
to the SETUP MENU.
8 • 5 Inch Lectern/Wall Mount Touchpanel: TPS-2000L Operations Guide – DOC. 5972A
